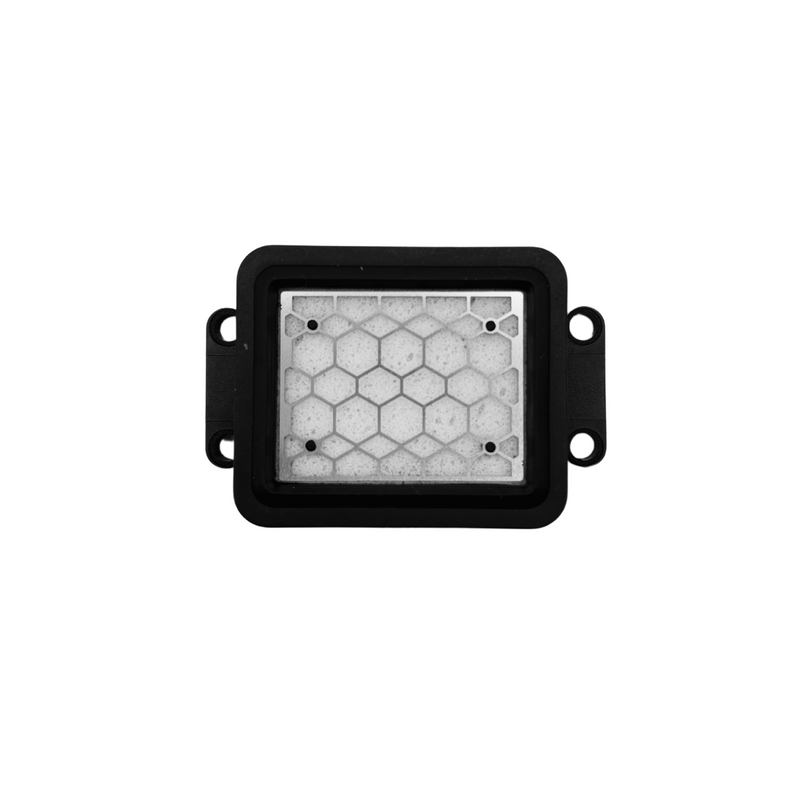

Epson I3200 Printhead Capping Station - Hexagon
In Stock
The Importance of the Epson I3200 Printhead Capping Station
The Epson I3200 Printhead Capping Station is a fundamental component for any high-performance DTF or UV printer. This specific model features a unique Hexagon shape designed for a perfect fit. It serves as the primary docking port for the printhead when the machine is idle. Its main job is to create an airtight seal around the nozzle plate. This seal prevents the ink from drying out and clogging the sensitive channels.
The Role of the Hexagon Design
The Hexagon geometry of this capping station is not just for aesthetics. It is engineered to match the specific footprint of the Epson I3200 series printheads. This precise shape ensures that the rubber gasket aligns perfectly with the edges of the head. A secure fit is vital for maintaining the internal pressure of the ink system. It also facilitates efficient vacuum suction during automated cleaning cycles.
Why an Airtight Seal is Essential
If the capping station fails to create a vacuum, the printhead remains exposed to air. Air exposure leads to rapid ink coagulation, especially with fast-drying DTF inks. A faulty seal can cause "dropped nozzles" where certain colors stop firing entirely. Using a high-quality Hexagon Capping Station protects your most expensive investment. It keeps the atmosphere around the nozzles humid and ready for immediate printing.
Common Signs of Capping Station Failure
You should monitor the condition of your capping station daily. Over time, the rubber gasket can lose its flexibility or become warped. If you notice ink pooling around the base of the station, the seal is likely compromised. Another warning sign is frequent nozzle clogs after the printer sits overnight. This usually indicates that the Epson I3200 head is not being properly sealed during its rest period.
Maintaining Your Capping Station
Regular maintenance is the only way to ensure a long lifespan for your hardware. Ink residue often builds up on the edges of the Hexagon seal. This buildup prevents a flat contact point with the printhead. You should use professional UV DTF Cleaning Supplies to wipe the gasket daily. Always use lint-free swabs to avoid leaving fibers behind. Fibers on the capping station can easily migrate into the printhead and cause permanent blockages.
The Vacuum Suction Process
During a "Head Clean" command, the printer uses a pump attached to the capping station. This pump creates a vacuum that pulls fresh ink through the nozzles. The Hexagon design helps distribute this suction force evenly across the entire nozzle plate. This ensures that all colors are flushed consistently. If the station is cracked or the tubes are blocked, this suction power will drop significantly.
Compatibility and Installation
The Epson I3200 Hexagon Capping Station is compatible with various industrial DTF and UV-LED printers. It is often found in machines using the I3200-A1 (water-based) or I3200-U1 (UV-curable) heads. Installation is straightforward but requires precision. You must ensure the drainage tubes are connected securely to the waste ink pump. A loose connection can lead to messy leaks inside the printer's internal carriage area.
Environmental Impacts on the Gasket
The rubber material of the capping station is sensitive to its environment. High temperatures can cause the gasket to soften and deform. Conversely, very dry air can cause the rubber to crack. Maintaining a controlled humidity level in your print shop helps the Hexagon seal stay supple. Using specialized Supplies with rubber conditioners can also help extend the life of the station.
When to Replace Your Capping Station
Most professional operators replace their capping station every 6 to 12 months. This is considered a "consumable" part in high-volume production environments. Even if it looks clean, the rubber eventually loses its structural integrity. Replacing the Epson Capping Station proactively is much cheaper than replacing a ruined printhead. It is a small price to pay for consistent, retail-quality output.
Conclusion: A Small Part with a Big Job
The success of your printing business depends on the health of your printhead. The I3200 Printhead Capping Station - Hexagon is the first line of defense against clogs. By ensuring a perfect seal and maintaining cleanliness, you minimize downtime. A well-maintained capping system results in smoother production and higher profit margins.
