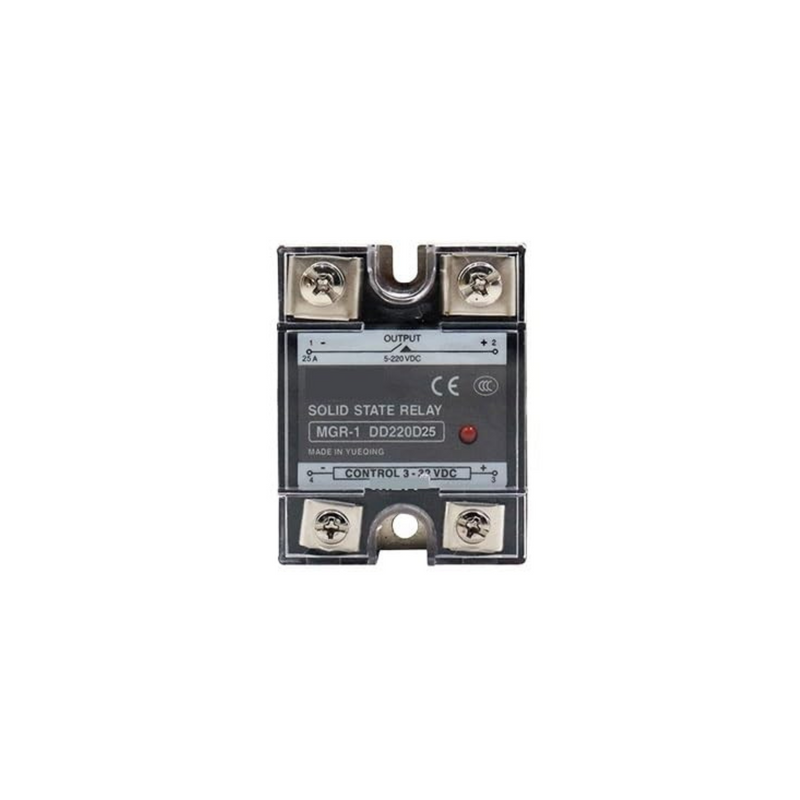

What is the Solid State Relay MGR DD220D25?

The Solid State Relay (SSR) MGR DD220D25 is a high-performance electronic switching device. Unlike traditional mechanical relays, it has no moving parts. This makes it faster, quieter, and significantly more durable. It is primarily used to control high-power DC loads using a low-power DC input signal.

In industrial settings, especially within the DTF printing and heat press industry, reliability is key. The MGR DD220D25 ensures that your heating elements and motors receive consistent power. Because it uses semi-conductor technology, it eliminates the risk of "contact sparking," which is common in older relay types.

Technical Specifications of MGR DD220D25

Understanding the technical limits of your relay is crucial for machine safety. This model is designed for heavy-duty performance and precise control.

• Model Type: DC to DC (DD) Solid State Relay.

• Load Current: Rated for up to 25 Amperes.

• Load Voltage: Capable of handling up to 220V DC.

• Control Voltage: Typically triggered by a 3-32V DC signal.

• Switching Speed: Near-instantaneous response time (milliseconds).

• Isolation: High dielectric strength to protect control circuits.

Why Use an SSR in DTF and Heat Press Machines?

Heat management is the most important part of any garment decoration business. The MGR DD220D25 plays a vital role in maintaining the exact temperatures required for quality transfers.

Precise Temperature Control

Heat presses need to stay at a specific degree. Because an SSR can switch on and off thousands of times per hour without wearing out, it can maintain much tighter temperature tolerances than a mechanical switch.

Long Operational Life

Since there are no physical contacts to arc or corrode, an SSR can last for millions of cycles. This reduces the frequency of repairs and keeps your production line moving without interruption.

Silent and Efficient

In a busy workshop, reducing noise is a huge benefit. The MGR DD220D25 operates silently. It also generates less electromagnetic interference (EMI), which protects your printer’s sensitive mainboards.

Installation and Safety Best Practices

To get the most out of your MGR DD220D25, proper installation is required. Solid state relays generate heat during operation, which must be managed.

1. Use a Heat Sink: Always mount the SSR on a dedicated aluminum heat sink. This prevents the internal semi-conductors from overheating and failing.

2. Thermal Paste: Apply a thin layer of thermal grease between the relay and the heat sink for maximum heat transfer.

3. Check Polarity: Since this is a DC-to-DC relay, ensure that the positive and negative terminals are connected correctly for both the input and output.

4. Ventilation: Ensure there is adequate airflow within the machine's control cabinet.

Common Applications

The versatility of the MGR DD220D25 makes it a favorite among technicians and DIY machine builders.

• Heating Elements: Controlling the resistive heaters in heat presses and curing ovens.

• DC Motors: Managing the speed or activation of pumps and shakers.

• Industrial Automation: Serving as an interface between a PLC (Programmable Logic Controller) and a high-power load.

• LED Systems: Controlling large-scale high-voltage DC lighting arrays.

Secure Your Production with Quality Parts

A failed relay can lead to ruined garments or, worse, a damaged machine. Investing in high-quality electronic components like the MGR DD220D25 is an investment in your business’s future. At Fast DTF Supply, we provide the reliable parts that professional printers trust.
