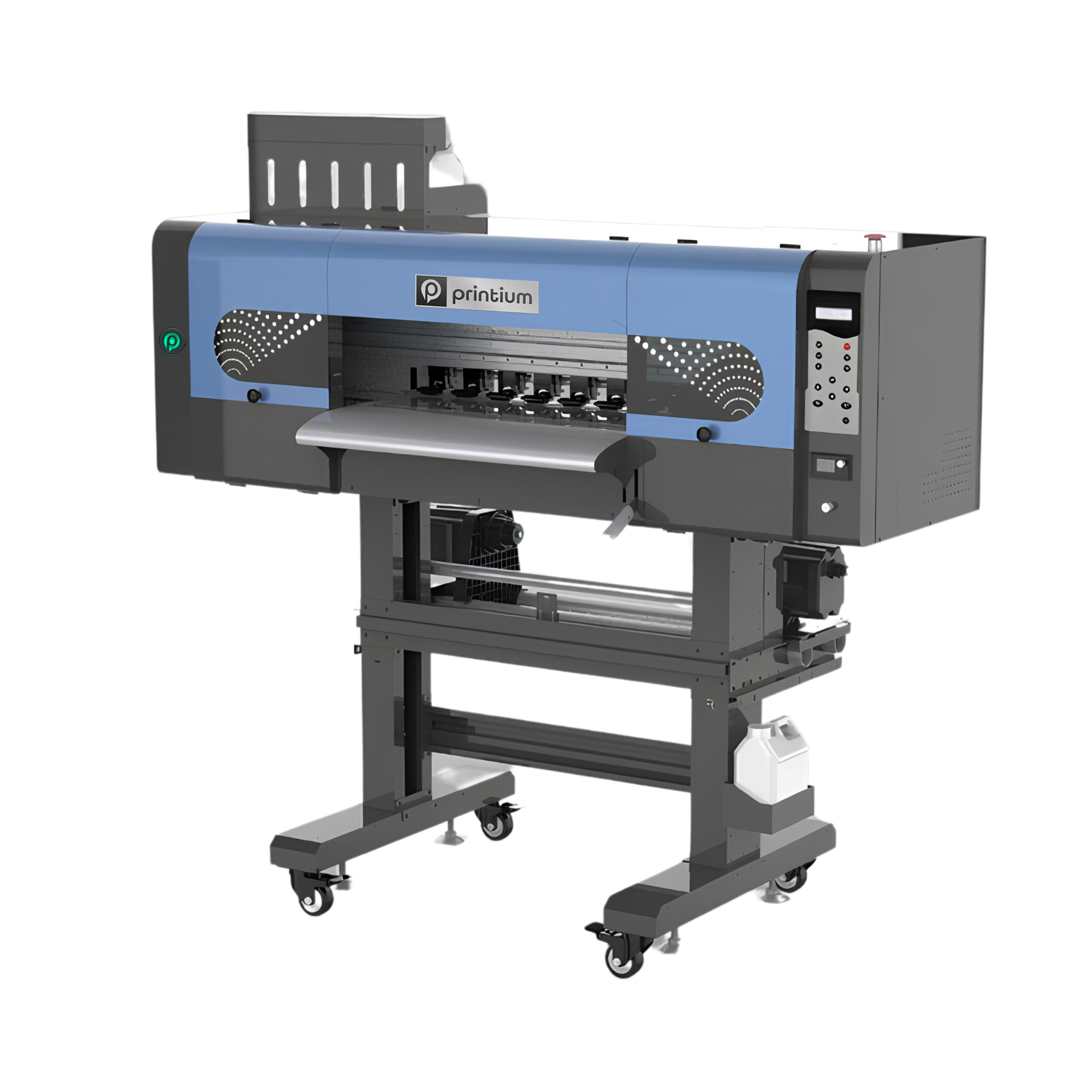

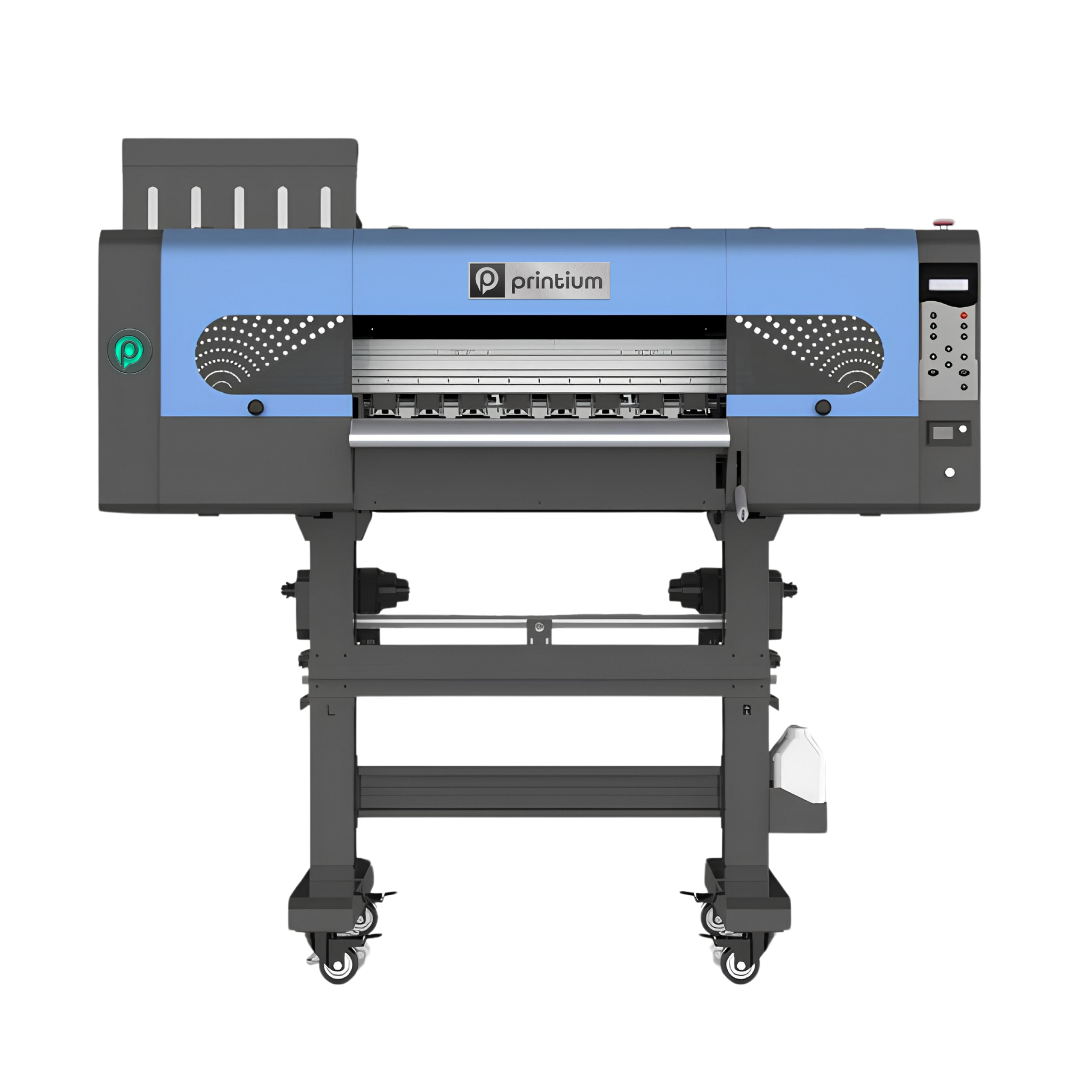

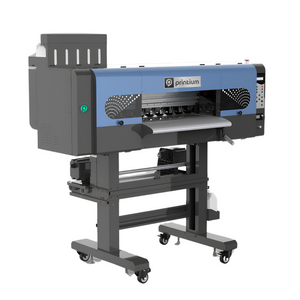

DTF Printer Head - P604 - 24" 4

Maximizing Performance with the DTF Printer Head - P604 - 24" 4

The heart of any digital printing system is the printhead. For industrial-scale Direct to Film production, the DTF Printer Head P604 model stands out as a top-tier choice. This specific 24-inch, 4-head configuration is designed for businesses that prioritize speed without compromising on detail. It is engineered to handle the high viscosity of DTF inks while maintaining precision at high velocities. Whether you are running a high-volume garment shop or a specialized print service, the P604 provides the reliability you need. This guide explores the technical advantages and maintenance requirements of this powerful printhead assembly.

The Power of the 4-Head Configuration

The "4-Head" designation in the P604 model refers to its quad-array setup. In a standard printer, a single head must manage all color and white layers. The DTF Printer Head P604 splits this workload across four dedicated units.

This arrangement allows for a much wider "pass" during each movement of the carriage. While the first two heads apply the CMYK color layers, the following heads lay down the thick white ink base. This simultaneous processing significantly increases the square meters produced per hour. It turns a standard 24-inch printer into a high-speed production engine. For businesses with tight deadlines, this configuration is a game-changer for throughput.

Precision Engineering for 24-Inch Wide Printing

Wide-format printing requires extreme mechanical stability. The P604 DTF Printer Head is built to maintain accuracy across the entire 24-inch (60cm) span. Every nozzle is precisely aligned to ensure that the CMYK and White layers overlap perfectly.

If the alignment is off by even a fraction of a millimeter, the print will show "white edges" or blurred details. The P604 utilizes advanced piezo-electric technology to control droplet size. It can produce variable drops, which allows for smooth gradients and sharp text. This precision is essential when printing intricate logos or high-definition photographs. Your customers will notice the professional "retail-ready" quality of every transfer.

Optimized for DTF Ink Viscosity

DTF inks, particularly white ink, are much thicker than standard inkjet inks. They contain titanium dioxide, which can be abrasive and prone to settling. The DTF Printer Head P604 is specifically designed to handle these challenges.

The internal channels of the P604 are widened to allow for a smoother ink flow. This reduces the mechanical stress on the head during high-speed operation. The materials used in the nozzle plate are resistant to the chemical solvents found in DTF fluids. This prevents the "corrosion" that often kills standard heads used in DTF conversions. By using a head built for the task, you enjoy a much longer hardware lifespan.

Advanced Cooling and Thermal Management

Continuous printing generates heat within the printhead's electronic circuits. If a head gets too hot, the ink consistency changes, leading to "clogging" or "deflection." The P604 DTF Printer Head features an integrated thermal management system.

It dissipates heat effectively, keeping the ink at a stable temperature. This ensures that the first meter of film looks exactly like the hundredth meter. Stability is the key to maintaining color consistency across large orders. You won't have to stop for "head cleanings" as often, which saves both time and ink. A cool-running head is a reliable head in a 24/7 production environment.

Reducing Nozzle Clogging and Maintenance

Nozzle health is the most common concern for DTF operators. The P604 model includes specialized anti-clogging features to keep the ink moving. Its nozzle plate is treated with a unique non-stick coating.

This coating prevents stray ink droplets from building up and drying around the openings. When combined with a high-quality capping station, the P604 stays "wet" and ready for use. Even after a short period of idle time, a simple "soft clean" is usually enough to restore perfect flow. This reliability reduces the frustration of morning startups. It allows your team to focus on production rather than troubleshooting.

Impact on Color Vibrancy and White Opacity

The quality of a DTF transfer depends on the thickness of the white ink. The P604 DTF Printer Head is capable of firing larger droplets for the white base. This results in a very opaque, solid white layer that blocks the garment color from showing through.

At the same time, the CMYK heads deliver vibrant, saturated colors on top of that base. The combination creates a "pop" that makes your designs stand out. Whether you are printing on black polyester or bright cotton, the P604 ensures the colors stay true. This high-density output is what gives DTF prints their famous durability and wash resistance.

Durability and Long-Term Value

Investing in a 4-head system is a significant commitment. The P604 DTF Printer Head justifies this cost through its long-term durability. It is constructed from industrial-grade components that withstand millions of pulses.

When maintained correctly, these heads can last for years of consistent service. The P604 is also designed for easier "individual replacement." If one head in the array fails, you can often replace it without discarding the entire carriage setup. This modular approach lowers the long-term cost of ownership for your business. It provides a sustainable path for scaling your printing operations.

Integration with High-Speed Rip Software

To get the most out of the P604, you need the right software. This DTF Printer Head is compatible with leading RIP (Raster Image Processor) programs. The software tells the four heads exactly when to fire to maximize speed and quality.

You can customize the ink limits and "dot patterns" to suit different films and powders. The P604 responds instantly to these digital commands, allowing for real-time adjustments. This synergy between hardware and software is what enables professional-grade 24-inch printing. It gives you total control over the finished product’s look and feel.

Installation and Calibration Best Practices

Installing a P604 DTF Printer Head should be done with care. It requires precise physical leveling and electronic calibration. Ensure that the data cables are seated perfectly to avoid electrical shorts.

Once installed, a "nozzle check" and "head alignment" are mandatory. Use the printer’s built-in sensors to calibrate the "Bi-Directional" settings. This ensures the heads fire accurately as the carriage moves in both directions. Proper calibration prevents "banding" and ensures smooth solid fills. A well-calibrated P604 is the secret to flawless wide-format transfers.

Essential Maintenance for P604 Owners

Even the best printhead needs daily care. You should perform a nozzle check at the start and end of every shift. Use specialized cleaning swabs to keep the edges of the P604 clean.

Never touch the nozzle plate with your fingers or a rough cloth. Always ensure your ink tanks are full to prevent air from entering the lines. If you plan to leave the printer idle for more than two days, use a "wet cap" procedure. These simple steps protect the microscopic nozzles from drying out. Good maintenance habits turn a great printhead into a lifelong business asset.

Conclusion: The Ultimate Production Upgrade

The DTF Printer Head P604 - 24" 4 is a powerhouse for the modern garment decorator. It offers the perfect blend of speed, precision, and industrial durability. By utilizing four heads, it doubles your production capacity and ensures consistent quality.

Whether you are printing small neck labels or full-back graphics, the P604 delivers excellence. It is the ideal choice for shops looking to move beyond entry-level equipment. Upgrade your 24-inch system with the P604 and watch your production efficiency soar. A professional printhead is the foundation of a professional and profitable DTF business.
