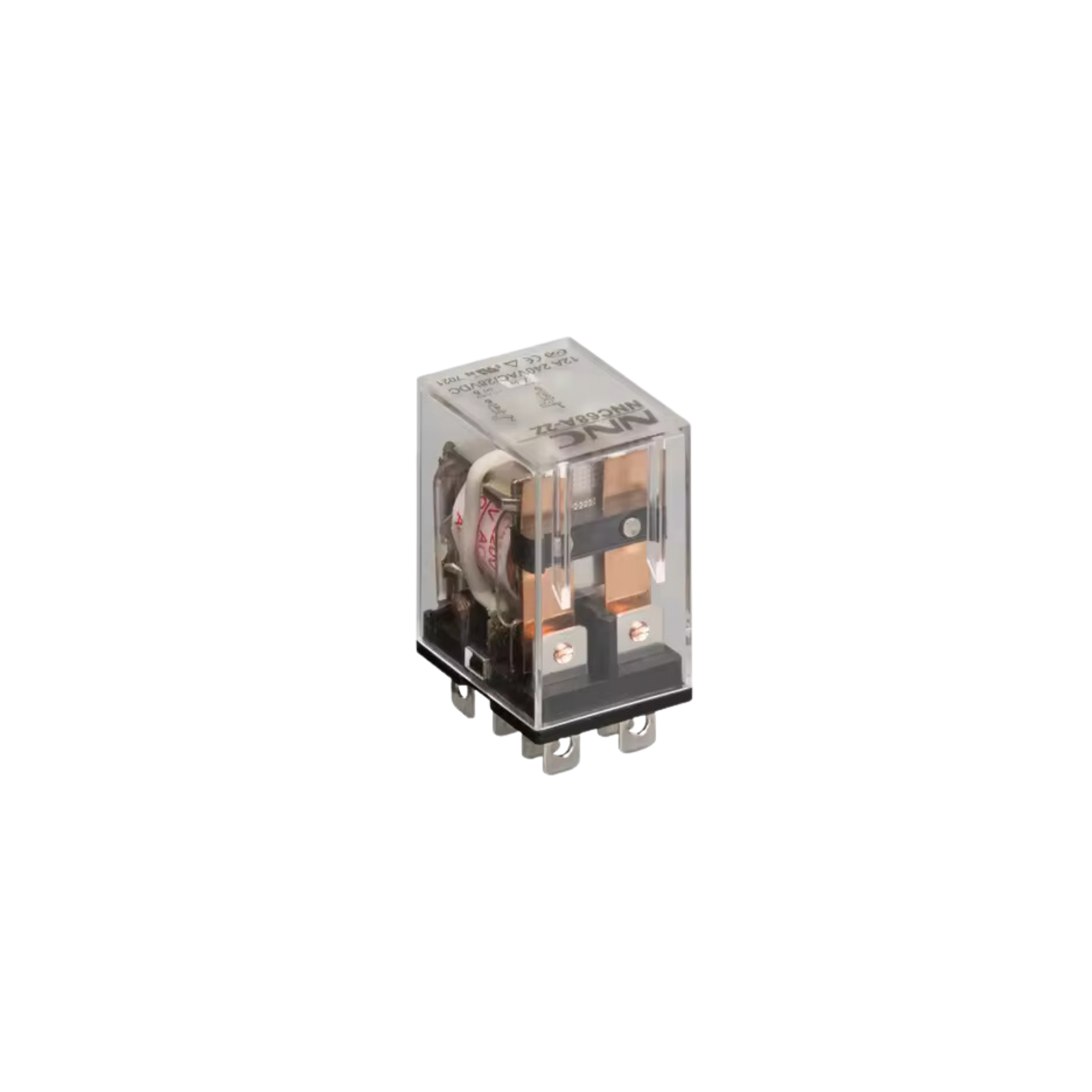

Electromagnetic Relay

The Essential Component for Industrial Automation Electromagnetic Relay

An Electromagnetic Relay is a fundamental device in the world of electrical engineering and automation. It acts as a bridge between low-power control signals and high-power electrical circuits. This simple yet highly effective component allows a small amount of electricity to switch a much larger current safely. In modern manufacturing and home electronics, these relays provide the necessary isolation to protect sensitive controllers. This guide explores the internal workings, diverse applications, and critical benefits of using a high-quality relay in your electrical systems.

How an Electromagnetic Relay Works

Understanding the basic physics behind an Electromagnetic Relay helps in choosing the right one for your project. The device operates on the principle of electromagnetism discovered in the early 19th century.

The Core Components Every standard relay consists of an induction coil, an armature, a spring, and a set of contacts. When an electric current flows through the coil, it creates a magnetic field. This magnetic force pulls the movable armature toward the stationary core. As the armature moves, it forces the electrical contacts to touch or separate. This action either completes or breaks the secondary circuit.

The Power of Isolation One major advantage of an Electromagnetic Relay is electrical isolation. The control circuit and the load circuit are physically separated. There is no direct electrical connection between the low-voltage trigger and the high-voltage output. This protects microcontrollers, like those found in DTF printers or CNC machines, from power surges. If a fault occurs in the heavy machinery, the relay prevents that surge from traveling back to the expensive control board.

Key Types of Electromagnetic Relays

Not all relays are built for the same task. Selecting the correct Electromagnetic Relay depends on your specific voltage and current requirements.

• General Purpose Relays: These are the most common types used in commercial applications. They are designed for simple on-off switching in heating, lighting, and cooling systems.

• Latching Relays: This specific type maintains its position even after the power is removed from the coil. It is ideal for applications where energy efficiency is a priority, as it only requires power during the actual switching moment.

• Power Relays: These are heavy-duty versions of the standard Electromagnetic Relay. They are built with robust contacts capable of handling very high currents, such as those found in industrial motors or large curing ovens.

Critical Benefits for Industrial Systems

Reliability is the most important factor in any industrial production environment. An Electromagnetic Relay offers several unique benefits that make it superior to other switching methods in specific scenarios.

Durability in Harsh Environments Industrial settings are often filled with dust, vibrations, and temperature fluctuations. A high-quality Electromagnetic Relay is designed to function reliably in these tough conditions. The mechanical nature of the contacts allows them to handle brief spikes in voltage that might destroy solid-state electronics. This ruggedness ensures that your production line keeps moving without frequent interruptions.

Versatile Switching Capabilities A single Electromagnetic Relay can control multiple circuits simultaneously. For example, a "Double Pole Double Throw" (DPDT) relay can switch two separate loads at the same time. This versatility allows engineers to simplify their wiring diagrams. It reduces the number of components needed in a control panel, which lowers both cost and complexity.

Applications in Modern Technology

You can find an Electromagnetic Relay in almost every automated system today. Their ability to handle different types of loads makes them indispensable.

Manufacturing and DTF Equipment In the world of professional printing, precision is key. Relays are used to control the heating elements in shaker-dryers and the vacuum motors in large format printers. An Electromagnetic Relay ensures that the heat turns on and off exactly when the sensors detect the film. This level of control is what prevents the film from burning and ensures a perfect cure.

Automotive and Transportation Vehicles use dozens of relays to manage high-current devices like headlights, fuel pumps, and cooling fans. By using an Relay, car manufacturers can use thin wires and small switches on the dashboard to control heavy loads under the hood. This reduces the weight of the vehicle and increases overall safety by keeping high current away from the driver.

Maintenance and Longevity Tips

While an Relay is built for millions of cycles, it still requires basic care to ensure long-term performance.

1. Contact Inspection: Over time, the repeated opening and closing of contacts can cause small sparks. This lead to carbon buildup or "pitting" on the surface. Periodically check for discoloration on the contact points.

2. Voltage Stability: Ensure the coil receives the correct rated voltage. Under-voltage can cause the relay to "chatter," which leads to rapid wear. Over-voltage can overheat the coil and melt the internal insulation.

3. Dust Protection: Use relays with transparent plastic covers when working in dusty environments. This prevents debris from getting stuck between the contacts, which could cause a failure to connect.

Why Quality Components Matter

Choosing a cheap, unbranded Relay can be a costly mistake. Poorly manufactured relays often use inferior metals for their contacts. This leads to higher resistance, excessive heat, and premature failure. A premium relay uses silver or gold-plated contacts to ensure low resistance and high conductivity. Investing in a trusted brand protects your equipment and prevents expensive production downtime.

Conclusion

The Relay remains a cornerstone of electrical design. It provides a simple, reliable, and safe way to control power in various industries. From the small circuits in a desktop printer to the massive motors in a factory, these devices perform their duty millions of times without fail. By understanding how they work and how to maintain them, you can build systems that are both efficient and durable. Whether you are repairing a machine or designing a new product, always prioritize high-quality relays for the best results.
