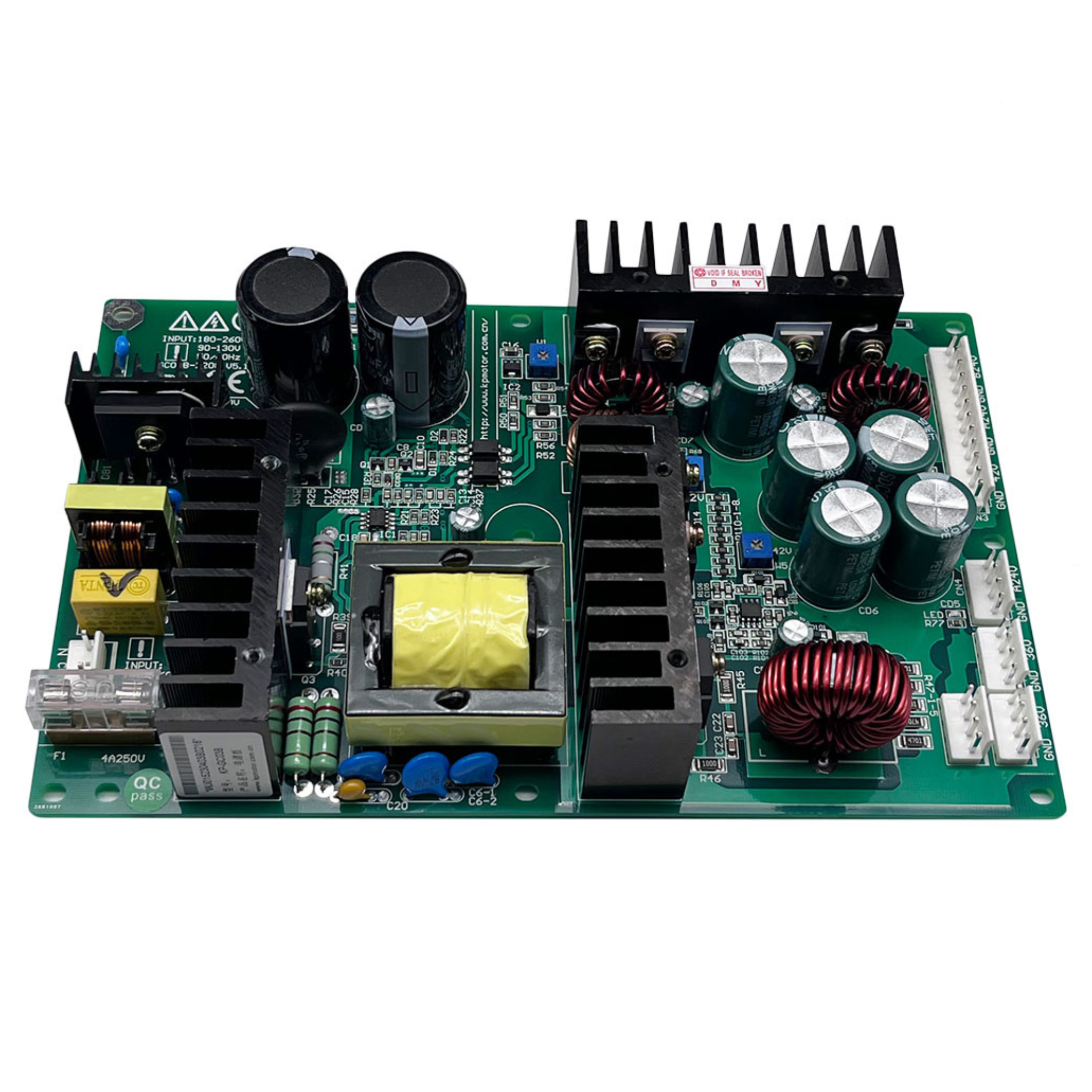

Power Board for 24inch Epson I3200 Printhead Printer

The Power Hub of Digital Printing Epson I3200 Power Board

In the world of digital printing, continuity is just as vital as speed and quality. The fundamental hardware ensuring this continuity is the Epson I3200 Power Board (24"). The performance of a printer depends less on how advanced the printhead is and more on how clean and stable the energy supplied to that head remains. Specially developed for 24-inch (60 cm) wide printers, this power board is the main hub managing the entire electrical load of the system. In this guide, we will detail why a power board is more than just a component and its direct impact on printing quality.

What is a Power Supply and How Does It Work?

The Power Supply is the unit that converts the 220V or 110V alternating current (AC) from the grid into the low-voltage direct current (DC) required by the printer's electronic components. However, this process is not merely a simple conversion.

The printhead, motors, sensors, and mainboard all require different voltage values. The Power Supply distributes this energy precisely in the amount needed by each component, purified from electrical noise. I3200 head technology relies on sensitive piezo crystals that fire thousands of times per second. For these piezo crystals to function perfectly, stability at the millivolt level is required. A high-quality power board guarantees consistency in printing by providing this stability.

The Relationship Between Epson I3200 Head Health and Energy

Epson I3200 heads are known for their industrial durability and high resolution. However, the greatest enemy of these heads is irregular voltage flow. The Power Supply keeps the voltage going to the head under constant supervision.

Even the smallest fluctuation in energy flow can cause the sensitive circuits inside the head to overheat and eventually burn out. High-quality capacitors on the power board filter these fluctuations, sending only "clean" energy to the head. Clean energy means the head runs cooler and maintains high performance for a longer period. Protecting a printhead worth thousands of dollars starts with a high-quality power board.

Optimized Power Distribution for 24-Inch Systems

24-inch (60 cm) wide printers are commonly used in DTF, UV, or eco-solvent printing processes. The stepper motors and vacuum systems used in machines of this size can make sudden energy draws during printing.

The Power Supply is designed to react to these sudden load changes. For example, when the printhead carriage begins to move rapidly, the current drawn by the motors increases. The power board compensates for this increase within milliseconds, preventing the mainboard or the head from experiencing a voltage drop. This optimization prevents shifts and hardware locks during printing, offering an uninterrupted production process.

Advanced Protection Modules: The System's Insurance

Sudden surges in the electrical grid or technical faults in the building can be fatal for your printer. The Power Supply features multi-layered safety circuits to protect the system from these risks:

• Short Circuit Protection: The board cuts power immediately if a short circuit occurs in the system.

• Overload Protection: The board protects itself when the machine tries to draw more current than its capacity.

• High Voltage Filter: It absorbs sudden peaks from the grid, preventing them from reaching sensitive electronics.

These protection features protect not only the power board but also the most expensive parts of the printer: the mainboard and the I3200 printhead. Using a faulty or low-quality power board means putting the entire system at risk.

Preventing Electronic Interference in Print Quality

Many users attribute banding issues solely to head clogging. However, another significant cause is "electronic noise." If the power board is not of high enough quality, interference spreads through the system along with the electric current.

The Power Supply features isolation layers that minimize this noise. A clean signal flow ensures that head trigger timing is maintained with millisecond precision. Consequently, color transitions are smoother, details are sharper, and the print surface is more uniform. For businesses seeking professional printing results, a stable power source is a basic requirement.

Heat Management and Durable Component Selection

Power boards naturally generate heat while converting energy. A high-quality Power Supply features large heat sink blocks and thermal paths to dissipate this heat.

Circuit elements on the board are selected as industrial-grade types resistant to high temperatures, such as 105°C. This extends the board's life, especially in hot working environments or during long-term (24/7) production. Since no resistance changes occur due to heating, voltage outputs always remain constant. Durable components ensure the board operates with the same stability for years, reducing your spare part costs.

Easy Installation and Wide Compatibility

Most 24-inch Epson I3200-based printers use standard connector structures. The Power Supply features socket inlets fully compatible with these standards.

It has an organized layout that prevents cable clutter during installation. Informative markings and LED indicators on the board make it easy to understand which line is active or if there is a problem. This user-friendly structure speeds up technical service interventions and reduces machine downtime. It can be integrated into the system with an ease close to plug-and-play.

Why Choose an Original and High-Quality Power Board?

Cheap and unbranded power boards available on the market may seem like a saving at first glance, but they cause significant costs in the long run. The voltage tolerances of these boards are very wide, meaning outputs fluctuate constantly.

Using a high-quality Power Supply can extend the life of your printhead by at least 30-40%. It also ensures that the processors and memories on the printer's mainboard function more healthily. Stable energy ensures that digital data is transferred without corruption, which prevents printing errors and annoying warnings like "communication error."

Energy Efficiency and Operating Costs

Modern power boards now operate much more efficiently. The Power Supply offers the same performance with lower power consumption.

Efficient energy conversion prevents electricity from being wasted as heat and reflects positively on your electricity bills. Considering that dozens of machines might operate in an industrial facility, this energy efficiency turns into significant economic gain. High-quality power boards, being both eco-friendly and economical, are indispensable for modern businesses.

Conclusion: The Safe Harbor of Your Production

The most important thing in a digital printing machine is knowing that when you press the button every morning, the machine will open without issues. The Power Supply is the cornerstone of this trust.

Do not compromise on power management to protect your printhead, increase your color quality, and minimize your downtime. A high-quality power board does not just distribute electricity; it also distributes the production quality and speed of your business. If you sense electrical issues in your machine or are setting up a new system, guarantee your future by choosing the best energy solution.
