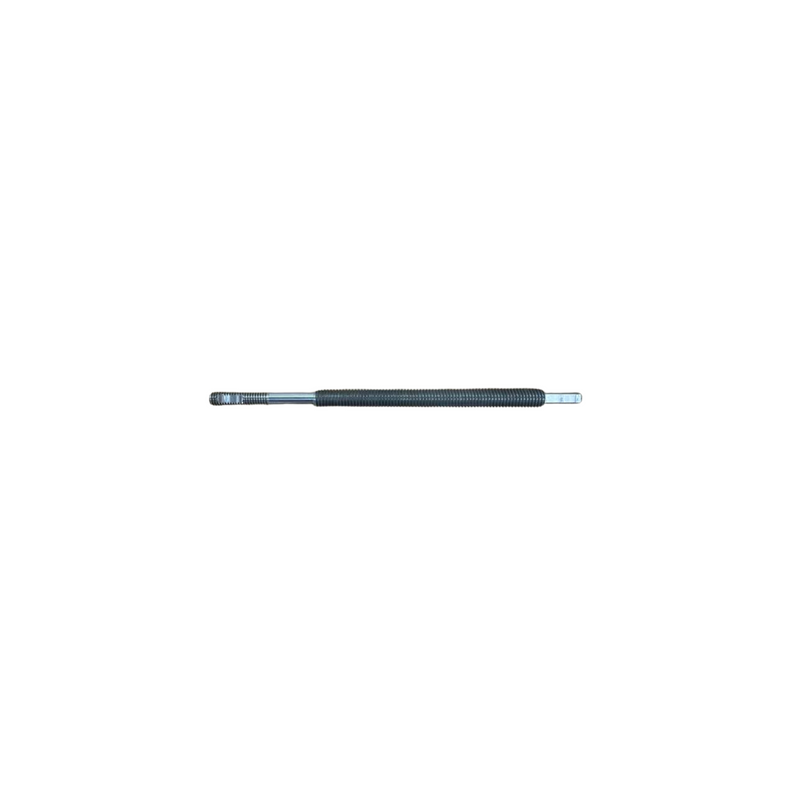

The Engineering Precision of the Threaded Rod for Printhead Platform
The Threaded Rod for Printhead Platform is a fundamental mechanical component in high-resolution digital printers. It is the primary drive mechanism responsible for the vertical (Z-axis) movement of the carriage. This rod allows the printer to adjust the distance between the nozzles and the media with extreme accuracy. In the world of DTF and UV printing, this distance is measured in fractions of a millimeter. A high-quality rod ensures that this gap remains consistent across the entire printing area.
How the Threaded Rod Controls Printing Height
The Threaded Rod works by converting the rotational motion of a stepper motor into linear lift. As the motor turns the rod, a matching brass or plastic nut travels along the threads. This movement raises or lowers the entire printhead platform. This adjustment is critical when switching between thin films and thick garments or rigid substrates. If the rod is bent or poorly manufactured, the platform will tilt or wobble. This leads to uneven ink distribution and blurry edges on your designs.
Understanding Pitch and Lead Accuracy
The "pitch" of a Threaded Rod refers to the distance between individual thread peaks. For a Printhead Platform, a fine pitch is usually preferred to allow for microscopic adjustments. The "lead" is the linear distance the platform travels in one full 360-degree rotation. High-precision rods are machined with a very low tolerance for error. This ensures that a 1.5mm adjustment in your software translates to exactly 1.5mm of physical movement. Consistency here is what allows for repeatable results on every Valentine’s Day project.
Material Quality: Stainless Steel vs. Carbon Steel
Most professional-grade rods are manufactured from high-grade stainless steel. This material is chosen for its incredible resistance to corrosion and wear. In a print shop, ink mist and high humidity can cause standard steel to rust quickly. Rust on a Threaded Rod creates friction and can seize the movement entirely. Stainless steel stays smooth and clean, even after thousands of height adjustments. It also provides the structural rigidity needed to support the weight of industrial printhead assemblies.
The Importance of the Lead Screw Nut
The Threaded Rod does not work alone; it relies on a high-quality lead screw nut. This nut is often made from "anti-backlash" materials like brass or specialized POM plastic. Backlash occurs when there is a tiny gap between the threads of the rod and the nut. This gap causes the platform to "drop" slightly when the motor stops. An anti-backlash system uses a spring-loaded mechanism to eliminate this play. This ensures that the Printhead Platform stays locked in its exact position during vibration.
Common Signs of a Damaged Threaded Rod
A damaged or worn rod will quickly manifest as "stepping" or "banding" in your vertical alignment. You might hear a high-pitched squeak or a grinding noise during height adjustments. If you notice that one side of your print is sharper than the other, the rod may be slightly bent. Physical debris, like dried ink or adhesive powder, can also get trapped in the threads. This causes the motor to skip steps, leading to a "Carriage Height Error" on your printer’s control panel.
Maintenance: Lubrication is the Key to Longevity
The Threaded Rod for Printhead Platform requires a thin layer of specialized lubricant to function correctly. You should never use heavy grease or WD-40, as these attract dust and create a sticky sludge. Instead, use a dry PTFE-based lubricant or a high-quality sewing machine oil. Apply the lubricant sparingly to the threads and run the platform up and down several times. This distributes the oil evenly and flushes out any microscopic particles of Supplies or dust.
Protecting Your Printhead from Collisions
The accuracy of the Z-axis rod is your best defense against "head strikes." A head strike occurs when the printhead hits the substrate because the height was not adjusted correctly. If the Threaded Rod is slipping, the platform may drift downward during a long print job. This can cause permanent damage to the nozzle plate of an Epson I3200 or similar head. Regularly checking the tightness of the rod’s coupling to the motor is a vital safety habit for every operator.
Installation and Alignment Procedures
Replacing a Lead Screw is a precise task that requires careful alignment. The rod must be perfectly perpendicular to the printer’s base. If it is installed at even a slight angle, it will create "binding" at certain points along the travel path. This binding puts immense strain on the stepper motor and can lead to driver burnout. After installation, always use a digital caliper to verify the height at all four corners of the platform. Leveling is the foundation of professional-grade printing.
The Role of the Rod in UV-LED Printing
In UV printing, height control is even more critical due to the focus of the curing lamps. The UV light must hit the ink at a specific focal length to ensure a complete cure. If the Lead Screw fails to maintain a steady height, the ink may stay tacky or peel off. A stable Printhead Platform ensures that the UV lamps stay at the optimal distance from the media. This leads to a more durable UV DTF Transfer with a professional, high-gloss finish.
Conclusion: Smooth Motion for Sharp Results
The Lead Screw for Printhead Platform may seem like a simple piece of hardware, but it is a pillar of precision. It provides the stability and accuracy needed to handle diverse printing materials. By choosing a high-quality stainless steel rod and maintaining it with the right lubricants, you protect your machine's most sensitive parts. Consistent Z-axis movement is the secret to sharp details and reliable production. Invest in quality hardware to keep your printing business moving in the right direction.
