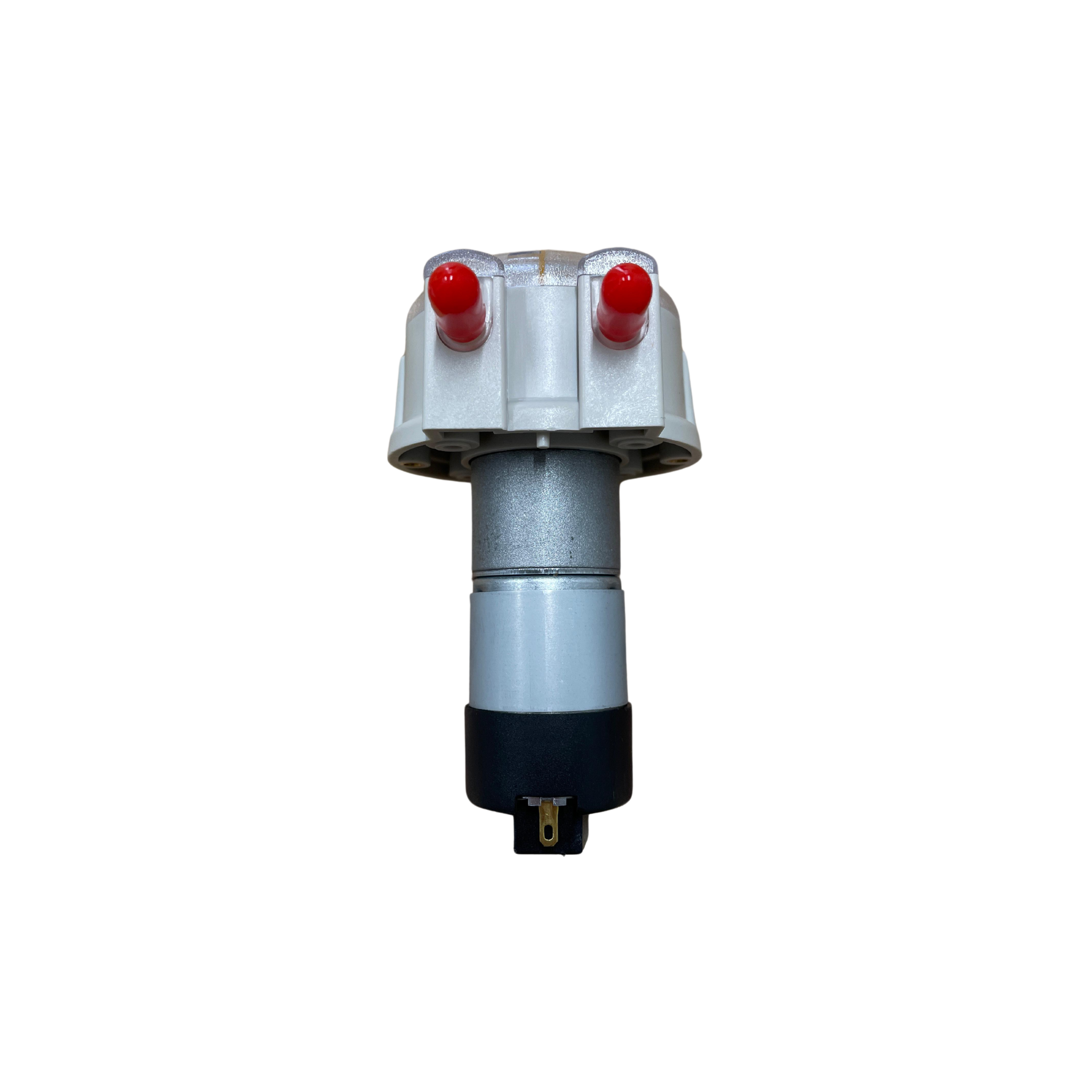

White Ink Circulation Pump
In Stock
The Critical Role of the White Ink Circulation Pump
The White Ink Circulation Pump is the heartbeat of any professional DTF printing system. Its primary mission is to keep white pigments in constant motion. Unlike CMYK colors, white ink contains heavy titanium dioxide particles. These particles are prone to settling at the bottom of tanks and tubes. If the ink stays still, it becomes thick and clumpy. This sedimentation is the leading cause of terminal printhead clogs. A high-quality circulation pump prevents this disaster by ensuring a 24/7 fluid flow.
How the White Ink Circulation Pump Works
The Circulation Pump operates on a simple but effective mechanical principle. It is usually a diaphragm or peristaltic pump designed for chemical resistance. The pump pulls ink from the main reservoir and pushes it through the delivery lines. It often loops the ink back into the tank after it passes near the dampers. This continuous "looping" action keeps the pigment suspension perfectly uniform. This mechanical agitation is far more effective than manual shaking by an operator.
Preventing Sedimentation and Clogging
In the world of DTF printing, white ink is the most difficult fluid to manage. When titanium dioxide settles, it creates a "sludge" that is nearly impossible to flush. This sludge can block the microscopic nozzles of an Epson I3200 or XP600 printhead. The White Ink Circulation Pump eliminates the "stagnant zones" within the printer’s plumbing. By keeping the ink moving, the pump ensures that every drop remains at the correct viscosity. This is the secret to achieving a smooth, opaque white base on every garment.
Improving Print Quality and Opacity
The opacity of your white underbase determines the vibrancy of your colors. If the white ink is not well-mixed, the base layer will look "watery" or translucent. This leads to dull colors on dark fabrics like black hoodies or navy t-shirts. A functioning Circulation Pump ensures that the pigment concentration is consistent. This consistency allows for a solid, bright white layer that makes your CMYK colors pop. High-quality output is essential for high-end Valentine’s Day or corporate apparel projects.
Advanced Timing and Control Features
Most modern White Ink Circulation Pumps are connected to an intelligent timer. This allows the pump to activate even when the printer is in standby mode. For example, the pump might run for 10 minutes every hour. This "sleep-mode" circulation is vital for shops that do not print every day. It ensures that the ink is ready for production the moment you turn the machine on. This automation reduces the need for long, wasteful "initial charges" or head cleanings.
Durability and Chemical Compatibility
White ink can be quite abrasive due to the nature of the white pigments. Therefore, the Circulation Pump must be manufactured from specialized industrial polymers. These materials are resistant to the solvents and binders found in DTF inks. High-quality pumps feature "long-life" motors designed for thousands of hours of operation. Choosing a durable pump reduces the risk of leaks inside your printer's electronics cabinet. Reliability at the pump level translates to uptime for your entire business.
Reducing Waste and Maintenance Costs
Without a Circulation Pump, operators are often forced to perform frequent "Power Cleans." These cleaning cycles waste a significant amount of expensive white ink. Over time, the cost of wasted ink can exceed the price of the printer itself. An automated circulation system pays for itself by reducing the frequency of head cleanings. It also extends the life of your dampers and capping station. By protecting your most expensive Supplies, the pump acts as a financial safeguard for your shop.
Installation: Fitting and Tubing Requirements
The White Ink Circulation Pump is typically installed between the main tank and the secondary ink station. It uses standard 4x3mm or 3x2mm solvent-resistant tubing. When installing a replacement pump, ensure the flow direction matches the arrows on the housing. Using "Y" or "T" connectors allows you to split the flow across multiple printhead channels. Secure all connections with small zip ties to prevent air leaks. Air in the circulation line can cause foam, which interferes with print quality.
Troubleshooting Common Pump Issues
Like any mechanical part, the Circulation Pump requires occasional inspection. If you notice that the white ink looks translucent, the pump may have lost its prime. Check for any kinks in the tubing or a blocked filter in the ink tank. A humming sound without any ink movement usually indicates a mechanical jam or a failed diaphragm. Replacing a failing pump early is much cheaper than replacing a clogged printhead. Always keep a spare pump in your "Emergency Repair Kit."
The Connection to Ink Tank Agitation
While the pump moves the ink through the tubes, it works best when combined with a tank stirrer. Some systems use a motor-driven paddle inside the white ink tank. The Circulation Pump pulls the already-mixed ink and delivers it to the carriage. This two-step process—agitation and circulation—is the gold standard for DTF maintenance. It ensures that the ink remains "fresh" from the moment it leaves the bottle to the moment it hits the film.
Conclusion: The Secret to Stress-Free Printing
The White Ink Circulation Pump is the ultimate tool for any serious DTF professional. it automates the most difficult part of printer maintenance: white ink management. By preventing clogs and ensuring consistent opacity, it allows you to focus on design and sales. Don't let sediment ruin your expensive printhead or your reputation for quality. Invest in a reliable circulation system and enjoy a smoother, more profitable production workflow.
