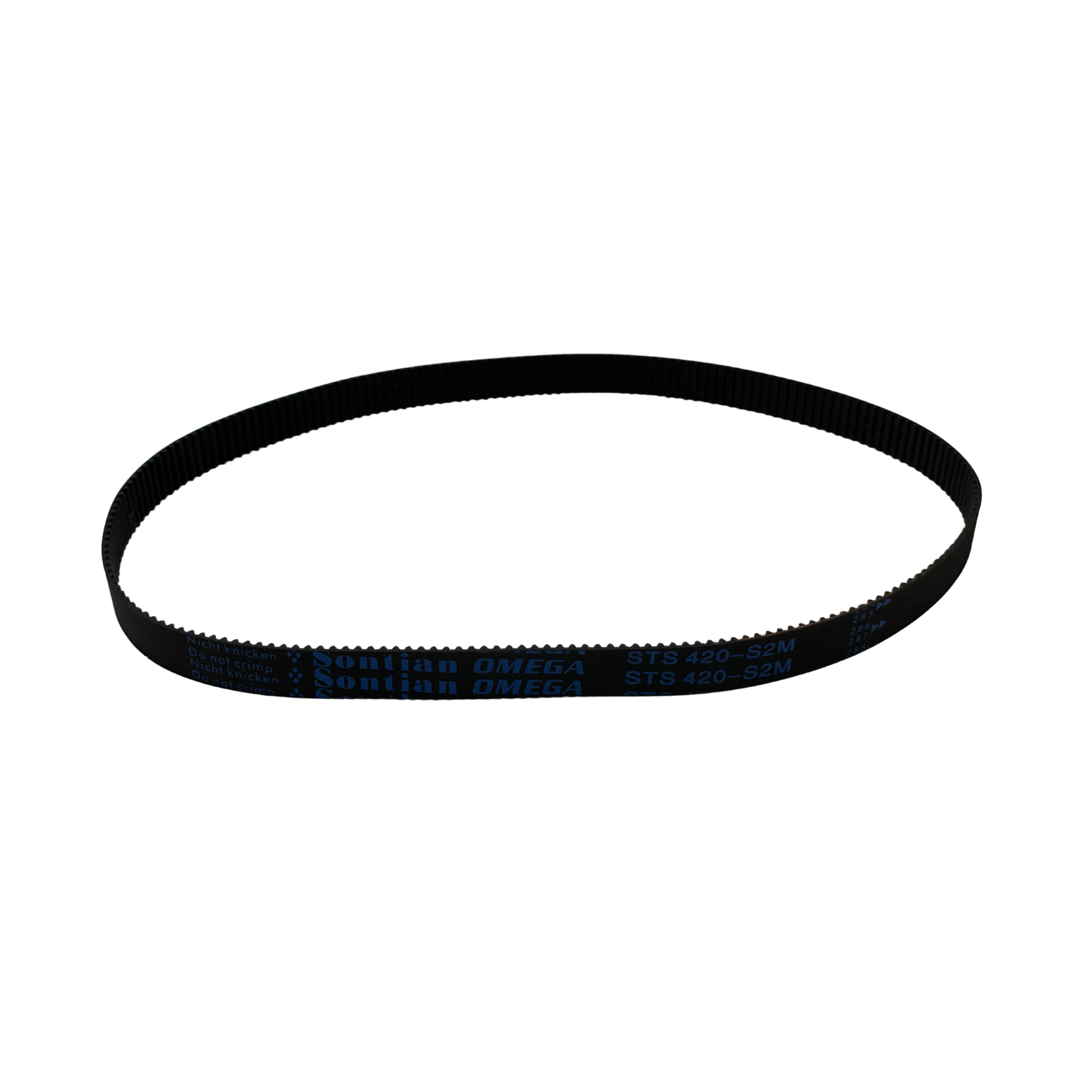

Stepper Motor Belt S2M420-10
In Stock
The Precision of the Stepper Motor Belt S2M420-10
The Stepper Motor Belt S2M420-10 is a fundamental component for the mechanical accuracy of digital printers. It acts as the physical link between the stepper motor and the moving parts of the machine. This belt is specifically engineered for high-torque applications in DTF and UV-LED printing. Its primary job is to translate the rotational force of the motor into perfectly linear movement. Without a high-quality timing belt, the printer cannot maintain the microscopic precision required for modern graphics.
Decoding the Stepper Motor Belt S2M420-10 Specifications
The technical name S2M420-10 provides essential information about the belt's geometry and fit. The "S2M" refers to the tooth profile, which features a 2mm pitch between each groove. This small pitch allows for incredibly fine increments of movement during the printing process. The "420" indicates the total length of the closed-loop belt in millimeters. Finally, the "10" represents the width of the belt, which is 10mm. Matching these numbers exactly is vital for ensuring the belt fits your pulleys without slipping.
The Benefit of the S2M Tooth Profile
The S2M tooth design is known for its "Super Torque" characteristics. Unlike older trapezoidal designs, these teeth have a rounded profile that fits deeper into the pulley grooves. This increased surface contact prevents the belt from "jumping" during rapid changes in direction. In a DTF printer, the carriage must accelerate and decelerate hundreds of times per minute. The S2M profile ensures that no steps are lost during these high-speed transitions. This stability is what creates sharp text and perfectly aligned Valentine’s Day designs.
Material Quality and Reinforcement
A professional Stepper Motor Belt is constructed from high-grade synthetic rubber. To prevent the belt from stretching under tension, it is reinforced with internal fiberglass or Kevlar cords. These tensile cords ensure that the belt maintains its exact length of 420mm throughout its life. Stretching is a common cause of "ghosting" or distorted images in large print jobs. By using a reinforced belt, you ensure that the first inch of your print matches the last inch perfectly.
Common Signs of Belt Wear and Failure
Even the most durable belts eventually show signs of fatigue after thousands of hours. You might notice small cracks appearing in the rubber between the teeth. Another common symptom is "belt dust" or fine black particles accumulating near the motor pulleys. If your printer produces prints with wavy vertical lines, the belt may have lost its tension. Replacing the S2M420-10 at the first sign of fraying prevents a catastrophic break during a live production run.
The Importance of Correct Tensioning
The performance of the Stepper Motor Belt S2M420-10 depends entirely on proper installation. If the belt is too loose, it will vibrate and cause "backlash" errors in your prints. If it is too tight, it puts excessive pressure on the motor bearings and pulleys. This can lead to premature motor failure and increased friction. Most industrial printers feature a spring-loaded tensioning bracket to help you find the perfect balance. A correctly tensioned belt should feel firm but still have a small amount of "flex" when pressed.
Reducing Noise and Vibration
High-quality belts contribute significantly to a quieter work environment. The rubber compound in the S2M420-10 is designed to dampen the vibrations produced by the stepper motor. This reduces the high-pitched "whine" often associated with rapid carriage movements. A smoother belt motion also reduces the mechanical stress on the entire printer frame. This leads to a longer lifespan for your linear rails and carriage bearings. Quiet operation is a hallmark of a well-maintained, professional print shop.
Compatibility with DTF and UV Systems
This specific belt size is a common standard for many A3 and 60cm wide printers. It is often used to drive the paper feed system or the capping station mechanism. Because it is resistant to oils and common Supplies, it performs well in environments where ink mist is present. It can also withstand the heat generated by nearby UV curing lamps without becoming brittle. Its versatility makes it an essential spare part to keep in your maintenance kit.
Installation Tips for Professionals
Replacing a closed-loop belt requires a steady hand and a bit of patience. You must ensure that the belt is seated perfectly straight on both the motor pulley and the idler pulley. Any misalignment will cause the belt to "walk" toward the edge of the pulley and eventually fray. Before tightening the motor mounts, rotate the system by hand to check for smooth movement. This manual check ensures that there are no obstructions or binding points in the drive system.
The Role of the Belt in Print Resolution
Resolution is not just about the printhead; it is about the mechanical delivery of the media. The Stepper Motor Belt ensures that the distance traveled by the carriage matches the digital instructions exactly. If the belt has a 0.1mm variance, your 1440dpi resolution is effectively lost. Using a precision-manufactured S2M420-10 belt ensures that every pixel is placed with mathematical accuracy. This precision is what allows you to create high-end UV DTF Transfers that rival screen-printed quality.
Conclusion: The Foundation of Motion Control
The Stepper Motor Belt S2M420-10 is a small component that carries a heavy responsibility. It provides the torque, precision, and durability needed for industrial-grade printing. By choosing a belt with a high-quality S2M profile and proper reinforcement, you protect your output quality. Regular inspection and correct tensioning are the keys to a long-lasting drive system. Keep your printer moving smoothly and accurately with the right timing belt.
