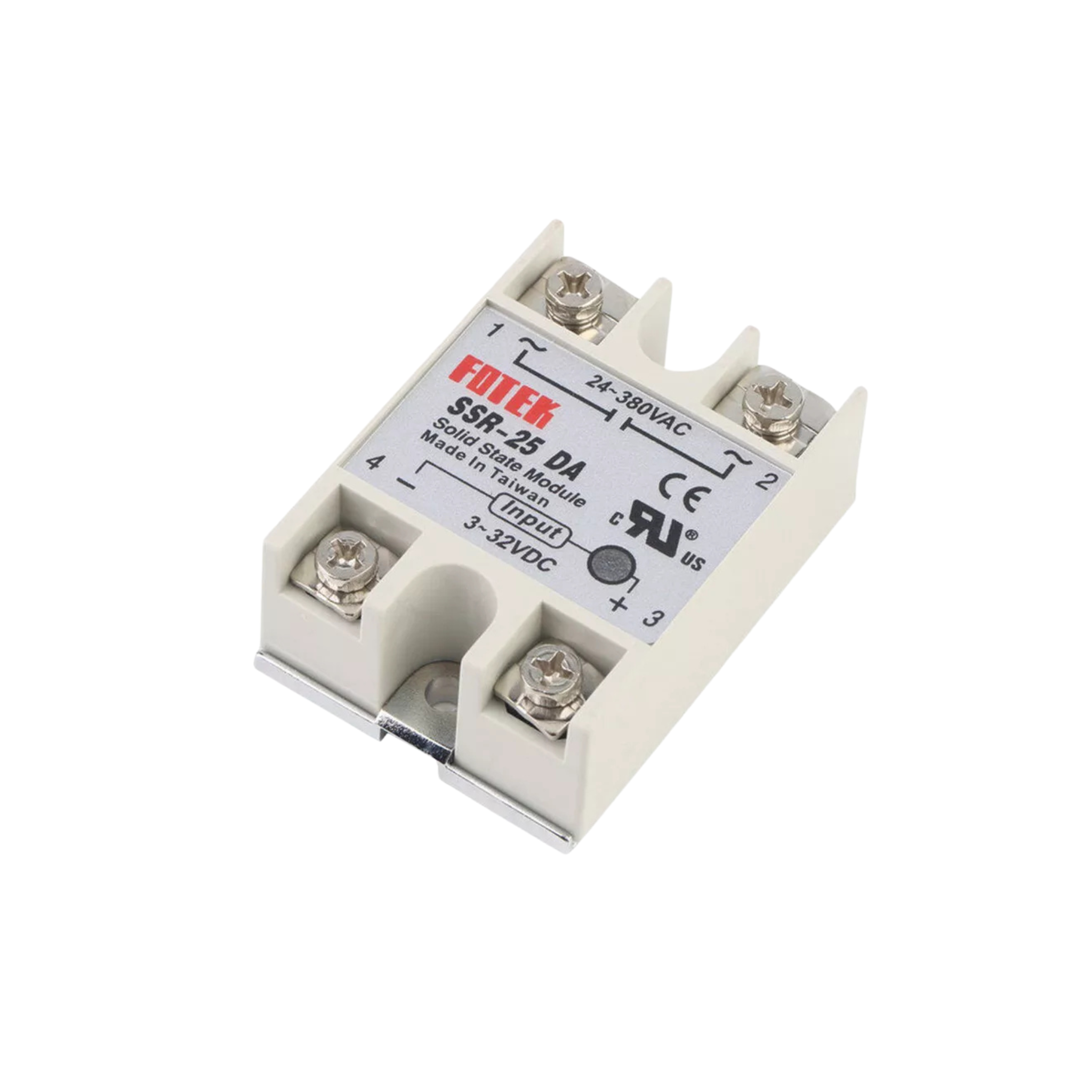

What is a Solid State Relay SSR-25DA?

The Solid State Relay SSR-25DA (SSR) is an electronic switching device that contains no moving parts. Unlike traditional mechanical relays, it uses semiconductor components to open and close a circuit. It is the most preferred component for managing temperature control in DTF (Direct to Film) printing machines, curing ovens, and heat presses.

The SSR-25DA controls a high AC load (24-380V AC) using a low DC input signal (3-32V DC). The "25DA" designation indicates that this relay has a 25 Amp current capacity. This capacity provides sufficient power for industrial heating elements and motors.

Technical Specifications and Performance Solid State Relay

The Solid State Relay SSR-25DA is designed for professionals seeking stability and speed in industrial automation systems. The absence of mechanical contact increases the device's lifespan significantly compared to classic relays.

• Input Voltage: 3-32V DC (Control signal)

• Output Voltage: 24-380V AC (Load voltage)

• Maximum Current: 25 Amperes

• Switching Type: Zero Cross (Reduces interference by switching at the zero-crossing point)

• Response Time: Less than 10ms (Instantaneous response capability)

• Isolation: High optical isolation between input and output

Why Use SSR-25DA in DTF Systems?

One of the biggest factors determining print quality is stable temperature. The SSR-25DA is the silent hero that provides this stability.

Precise Temperature Control

While mechanical relays might switch once per second, the SSR-25DA can switch dozens of times per second. This speed allows the oven or press temperature to remain fixed at the set value with millimetric deviations.

Silent and Spark-Free Operation

Because mechanical parts do not touch, there is no "clicking" sound. Most importantly, no electrical arc (spark) is formed during switching. This feature is critical for fire safety in workshop environments where flammable TPU powders are present.

Long Operational Life

Mechanical wear is the greatest enemy of standard relays. There are no rubbing or aging parts inside the SSR-25DA. Therefore, it maintains its performance even after millions of switching cycles.

Installation and Cooling Tips

The SSR-25DA generates heat while carrying high current. Dissipating this heat is mandatory to prevent the relay from burning out.

1. Use an Aluminum Heatsink: Always mount the relay onto a suitable aluminum heatsink block.

2. Apply Thermal Paste: Spread a thin layer of thermal paste between the relay base and the heatsink. This increases heat transfer by up to 30%.

3. Airflow: Ensure there is sufficient airflow inside the control panel or that a cooling fan is present.

4. Cable Tightness: Tighten the terminal screws thoroughly. Loose connections cause arcing and can melt the relay's plastic housing.
