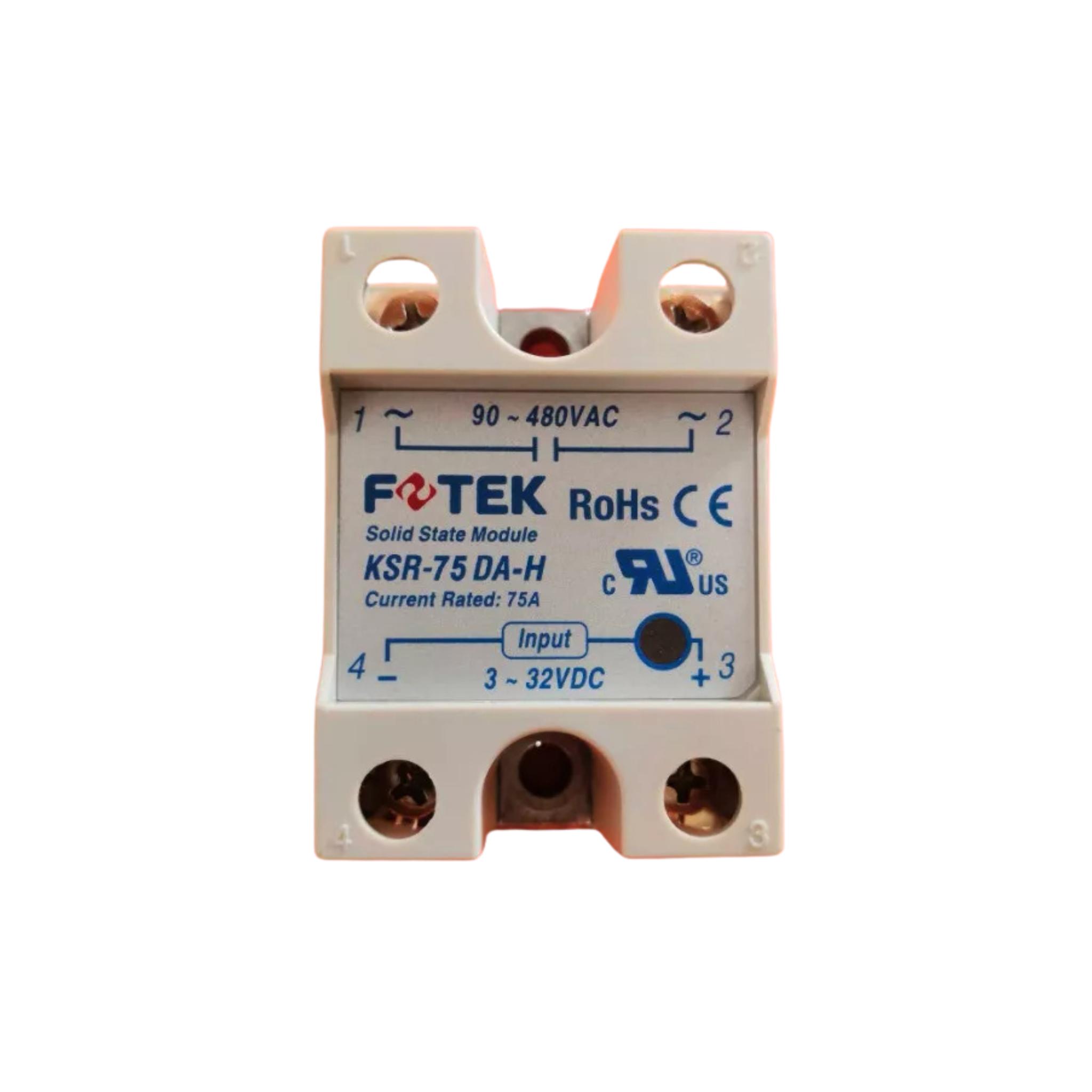

Solid State Relay KSR-75 DA-H 75A
Sold Out
The Industrial Power of the Solid State Relay KSR-75 DA-H 75A
The Solid State Relay KSR-75 DA-H 75A is a high-performance electronic switching device. It is specifically designed for industrial machinery that requires rapid and frequent power cycles. Unlike traditional mechanical relays, this unit has no moving internal parts. This solid-state design eliminates the risk of mechanical wear and tear. It is the gold standard for controlling heavy electrical loads in DTF and UV printing environments.
Understanding the "Solid State" Advantage
A traditional relay uses a physical coil and a metal arm to complete a circuit. This movement creates a small spark and eventually causes the metal to fatigue. The KSR-75 DA-H uses semiconductor technology to switch the electrical current. This results in silent operation and a significantly longer operational lifespan. Because there are no moving parts, the switching speed is nearly instantaneous. This precision is essential for maintaining stable temperatures in printing heaters.
Technical Specifications: 75A and High Voltage
The "75A" in the model name indicates a maximum load capacity of 75 Amps. This makes the Solid State Relay KSR-75 DA-H capable of handling heavy-duty industrial heaters. The "DA-H" designation typically refers to a DC-to-AC switching configuration with high-voltage capability. It can manage high-output drying tunnels and large-scale UV curing systems. This relay provides the muscle needed for 24/7 production environments without breaking a sweat.
The Vital Role in Temperature Control
Consistent heat is the secret to a perfect DTF transfer and high-quality Supplies bonding. The KSR-75 DA-H works in tandem with your printer's PID temperature controller. It switches the heating elements on and off hundreds of times per hour. This rapid switching allows the controller to maintain a steady temperature with minimal fluctuations. Stable heat prevents the film from warping and ensures the adhesive powder melts uniformly.
Superior Safety and Isolation Features
Safety is a primary concern when dealing with 75 Amps of electrical current. This Solid State Relay provides complete optical isolation between the control circuit and the load circuit. This means the low-voltage electronics of your printer are physically separated from the high-voltage heater lines. In the event of a heater failure, the isolation prevents high voltage from traveling back to the mainboard. This layer of protection is vital for preserving your expensive printer hardware.
Managing Heat: The Importance of a Heat Sink
While the relay is highly efficient, switching 75A of power generates internal heat. The KSR-75 DA-H must be mounted on a proper aluminum heat sink to function correctly. Without a heat sink, the internal semiconductors can overheat and fail permanently. We recommend using a high-quality thermal paste between the relay and the cooling fins. This ensures maximum heat transfer and keeps the relay within its safe operating temperature range.
Identifying a Failing Solid State Relay
Identifying a faulty relay is straightforward if you know what to look for. One common sign is a heater that stays on even when the controller says "Off." This usually means the internal semiconductor has "failed shorted." Another sign is a heater that refuses to turn on at all, indicating an open circuit failure. If your DTF dryer is experiencing erratic temperature swings, the KSR-75 DA-H should be the first part you inspect.
Installation and Wiring Best Practices
Installing the Solid State Relay KSR-75 DA-H 75A requires basic electrical knowledge. The input terminals (usually labeled 3-32V DC) connect to your temperature controller. The output terminals (Load) sit in series with your heating element and the AC power source. Ensure all screw terminals are tightened firmly to prevent electrical resistance. Loose connections are the leading cause of melted relay housings and localized fires.
Applications Beyond Printing: A Versatile Tool
While perfect for DTF drying ovens, this relay is a versatile tool for many industries. It is commonly used in plastic extrusion, food processing, and HVAC systems. Its 75A rating provides enough overhead for almost any single-phase heating application. Whether you are building a custom curing station or repairing an industrial plotter, this relay is a dependable choice. It is a rugged component that thrives in demanding, high-heat environments.
Why Choose the KSR-75 DA-H Over Mechanical Alternatives?
In a professional print shop, downtime is the enemy of profit. Mechanical relays often fail after a few hundred thousand cycles, especially under heavy loads. The KSR-75 DA-H can handle millions of cycles without degradation. It also eliminates "electrical noise" that can interfere with sensitive sensor data in your printer. By choosing a solid-state solution, you invest in a quieter, safer, and more reliable production line.
Conclusion: The Heart of Your Heating System
The Solid State Relay KSR-75 DA-H 75A is the silent engine behind your printer's heating performance. It provides the precision and power needed to create professional UV DTF Transfers every time. By ensuring your heaters stay at the exact temperature required, it protects your film and your reputation. Maintain your relay with a proper heat sink and secure wiring to enjoy years of trouble-free operation.
