Precision Engineering: The Role of the Round Magnetic Ring in Industrial Printing

In the fast-evolving world of 2026 industrial printing, high-speed production requires more than just good ink. It requires mechanical stability and electrical harmony. The Round Magnetic Ring is a small but foundational component that ensures your machinery operates without interference. Often overlooked, this ferrite-based ring is the guardian of signal integrity. Whether you are running a boutique DTF shop or a massive "Ready-to-Press" factory, understanding this component is key to long-term hardware health.

What is a Round Magnetic Ring?

A Round Magnetic Ring, technically known as a ferrite core or toroid, is a passive electronic component. It is made from a specialized ceramic compound of iron oxide mixed with metallic elements. Its primary purpose is to suppress high-frequency noise in electronic circuits. By looping a data or power cable through this ring, you create an "inductor" that filters out unwanted electrical interference.

Key Technical Properties:

• High Permeability: Effectively traps magnetic flux to neutralize noise.

• EMI Suppression: Eliminates Electromagnetic Interference from the environment.

• RFI Filtering: Blocks Radio Frequency Interference that can glitch motherboards.

• Non-Conductive: The ceramic material prevents short circuits while managing magnetic fields.

Why Printing Machines Need Magnetic Rings

Modern DTF and UV printers are packed with sensitive electronics. High-voltage power supplies, Stepper Motors, and rapid-fire printheads all generate electrical "noise." Without a Round Magnetic Ring, this noise travels through the cables and confuses the printer’s brain.

The Benefits of Proper Shielding:

1. Stable Data Transmission: Prevents "garbage data" from reaching the printhead.

2. Reduced Jitter: Ensures the Stepper Motor moves smoothly without micro-stutters.

3. Sensor Accuracy: Protects the Raster Decoder from electrical spikes that cause alignment errors.

4. Hardware Longevity: Reduces heat buildup in cables caused by high-frequency harmonic distortion.

Strategic Placement for Maximum Efficiency

Simply having a Round Magnetic Rings isn't enough; you must place it where it can do the most work. In 2026, professional printer builds use these rings at specific "choke points" in the system.

• USB and Data Cables: Placed near the connection to the PC to prevent data packet loss.

• Printhead Ribbon Cables: Shielding these prevents "ink spray" caused by signal cross-talk.

• Power Input: Placed right after the Switched IEC Socket to clean the incoming AC power.

• Motor Leads: Essential for preventing the high-frequency switching of the motor driver from affecting nearby sensors.

Round Magnetic Rings and Static Electricity

In the DTF industry, Static Electricity is a constant battle. As PET film moves through the printer, it generates thousands of volts of static. This static creates electromagnetic pulses (EMP) that can freeze a printer mid-job.

The Magnetic Defense: While grounding wires drain the physical charge, the Round Magnetic Rings handles the resulting "noise" in the circuitry. It acts as a buffer, ensuring that a static discharge on the film rulo doesn't translate into a "Fatal Error" on your control panel. For those selling DTF Transfers Ready-to-Press, this stability is what allows for 24-hour unattended printing.

How to Choose the Right Magnetic Ring

Not all rings are created equal. The effectiveness of a Round Magnetic Rings depends on its material composition and its physical dimensions.

Selection Checklist:

• Internal Diameter: The cable should fit snugly inside the ring for maximum contact.

• Frequency Range: Ensure the ferrite material is rated for the specific noise frequency (typically MHz range for printing).

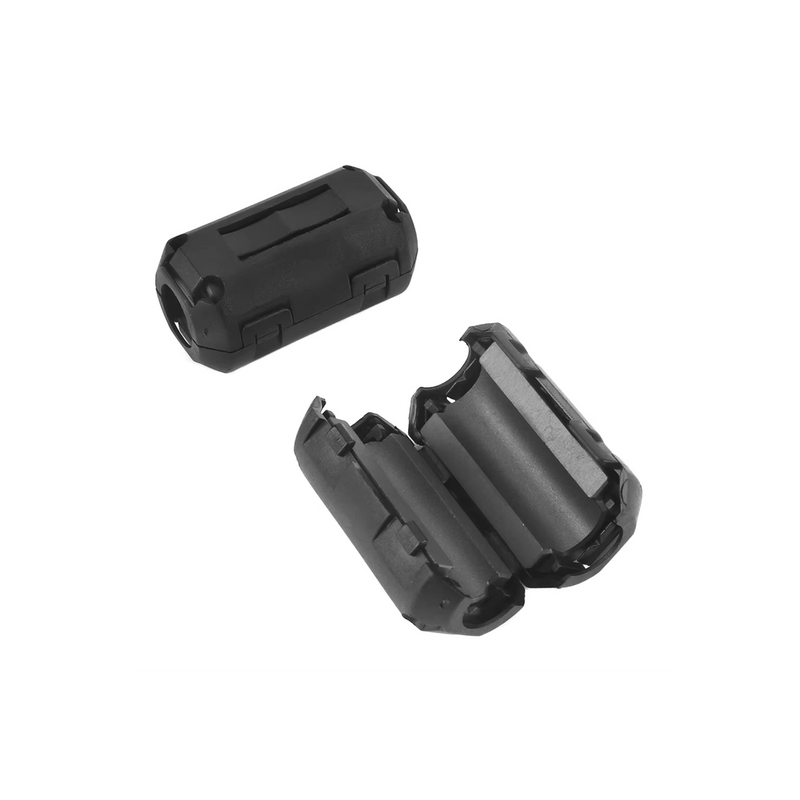

• Mounting Style: Choose between solid rings (for new cable builds) or "snap-on" split cores (for existing setups).

• Quantity of Turns: Looping a cable through the ring twice doubles the filtering power.

Maintaining Your Electrical Environment

A Round Magnetic Rings is a "set it and forget it" component, but the cables they protect are not. Over time, vibrations from the printer can cause the ring to slide or the cable shielding to fray.

Monthly Maintenance Tips:

• Check Position: Ensure the ring is as close to the connector as possible.

• Inspect Housing: For snap-on versions, ensure the plastic clip hasn't become brittle or cracked.

• Cable Integrity: Look for "pinching" where the cable enters the ring, which can damage internal wires.

• Cleanliness: Wipe away ink mist or dust that might settle on the rings, as buildup can retain heat.

Troubleshooting: When the Ring Isn't Enough

If you have installed Round Magnetic Rings but still experience "ghost" errors or random resets, the issue might be deeper.

1. Check Your Grounding: A magnetic ring filters noise, but it cannot replace a proper electrical ground.

2. Isolate High-Power Lines: Ensure your data cables aren't bundled tightly with heavy-duty power lines.

3. Upgrade Your Socket: Use a Switched IEC Socket with a built-in EMI Filter to provide a secondary layer of protection before the power reaches the rings.

4. Verify the Decoder: If alignment is still the issue, inspect the Raster Decoder for physical dirt rather than electrical noise.

The Future: Smart Shielding in 2026

As we progress through 2026, we are seeing the rise of "Active Magnetic Suppression." However, the humble Noise Filter Ring remains the most cost-effective and reliable method for noise management. It is a "passive" solution that requires no power and never fails. For a business built on DTF Supplies, these small rings are the insurance policy that keeps the machines humming and the profits flowing.

Conclusion: Small Part, Massive Reliability

The Noise Filter Ring is the ultimate example of "small details making a big difference." By spending a few dollars on proper shielding, you protect thousands of dollars in printheads and electronics. In the competitive 2026 market, the most successful shops are those that prioritize these technical nuances to ensure 99% uptime.
