Mastering the Raster Decoder: The Silent Guardian of Print Precision

In the sophisticated world of industrial printing, specifically within the 2026 DTF (Direct-to-Film) landscape, precision is not just a goal; it is a requirement. While many users focus on inks and films, the true magic happens behind the scenes. At the heart of this mechanical symphony lies the Raster Decoder. This small but mighty component is responsible for translating digital instructions into physical reality. In this guide, we will explore why the Raster Decoder is the unsung hero of your printing production line.

What is a Raster Decoder?

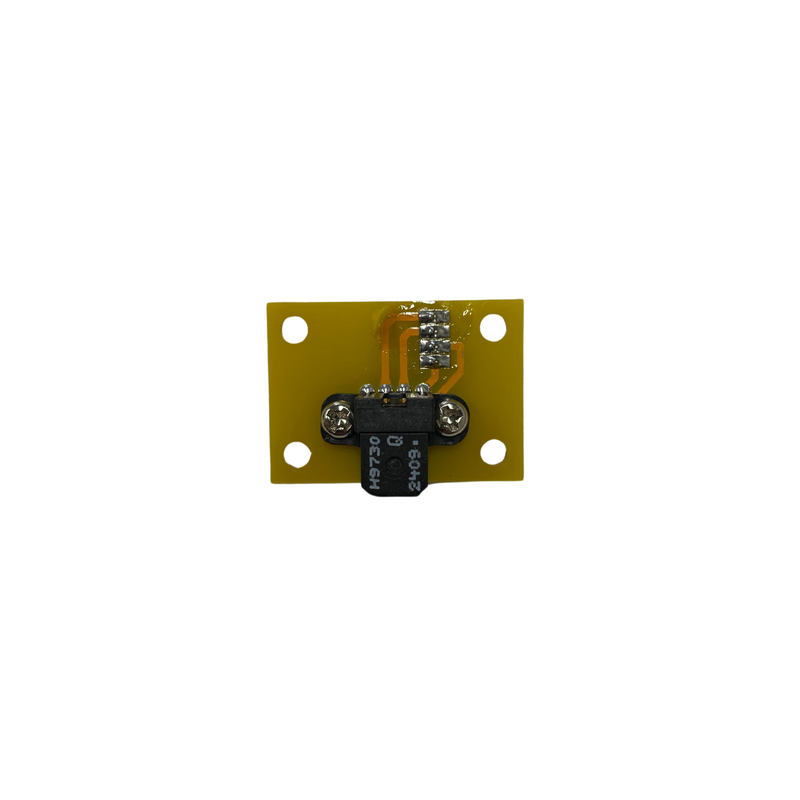

A Raster Decoder (often working in tandem with an encoder strip) is a high-speed optical sensor. Its primary job is to track the exact position of the printhead carriage as it moves across the bridge of the printer. It reads thousands of microscopic lines on a transparent strip to tell the motherboard exactly where the carriage is at any given microsecond.

Core Functions of the Decoder:

• Position Tracking: Monitors the horizontal (X-axis) movement of the printhead.

• Timing Accuracy: Ensures that ink droplets are fired at the precise millisecond required.

• Synchronization: Coordinates the movement of the Stepper Motor with the firing of the nozzles.

• Error Detection: Identifies if the carriage has skipped a beat or met resistance.

Why the Raster Decoder is Vital for DTF Printing

In DTF printing, we often deal with high-resolution graphics that require multiple passes of white and CMYK inks. If the Raster Decoder fails to provide accurate data, the printer loses its "sense of place." This leads to the most common nightmare in the industry: misalignment.

The Impact of a Precise Decoder:

1. Eliminating Banding: Ensures each pass of the printhead overlaps perfectly.

2. Crisp Text: Allows for the printing of tiny, legible fonts that won't blur.

3. Perfect White Underbase: Guarantees the white ink sits exactly beneath the color layer without "peeking" out.

4. High-Speed Stability: Maintains accuracy even when the printer is running at its maximum "production mode" speed.

Signs of a Failing or Dirty Raster Decoder

Because the Raster Decoder is an optical sensor, it is highly sensitive to the environment. In a busy shop filled with ink mist and PET film powder, this component can easily become compromised.

• Double Images: If you see a "ghosting" effect on your prints, the decoder is likely misreading its position.

• Fatal Error Codes: Most industrial printers will trigger a "0x" error code if the decoder cannot find the home position.

• Grinding Noises: The printer may try to move the carriage past its physical limit because the decoder didn't signal the "stop" point.

• Vertical Jaggies: Straight vertical lines appearing "zigzagged" is a classic sign of decoder interference.

Maintenance: Keeping Your Optical Sensors Clear

To ensure your DTF Transfers Ready-to-Press business remains profitable, you must minimize downtime. Maintenance of the Raster Decoder and its corresponding strip is the easiest way to prevent 90% of common print errors.

Maintenance Steps:

• Daily Visual Checks: Ensure no stray hairs or large dust particles are stuck in the sensor path.

• Clean the Encoder Strip: Use a lint-free cloth and a drop of distilled water or specialized cleaning solution.

• Avoid Harsh Chemicals: Never use strong solvents on the sensor, as they can cloud the optical lens.

• Ink Mist Management: Ensure your Printhead Cover is correctly installed to deflect airborne ink particles away from the sensor.

The Connection Between Static Electricity and Decoders

In 2026, we have identified that Static Electricity is one of the primary causes of "random" decoder failures. As the carriage moves rapidly, it builds up a static charge. This charge can attract fine powder or dust directly into the Raster Decoder lens.

How to Mitigate Static Interference:

• Use a properly grounded Switched IEC Socket for your machine.

• Maintain humidity levels in your shop between 40% and 60%.

• Ensure the grounding wire for the carriage assembly is intact and secure.

Upgrading Your Raster System in 2026

The technology behind decoders has evolved. Modern industrial printers are now moving toward "Gold-Plated" or "High-Density" encoder strips. These allow the Raster Decoder to read data at a much higher frequency, supporting resolutions up to 2400 DPI without slowing down the carriage speed.

What to Look for in a Replacement Decoder:

• Compatibility: Ensure the sensor matches your printer's specific data ribbon (e.g., 15-pin or 30-pin).

• DPI Rating: Matches the density of your encoder strip (e.g., 150 LPI or 180 LPI).

• Shielding: High-quality decoders come with a small metal or plastic shield to protect the lens from ink spray.

Integration with Motion Control Parts

The Raster Decoder does not work alone. It is part of a delicate ecosystem that includes:

• The Encoder Strip: The "ruler" that the decoder reads.

• The Mainboard: The "brain" that processes the decoder's signals.

• The Stepper Motor: The "muscle" that moves based on the decoder's feedback.

When all these parts are in sync, your production is seamless. If you are experiencing issues, it is often wise to check the Parts & Accessories section to ensure all related components are in good health.

Conclusion: Precision is the Key to Profit

Investing time in understanding and maintaining your Optical Encoder Reader is an investment in your business's reputation. In the world of high-quality transfers, there is no room for blurry lines or misaligned colors. By keeping this small sensor clean and functional, you ensure that every sheet leaving your shop is a masterpiece of precision.
