The Ultimate Shield: Printer Anti-Collision Device in 2026

In the high-stakes world of industrial DTF and UV printing, the printhead is your most valuable asset. A single collision with curled film or a foreign object can result in thousands of dollars in damages. The Printer Anti-Collision Device is the critical safety system designed to prevent these disasters. As we move through 2026, these devices have evolved from optional accessories to essential requirements for any professional "Ready-to-Press" production line.

What is a Printer Anti-Collision Device?

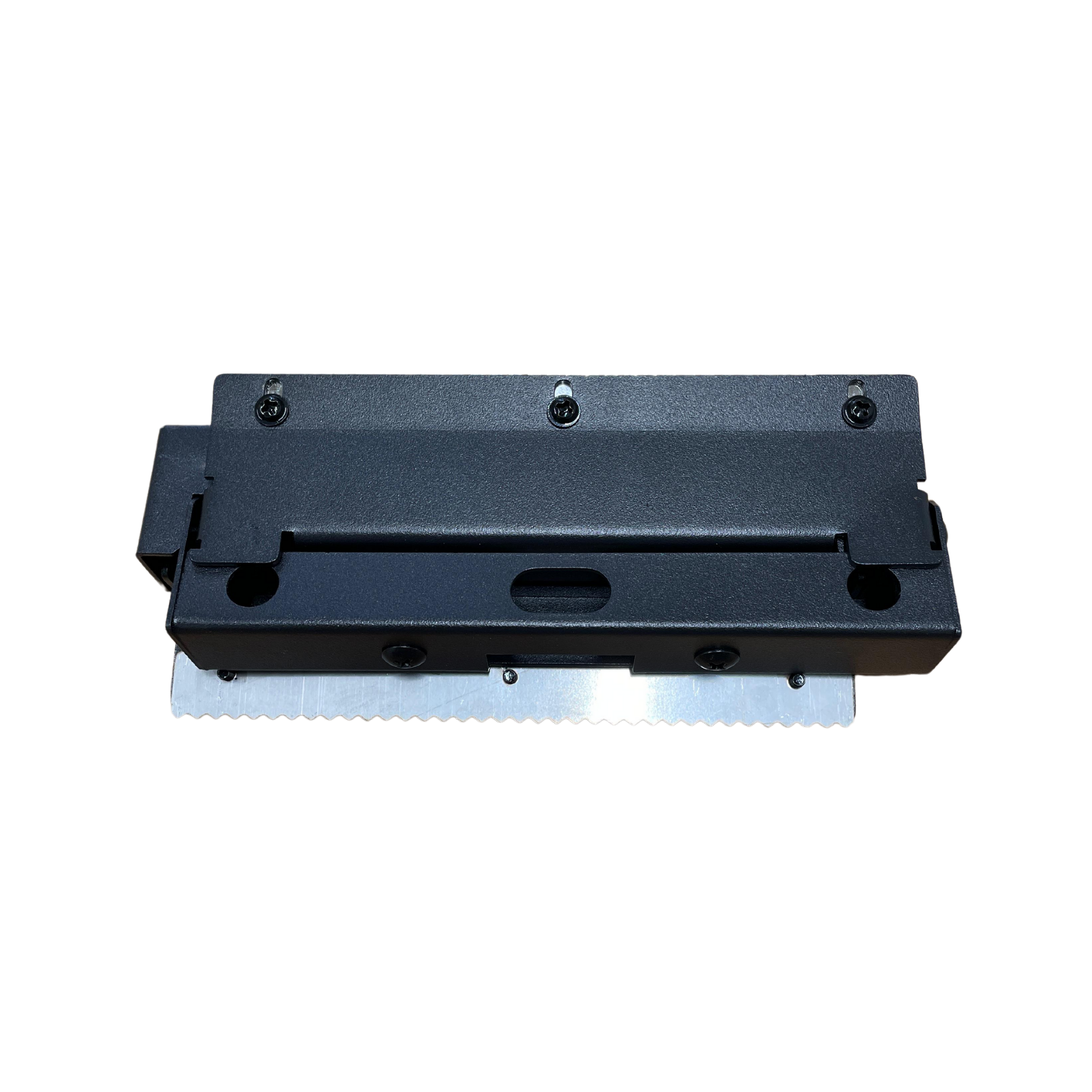

A Printer Anti-Collision Device is a sensory safety mechanism mounted on both sides of the printhead carriage. It acts as a physical and electronic bumper. If the device detects an obstruction—such as a wrinkled PET film or a stray tool—it instantly sends a signal to the motherboard to freeze all motion. This millisecond response time is what saves your delicate nozzles from physical impact.

Key Components of the System:

• Sensitive Bumper Rails: Physical guards that trigger upon the slightest contact.

• Optical Sensors: High-speed sensors that detect height irregularities.

• Emergency Stop Trigger: A direct link to the Stepper Motor controller to halt movement.

• Adjustable Brackets: Allows for fine-tuning based on the thickness of the media being used.

Why Collision Protection is Vital for DTF Printing

DTF printing involves heat, moisture, and specialized films, all of which can cause "media cockling" (wrinkling). When PET film heats up in the pre-heater, it can sometimes lift. Without a Printer Anti-Collision Device, the fast-moving printhead would strike this lifted film, potentially scratching the nozzle plate or knocking the head out of alignment.

The Benefits of Advanced Protection:

1. Cost Savings: Prevents the need for expensive printhead replacements.

2. Reduced Downtime: An emergency stop is easier to fix than a mechanical failure.

3. Peace of Mind: Allows for "unattended printing," which is vital for passive income models.

4. Alignment Preservation: Protects the delicate calibration of the Raster Decoder by avoiding jarring impacts.

How the Anti-Collision System Works in 2026

Modern systems in 2026 have moved beyond simple mechanical switches. They now integrate with the printer's software to provide "Intelligent Recovery." When the bumper is triggered, the printer doesn't just stop; it records the exact coordinate of the failure.

The Workflow of a Collision Event:

• Detection: The bumper strikes an obstacle.

• Signal: The Printer Anti-Collision Device cuts the power to the carriage motor.

• Protection: The printhead is instantly lifted to its highest position to avoid further contact.

• Alert: An audible alarm and a software notification alert the operator.

• Resume: Once the obstacle is cleared, the operator can often resume the print from the exact spot it stopped.

Common Causes of Printhead Collisions

Understanding what triggers these devices helps you optimize your shop's workflow. Most collisions are preventable with proper material handling.

• Film Deformation: Lower-quality PET films that warp under high curing temperatures.

• Ink Buildup: Dried ink on the edges of the media that creates a "lip" for the carriage to catch.

• Incorrect Head Height: Setting the "Platen Gap" too low for thick garments or films.

• Static Electricity: High static can cause the film to "jump" toward the printhead; ensure your Round Magnetic Ring and grounding are in place.

Installation and Calibration Tips

For a Printer Anti-Collision Device to be effective, it must be calibrated with extreme precision. If it is too sensitive, it will stop the print for no reason. If it is too loose, it won't trigger until the damage is already done.

Best Practices for Setup:

• Height Alignment: The bumper should sit approximately 0.5mm lower than the printhead nozzles.

• Cleanliness: Keep the mechanical joints of the bumper free from ink mist to prevent sticking.

• Testing: Periodically perform a "soft test" by triggering the bumper with a piece of foam while the carriage is moving slowly.

• Firmware Sync: Ensure your printer's firmware is updated to recognize the emergency stop signal from the sensors.

Maintaining Your Safety Sensors

Like any part of a high-performance machine, the anti-collision system needs regular checks. In an environment with ink spray and adhesive powder, sensors can become "blinded."

Monthly Maintenance Checklist:

• Sensor Cleaning: Use a dry, lint-free cloth to wipe the optical eyes of the device.

• Spring Tension: Check that the return springs in the bumper are still strong and responsive.

• Wiring Inspection: Ensure the cables connecting the device to the motherboard are not frayed or pinched by the carriage movement.

• Bracket Tightening: Vibrations from the Stepper Motor can loosen the mounting screws over time.

The Economic Impact on Your Business

Consider the math: A high-end industrial printhead can cost between $1,500 and $3,000. A Printer Anti-Collision Device is a fraction of that cost. By installing this "insurance policy," you are protecting your shop's ability to fulfill orders. For businesses specializing in DTF Transfers Ready-to-Press, reliability is your biggest selling point. Customers need to know their supplier won't be offline for a week due to a preventable crash.

Conclusion: Proactive Protection for 2026

The Printer Anti-Collision Device is the ultimate symbol of a professional printing operation. It moves your business from a "hope for the best" strategy to a "guaranteed uptime" model. In the competitive 2026 market, those who protect their equipment are the ones who stay profitable. Don't wait for a collision to happen—shield your printheads today.
