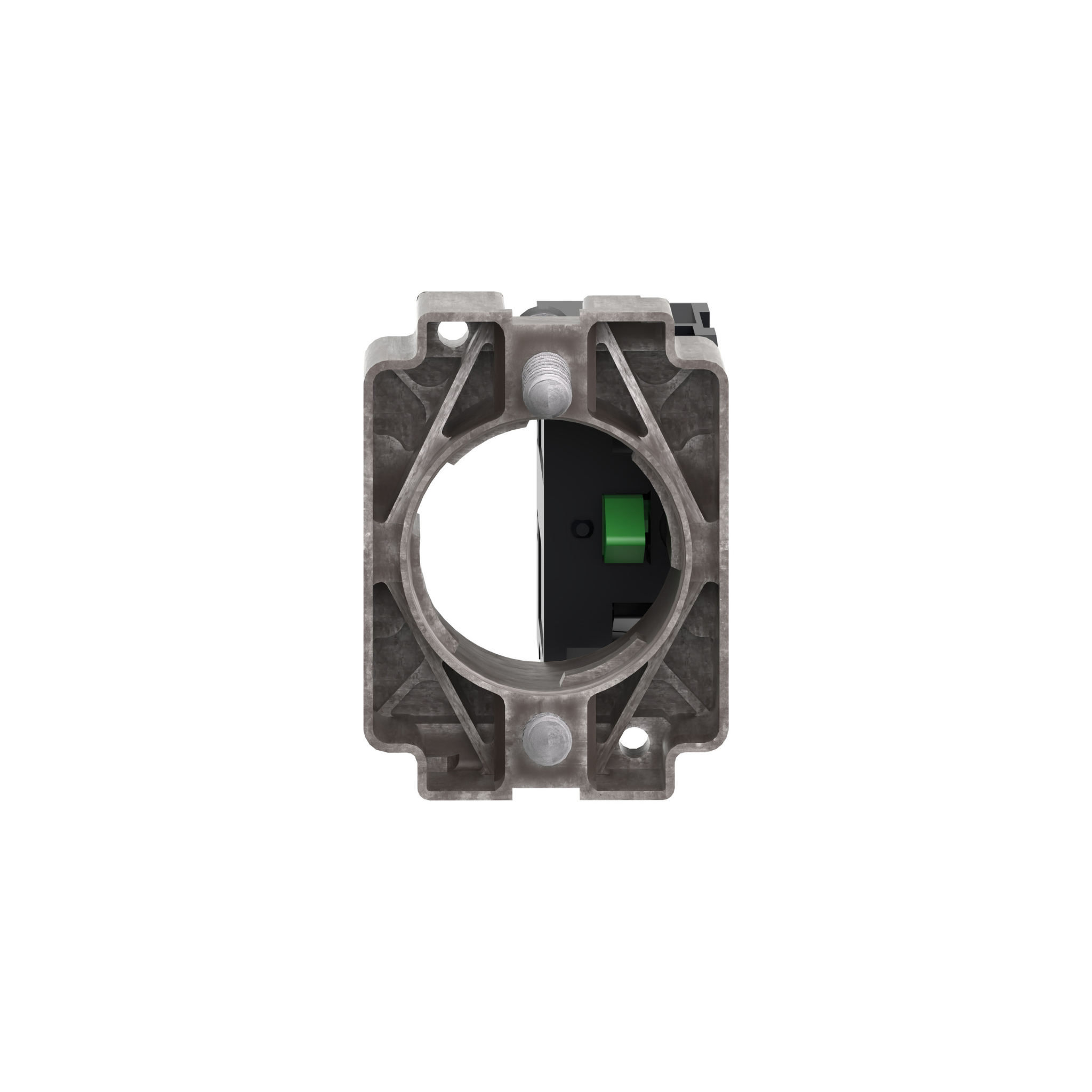

What is a Manual Press Switch Body Part?

The Manual Press Switch Body Part is an essential control component used in industrial machinery and DTF (Direct to Film) printing equipment. It serves as the physical interface that allows an operator to open or close a circuit manually. These switches are commonly found on heat presses, vacuum systems, and manual film feeding units.

This part converts a physical pressing motion into an electrical signal. Built for durability, these switch bodies are designed to withstand thousands of cycles in high-volume production environments without failure. A high-quality switch body directly impacts the precision and reliability of your machine's manual controls.

Technical Specifications and Features

Manual Press Switch bodies are manufactured according to industrial standards using high-grade components. Each element is optimized for long-term performance and operator safety.

• Durable Contact Points: Internal contacts are often made from silver or copper alloys to prevent electrical arcing and ensure a clean signal.

• Ergonomic Design: Features a user-friendly button surface that is easy to press, often with a non-slip texture for better grip.

• Spring-Return Mechanism: A high-precision internal spring ensures the button returns to its original position immediately after being released.

• Standard Mounting: Designed to fit universal control panel cutouts (typically 16mm or 22mm), ensuring easy integration into existing hardware.

• Insulated Housing: The outer casing is made from flame-retardant plastic or reinforced metal to ensure safety in high-voltage circuits.

Importance in DTF and Print Shops

In DTF printing systems, timing and manual oversight are key to maintaining quality. Manual control switches allow operators to test functions or intervene outside of the machine's automated programs.

Precision Operational Control

In heat presses or film rewinding units, split-second adjustments can save a print. A professional-grade Manual Press Switch responds instantly to an operator’s command, significantly reducing waste and errors.

Security and Durability

Switches that are pressed repeatedly throughout the day are prone to mechanical fatigue. A premium switch body is resistant to wear and tear, preventing unexpected downtime in your workshop.

Resistance to Dust and Chemicals

DTF environments often contain adhesive powders and ink vapors that can penetrate electronic components. Professional switch bodies are often sealed to protect internal mechanisms from these harmful particles.

Installation and Maintenance Guide

To ensure a switch has a long operational life, it must be installed correctly and maintained regularly.

1. Correct Alignment: When mounting the body to a panel, ensure the screws are tightened evenly. An uneven mount can cause the internal mechanism to jam.

2. Secure Wiring: Ensure all wire leads are tightly connected. Loose connections can lead to overheating and can eventually melt the switch housing.

3. Surface Cleaning: Regularly clean the area around the button with a dry cloth to remove dust buildup. If dust enters the internal chamber, it can cause intermittent contact issues.

4. Wear Inspection: If you notice a "sticky" feeling when pressing the button or a decrease in the audible "click," it is likely time to replace the part.
