The Foundation of Secure Control Press Switch

In industrial production processes, the interaction between human and machine is the most critical point. One of the essential components that makes this interaction safe and efficient is the Manual Press Switch unit. Manual press switches are mechanical control elements that open or close a circuit through the physical intervention of an operator. They are used in a wide range of equipment, from heat press machines to textile printers. These switches are the final control point that decides when the system should start or stop. In this guide, we will examine the technical structure, safety standards, and industrial usage advantages of manual switches.

What is a Manual Press Switch and How Does It Work?

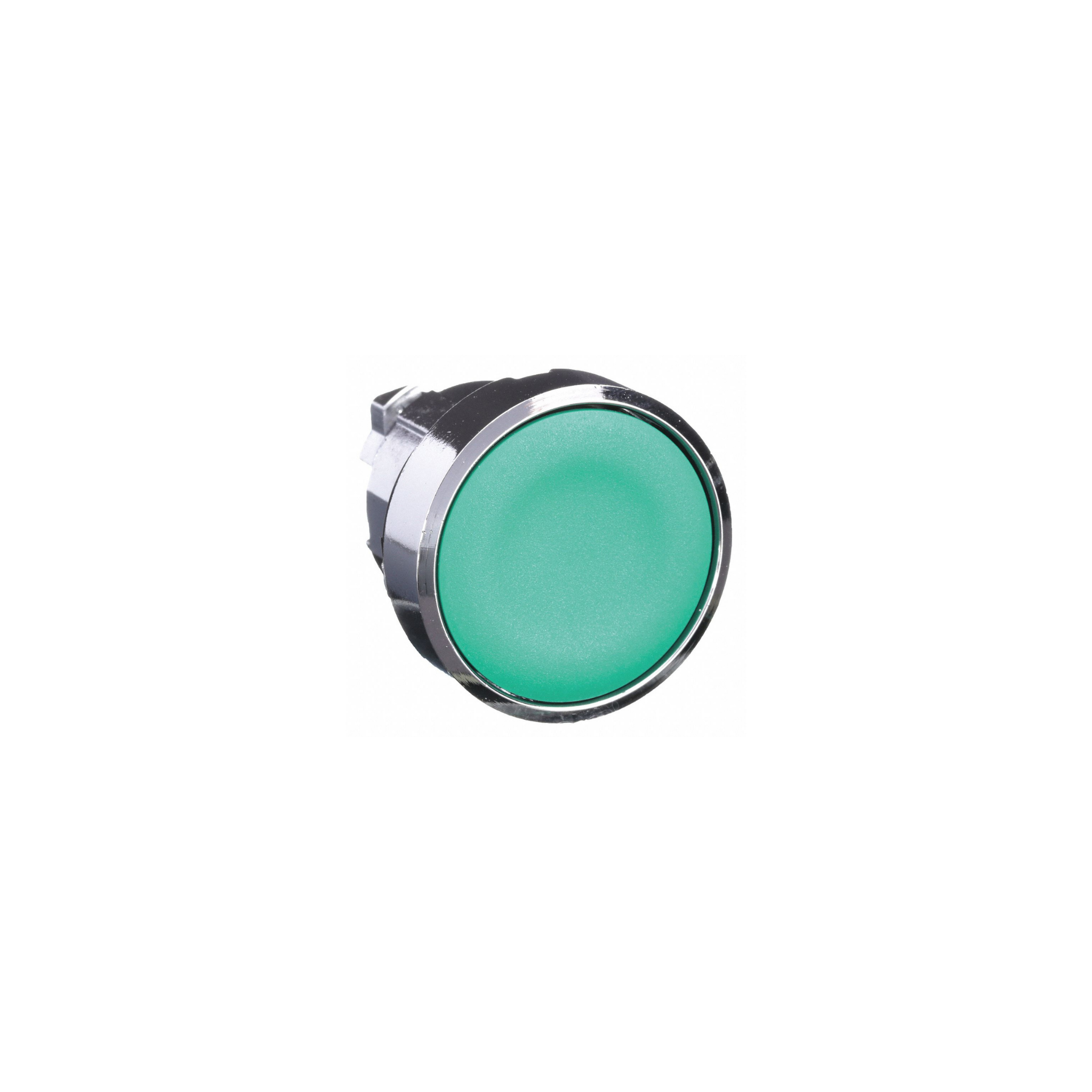

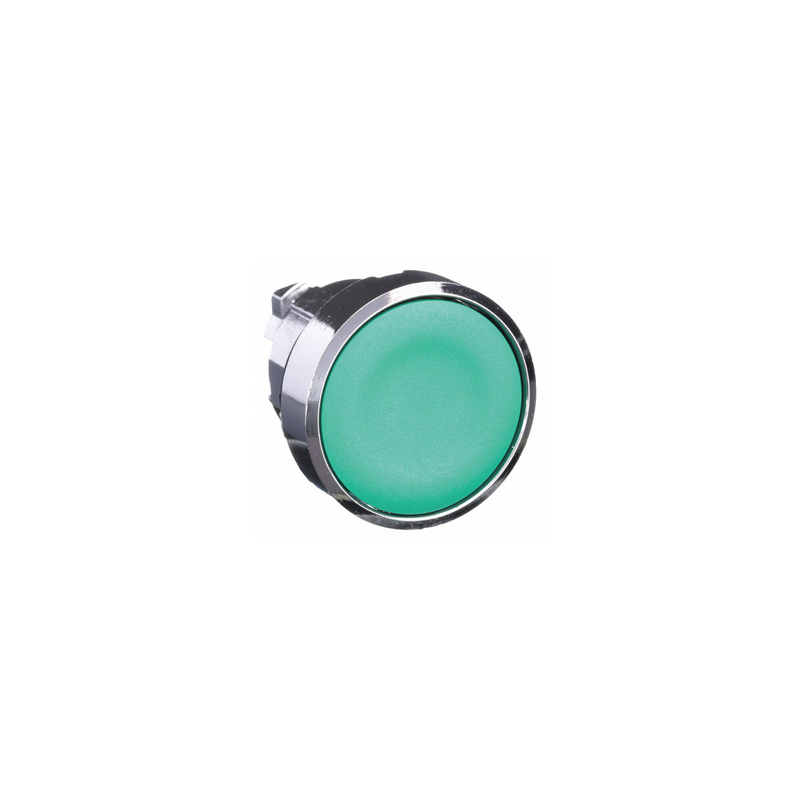

A Manual Press Switch converts physical pressure applied by the user into an electrical signal. It consists of a simple mechanical spring system and conductive contacts. When the user presses the switch, the contacts join and electrical flow begins.

These switches are generally designed in two types: "momentary" or "latching." Momentary switches remain active only as long as pressure is applied. Latching models maintain their position once pressed and keep the circuit open until pressed again. Unlike complex digital systems, the Manual Press Switch offers direct and tangible feedback. The operator understands that the process has started through a physical "click" sound or a change in resistance.

The Safety Role in Industrial Press Machines

In devices operating with high power, such as heat presses and cutting machines, safety is everything. The Manual Press Switch is a safety layer that prevents these machines from operating uncontrollably.

Requiring the operator to trigger the system using their hand or foot ensures that their attention remains on the machine. Especially in "two-hand control" systems, two Manual Press Switch units are used. The operator's hands must be on both switches simultaneously. This completely eliminates the risk of hands getting caught under the press mechanism. Manual switches are the fastest intervention tool to stop the system in seconds during emergencies.

Durability and Material Quality

Industrial environments possess harsh conditions such as dust, moisture, and high temperatures. A high-quality Manual Press Switch must show superior resistance to these external factors.

The body structure is usually produced from impact-resistant polycarbonate or stainless steel. The contact points may be silver or gold-plated for high conductivity and corrosion resistance. A Manual Press Switch must not lose its mechanical flexibility even after being pressed thousands of times. Models with a high IP (Ingress Protection) rating provide full protection against liquid splashes and dust entry. This durability minimizes unexpected downtime on the production line and reduces maintenance costs.

Precise Triggering and Operator Comfort

In long shifts, operator comfort directly affects production efficiency. The design of a Manual Press Switch must comply with ergonomic standards.

The pressing surface of the switch is designed wide enough to be felt easily even with gloves. The required activation force should be neither too hard nor soft enough to be pressed accidentally. An ideal Manual Press Switch reduces the possibility of operator error by providing a clear triggering sensation. Ergonomic design prevents joint disorders caused by repetitive movements. A happy and comfortable operator produces higher quality work.

Electrical Capacity and Compatibility

Every switch has a specific voltage and current limit it can carry. When selecting a Manual Press Switch, the power requirements of the machine must be considered.

Switches designed for low-current control circuits are not suitable for high motor loads. Using a switch with the correct Amperage (A) and Voltage (V) prevents contacts from arcing and burning. A Manual Switch can vary according to AC (Alternating Current) or DC (Direct Current) circuits. Electrical compatibility ensures stable system operation and eliminates fire risks. Staying within the limits specified in technical documents extends the life of the device.

Easy Assembly and Integration Processes

It is a great advantage for parts in production lines to be quickly replaceable. Manual Switch units are generally produced in accordance with standard panel mounting dimensions (e.g., 22mm or 30mm).

Screw or socket connection terminals simplify the wiring process. This simplicity allows a technician to renew the part within minutes in case of failure. A Manual Switch can be easily integrated into existing control panels or external pedals. Thanks to their modular structure, a visual coding system can be created with button heads in different colors (red, green, yellow). Easy assembly saves installation costs and time.

Chemical and Heat Resistance

Ink solvents and high temperatures are common, especially in printing workshops. A Manual Switch must not corrode when it comes into contact with these chemical substances.

A switch located on a heat press is constantly exposed to radiant heat. This situation should not cause the outer plastic of the switch to melt or the contacts to expand. Special ceramic or polymer-based Manual Switch models resistant to high heat pass these tough tests successfully. Chemical resistance prevents the markings (Start/Stop) on the switch from erasing over time. In this way, the functions on the machine always remain readable.

Feedback Mechanisms Increasing Efficiency

Visual or auditory feedback speeds up the operator's understanding of the system status. Some Manual Switch models have built-in LED lighting.

Illuminated switches indicate whether the machine is ready for operation or a fault condition through light color. It is much easier to find and use an illuminated Manual Switch in dark or dim production areas. The operator makes sure that the circuit is completed when the light turns on upon pressing the button. This instant confirmation eliminates doubts in the process and accelerates the production flow. Technological details transform a simple switch into a smart control element.

Importance of Long-Term Investment and Spare Parts

Cheap and low-quality switches may provide savings in the short term but cause great damage in the long run. A high-quality Manual Switch lowers the total cost of ownership of the machine.

It is always easier to access spare parts for a switch purchased from a reliable brand. Avoiding the need to wait in case of failure prevents production loss. Despite its simple structure, the Manual Switch is the most frequently used part of the system. Therefore, choosing the most robust component is a logical commercial decision. Working with professional equipment reflects your brand's reliability and job quality.

Conclusion: The Indispensable Power of Manual Control

The Manual Press Switch continues to be an indispensable control element even in a digitizing world. This component, which allows direct human intervention, is the key to safety and speed.

Choosing the right switch protects both the operator and maximizes the machine's performance. Opting for a model resistant to heat, chemicals, and intense use is the best investment for your business. Remember, even the most advanced machines need a quality starting point. Do not leave your business to chance and always stay one step ahead with professional control solutions.
