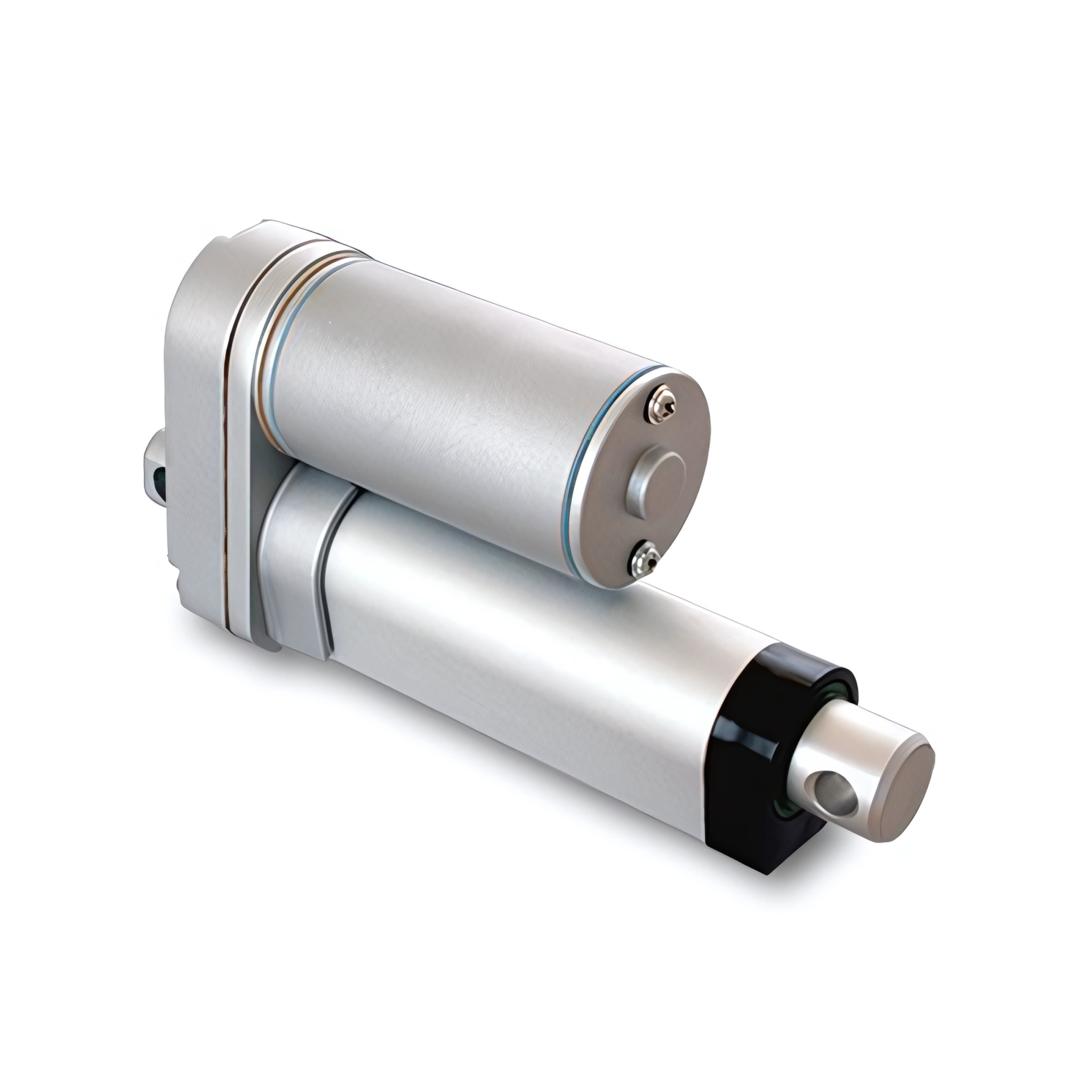

Linear Actuator for UV DTF Printer XDHA 24-20 DC24V

When precision and reliability are essential in your UV DTF printing operations, the Linear Actuator for UV DTF Printer XDHA 24-20 DC24V delivers outstanding performance. Designed to support exact linear motion in printing systems, this actuator ensures smooth, efficient, and long-lasting operation in professional environments.

What is a Linear Actuator for UV DTF Printers?

A Linear Actuator for UV DTF Printer is an electromechanical device that converts electrical energy into controlled linear motion. In UV DTF printers, it's primarily used to manage the precise positioning of the printhead or media platform.

Why Choose the XDHA 24-20 DC24V Model?

• 🔩 Compact design, ideal for limited space

• 🔇 Quiet operation

• ⚡ Low power consumption (DC24V)

• 🧭 Accurate 20mm stroke length

• 🛠️ Easy integration into existing UV DTF systems

Product Specifications

The XDHA 24-20 DC24V Linear Actuator is engineered with high-quality components to guarantee superior durability and accuracy.

• Model: XDHA 24-20

• Operating Voltage: DC 24V

• Stroke Length: 20mm

• Max Force: 100N (approx. 10 kg)

• Duty Cycle: 25% ED

• Body Material: Anodized aluminum

• Connection Type: Standard threaded ends

• Cable Length: 30cm (extendable)

• Compatibility: Designed for use with UV DTF printers

Benefits of the

🖨️ Improved Printing Precision

Using the Linear Actuator for UV DTF Printer enhances printhead stability and enables precise control during print cycles. This directly results in cleaner prints and better overall output quality.

💡 Energy Efficiency

With its DC24V operation and efficient motor design, the actuator consumes minimal power, helping reduce overall machine energy use.

🔧 Easy Installation

The XDHA 24-20 model fits seamlessly into most UV DTF printer frames. Standard mounting holes allow for a quick setup without any complicated tools.

Applications in UV DTF Printing

This actuator is suitable for several key functions within UV DTF printer systems:

Printhead Movement

Ensure your UV DTF printhead stays on track and aligned with micrometer precision.

Media Transport Systems

Supports automatic linear movement of print films during production.

Key Features

• ✅ Durable anodized aluminum housing

• ✅ High precision movement with minimal backlash

• ✅ Low noise motor technology

• ✅ Long lifespan with minimal maintenance

• ✅ Fully compatible with modern UV DTF printing systems

Looking for a reliable actuator? XDHA 24-20 offers the perfect balance between cost, performance, and durability.

Why It Matters

In the world of UV DTF printing, mechanical precision is not just an advantage—it’s a necessity. The consistent quality of your prints, the longevity of your equipment, and the efficiency of your operations all depend on how accurately each component functions. That’s where the plays a crucial role.

A reliable linear actuator ensures that every movement within your printer—from the printhead’s travel to the film feed mechanism—is smooth, controlled, and repeatable. Even the slightest misalignment or jitter can cause banding, smudging, or color misregistration in your prints. By integrating the XDHA 24-20 DC24V into your UV DTF system, you’re effectively eliminating these potential pitfalls.

Built for Demanding Environments

This actuator is specifically engineered for continuous operation in high-volume printing environments. Whether you're running a print shop with multiple machines or managing a single specialized printer, you need components that won’t break down under pressure. The XDHA 24-20 DC24V offers durable construction, thermal stability, and long service intervals—all essential traits for professionals who rely on their equipment every day.

Upgrade Without Downtime

Thanks to its compact design and universal mounting configuration, the XDHA 24-20 is ideal for both retrofitting and OEM applications. If your current actuator is failing or underperforming, this model allows you to upgrade without needing to redesign your machine or halt production for long. It integrates smoothly with most existing UV DTF printers that use 24V systems and a 20mm stroke, making it a practical and cost-effective choice.

Designed for Efficiency and Accuracy

In addition to its mechanical strength, the XDHA 24-20 offers energy efficiency through its low-voltage (DC24V) motor, reducing both heat generation and power consumption. This means less strain on your printer’s power supply and more consistent performance during long production runs. The actuator’s precise linear motion helps maintain perfect alignment of the printhead, ensuring sharper, cleaner prints and less wasted material.

Peace of Mind for Professionals

Every component in your printer affects your bottom line—especially in fast-paced print environments where downtime costs money. The delivers the kind of reliability and ease of use that lets you focus on your output instead of maintenance. It’s not just a replacement part; it’s an upgrade to your printer’s performance and your business’s productivity.
