Ink Management System Board

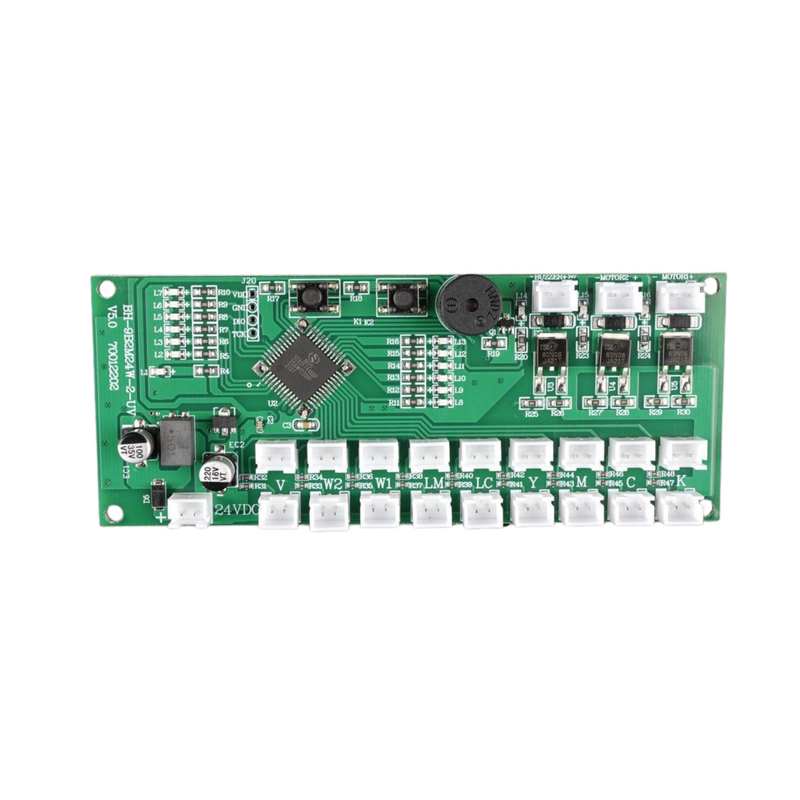

Ink Management System Board – BH-9B2M24W-2-UV V5.0

Precision Control for High-Performance Ink Delivery

The Ink Management System Board (Model: BH-9B2M24W-2-UV V5.0) is an advanced control unit designed to manage the precise flow of ink in modern printing systems. Engineered for high-efficiency operation and long-term reliability, this board plays a central role in optimizing ink usage, preserving printhead health, and maintaining consistent print quality across demanding production environments.

Whether you're operating UV, DTF, or industrial inkjet printers, this board ensures intelligent ink regulation and seamless communication between your ink tanks, valves, sensors, and the printer's central processing unit.

🔧 Key Features

• Microcontroller-Driven Control: Accurately regulates ink pressure and flow

• Real-Time Monitoring: Tracks ink levels and flow conditions to prevent downtime

• Multiple Ink Channel Support: Ideal for CMYK, white, and specialty ink setups

• Seamless Integration: Easily integrates with printer firmware and control systems

• Durable Construction: Built for industrial use and high-volume printing environments

• Firmware Upgradable: Supports system updates for performance improvements

✅ Benefits

• Enhanced Print Stability: Prevents air bubbles, blockages, or ink surges

• Minimized Ink Waste: Intelligent flow control reduces overuse and spillage

• Improved Color Accuracy: Maintains consistent droplet formation and delivery

• Extended Equipment Life: Reduces strain on printheads and ink lines

• Downtime Reduction: Monitors issues in real-time to alert for maintenance needs

• Adaptable Use: Suitable for UV, solvent, textile, and pigment-based systems

📌 Product Applications

This board is essential in systems where precise ink regulation is critical, including:

• UV Flatbed & Roll Printers

• DTF (Direct-to-Film) Printers

• Textile and Garment Printers

• Industrial Inkjet Machines

• Packaging & Label Printing Equipment

🧠 What Is an Ink Management System Board?

This board acts as the central controller for the printer’s ink delivery system. It regulates valves, monitors sensor data, controls ink pressure, and communicates with the printer’s mainboard to ensure smooth, uninterrupted ink flow. Think of it as the “brain” behind every ink movement in your printer.
