Maximize Your Printing Efficiency with the Mounting Base

In the competitive world of garment decoration, speed and precision are the two most important factors for success. The Hydro1620 Platen with Mounting Base is a heavy-duty, professional-grade solution designed to meet these demands. This specialized platen system is engineered for high-volume shops that require stable, repeatable, and accurate prints. Unlike standard platens that might wiggle or warp under pressure, the Hydro1620 provides a rock-solid foundation for every garment. Whether you are using DTG, screen printing, or advanced heat transfers, this mounting system is a vital upgrade for your production line. This guide details the technical engineering and operational advantages of the Hydro1620 system.

Engineering for Stability and Precision

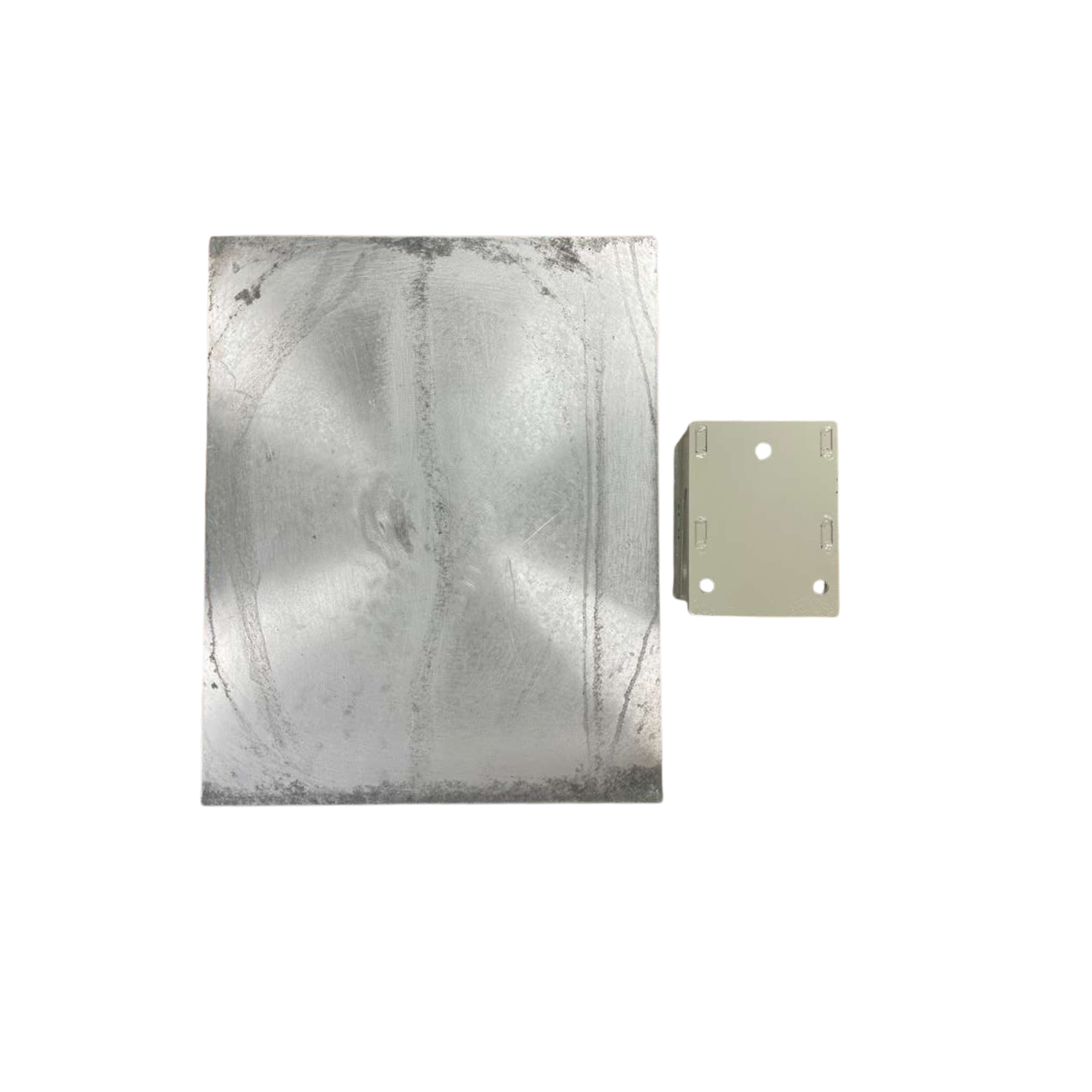

A high-quality print begins with a perfectly flat and stable surface. The Hydro1620 Platen with Mounting Base is constructed from premium-grade aluminum to ensure maximum rigidity.

The mounting base acts as the anchor for the entire system, locking the platen securely to your machine's frame. This eliminates any lateral movement or "shifting" during the loading and unloading of garments. When the platen stays perfectly in place, your registration remains consistent across every shirt in the batch. For multi-color prints or intricate DTF transfers, this level of stability is the difference between a retail-ready product and a misprint.

The Benefits of the 16" x 20" Printing Area

The "1620" in the model name refers to the generous 16 x 20 inch printing surface. This is the industry-standard size for large back graphics and full-chest designs. The Hydro1620 Platen with Mounting Base allows you to maximize the print area on adult garments from size Small to 3XL.

Having a larger platen means you don't have to reposition the shirt multiple times for oversized graphics. You can lay the garment flat, align the design once, and complete the press in a single cycle. This saves valuable seconds on every shirt, which adds up to hours of saved time over a week of production. The large surface area is also ideal for pressing multiple small items, like neck labels or pocket logos, at the exact same time.

Quick-Change Mounting System Technology

In a busy shop, switching between different platen sizes should not take more than a few seconds. The Hydro1620 Platen with Mounting Base features a sophisticated quick-release mechanism.

This system allows the operator to swap the 1620 platen for a smaller sleeve or youth platen without using any tools. The mounting base remains fixed to the machine, while the platen slides or clips into place with perfect alignment. This modularity is essential for shops that handle a diverse range of orders throughout the day. It allows you to transition from a bulk order of t-shirts to a custom run of hoodies with minimal downtime. Efficiency in changeovers is a key driver of overall shop profitability.

Superior Heat Distribution and Retention

Heat management is critical for the proper curing of inks and adhesives. The aluminum construction of the Hydro1620 Platen with Mounting Base is an excellent thermal conductor.

The platen absorbs heat from the upper element and distributes it evenly across the entire 16x20 surface. This prevents "cold spots" at the edges of the platen, which can lead to peeling or incomplete ink curing. When the bottom platen is warm, it also pre-heats the garment from below, speeding up the overall pressing time. This thermal efficiency ensures that your transfers are bonded deeply into the fabric fibers for maximum wash durability.

Ergonomic Design for Fast Garment Loading

The shape of the Hydro1620 Platen with Mounting Base is designed with the operator's workflow in mind. The edges are often tapered or rounded to allow for easy "threading" of the garment onto the board.

Threading a shirt involves sliding it over the platen so that only one layer of fabric is exposed to the heat. This prevents seams, buttons, or the back of the shirt from interfering with the print area. The mounting base provides enough clearance from the machine frame to allow for easy movement of the fabric. This ergonomic setup reduces physical strain on the operator and allows for much faster loading speeds. A faster loading process directly translates to a higher "shirts-per-hour" output.

Durable Silicone Padding and Surface Protection

Every Hydro1620 system comes equipped with a high-density silicone rubber pad. This pad is essential for providing the "cushion" needed to absorb garment irregularities like seams or zippers.

The Hydro1620 Platen with Mounting Base utilizes industrial-grade silicone that can withstand thousands of high-heat cycles without losing its shape. This padding ensures that the pressure from the heat press is applied uniformly across the entire design. Many professionals also choose to wrap the platen in a Teflon cover for added protection. A Teflon wrap makes it even easier to slide garments on and off and protects the silicone from stray ink or adhesive.

Compatibility with Industry-Leading Machines

The mounting base of the Hydro1620 is designed to be compatible with a wide range of professional heat presses and DTG printers. Whether you use a manual swing-away press or a high-end pneumatic system, the Hydro1620 Platen with Mounting Base can often be integrated with a simple adapter.

This cross-platform compatibility makes it a versatile investment for growing businesses. If you upgrade your printer or press in the future, you can often take your Hydro1620 platens with you. This protects your initial investment and ensures a consistent workflow even as your equipment evolves. Standardizing your platens across multiple machines also simplifies your production planning.

Reducing Misprints and Material Waste

Misprints are one of the biggest hidden costs in the garment decoration industry. A shirt that is loaded crookedly or a design that shifts during the press results in a total loss of the garment and the transfer.

The Hydro1620 Platen with Mounting Base significantly reduces these errors by providing a stable and repeatable loading platform. The rigidity of the aluminum prevents the platen from bowing or flexing under high pressure. This ensures that the pressure is 100% consistent from the center to the very corners of the 16x20 area. When you eliminate the variables that cause failures, your profit margins increase and your customer satisfaction improves.

Maintenance Tips for Long-Term Reliability

The Hydro1620 system is built for industrial use, but simple maintenance will extend its life even further. Regularly inspect the mounting base bolts to ensure they remain tight and secure.

Wipe down the aluminum surface of the Hydro1620 Platen with Mounting Base to remove any dust or lint that might get under the silicone pad. If the silicone pad becomes indented or damaged, it should be replaced to maintain even pressure. Avoid using sharp tools near the platen that could scratch the aluminum or tear the padding. With minimal care, this platen system will remain a cornerstone of your production for many years.

Conclusion: The Foundation of Professional Printing

The Hydro1620 Platen is more than just a metal board; it is a precision-engineered production tool. It provides the stability, heat management, and ergonomic efficiency required for high-level garment decoration.

By investing in a high-quality mounting system, you are ensuring that your shop can handle any job with confidence. From oversized back prints to delicate DTF transfers, the Hydro1620 delivers the results your customers expect. Stop struggling with unstable equipment and upgrade to a professional base system that works as hard as you do.
