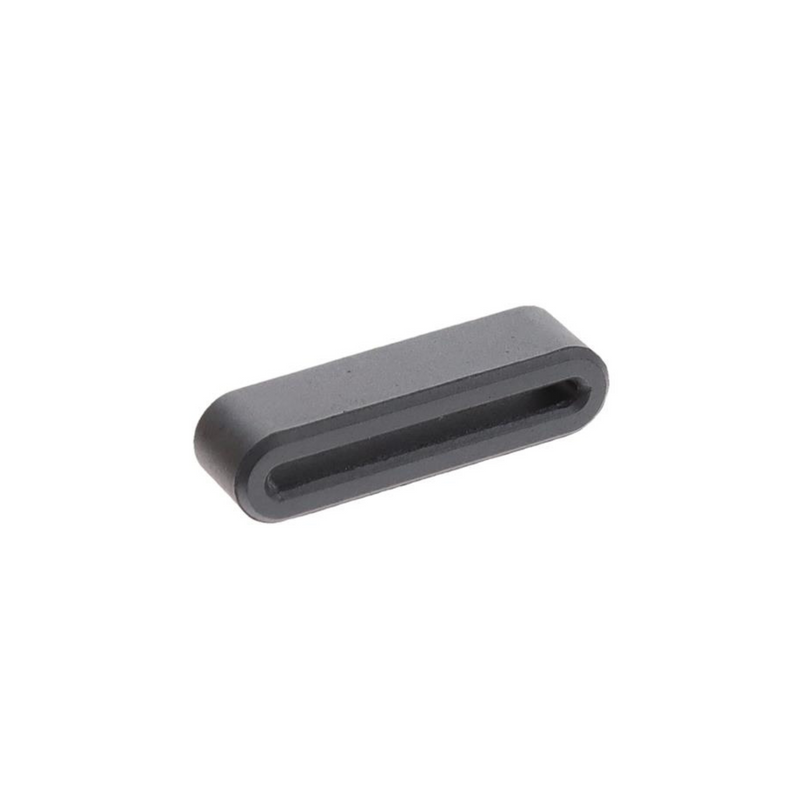

Ferrite Magnet for Printhead Cable

Ferrite Magnet for Printhead Cable

In high-performance printing environments, signal clarity and stable operation are critical. The Ferrite Magnet for Printhead Cable plays a vital role in maintaining signal integrity by minimizing electromagnetic interference (EMI) and radio frequency interference (RFI). Designed for professional DTF, UV, and wide-format printers, this small but powerful component helps ensure consistent print quality, longer cable life, and smoother machine performance.

What is a Ferrite Magnet for Printhead Cable?

A ferrite magnet is a passive electronic component made from iron oxide and other metallic elements. When placed around a cable—particularly a printhead data or power cable—it acts as an EMI suppressor, filtering high-frequency noise from the signals that travel through the wire. This filtering enhances data transmission stability, reducing print errors and potential malfunctions.

Key Features and Benefits

EMI and RFI Noise Suppression

One of the core functions of this magnet is to absorb and suppress electromagnetic interference. It eliminates high-frequency noise that could otherwise interrupt printhead communication and lead to distorted or inconsistent output.

Improves Printhead Longevity

By stabilizing electrical signals, the component helps prevent voltage spikes or irregular currents from reaching the printhead. This reduces wear over time and can extend the life of your printing equipment.

Tool-Free Installation

Most ferrite cores for printhead cables come in a snap-on or clamp-on design. They can be installed within seconds without the need for specialized tools or technical expertise.

Compact and Lightweight

With a small footprint, these magnets don’t interfere with cable routing or take up valuable internal space in your printer. Their non-intrusive design ensures seamless integration.

Product Specifications

Material: Manganese-zinc ferrite

Color: Black matte finish

Compatibility: Designed for DTF, UV, sublimation, and inkjet printers

Inner Diameter Options: 3mm, 5mm, 7mm, 9mm

Installation: Snap-on / clamp-on

Weight: Approx. 10g per unit

Temperature Range: -40°C to +125°C

Use Cases

Signal Protection in High-Speed Printers

Modern printheads communicate with their control boards at extremely high frequencies. Any external interference—especially in factories or office spaces with lots of electronic devices—can cause signal disruptions. This magnet helps shield the cable, maintaining clean data flow.

Cleaner Prints, Fewer Errors

Unstable signals can cause misfiring nozzles, banding, or inaccurate color registration. A simple snap-on filter like this can drastically reduce print defects by stabilizing voltage and preventing interference.

Protection for Expensive Components

Printheads are among the most expensive parts of any printer. Using this magnet adds an extra layer of protection, potentially saving hundreds of dollars in long-term repairs or replacements.

Installation Tips

Identify the power or data cable connecting your printer’s main board to the printhead.

Snap the ferrite magnet around the cable, ideally near the connection point.

Ensure the magnet is secure and doesn’t pinch or bend the wire.

For longer cables, using magnets at both ends can enhance filtering.

Ferrite Magnet for Printhead Cable

Order Yours Today

Protect your cables. Improve your prints. Extend your machine's life. This affordable, easy-to-install filter can make a big difference in your daily operations.

 Check Out Our Other Products

Final Tip

Even if your printer appears to be operating perfectly now, taking preventive measures can significantly impact its long-term performance. Installing ferrite magnets proactively is a smart, low-cost way to guard against potential future issues caused by electromagnetic or radio frequency interference.

In environments where multiple devices are running simultaneously—like print shops, offices, or industrial spaces—electrical noise can accumulate over time and affect sensitive components such as communication cables and printheads. These disruptions may not always be noticeable immediately but can lead to subtle issues like intermittent errors, misfiring nozzles, or color inconsistencies.

By adding this compact filter early on, you're not just fixing a problem—you’re preventing one. It's a small investment that offers ongoing protection, ensuring cleaner prints, improved signal reliability, and fewer interruptions during operation. Think of it as a silent guardian working in the background to keep your entire printing system healthy and efficient.
Being proactive with even the smallest components can help avoid costly downtime, reduce maintenance expenses, and ultimately extend the lifespan of your equipment.
