High-Performance Power Management with the Dryer AC Contactor

In industrial drying systems, managing high-voltage electricity is a critical task. The Dryer AC Contactor serves as the heavy-duty switch that controls power to heating elements and motors. Unlike a standard wall switch, this component is designed to handle thousands of cycles under high electrical loads. It acts as the bridge between the low-voltage control circuit and the high-voltage power supply. Without a reliable contactor, an industrial dryer cannot operate safely or efficiently. This guide explores the mechanical function, safety benefits, and maintenance of this essential electrical part.

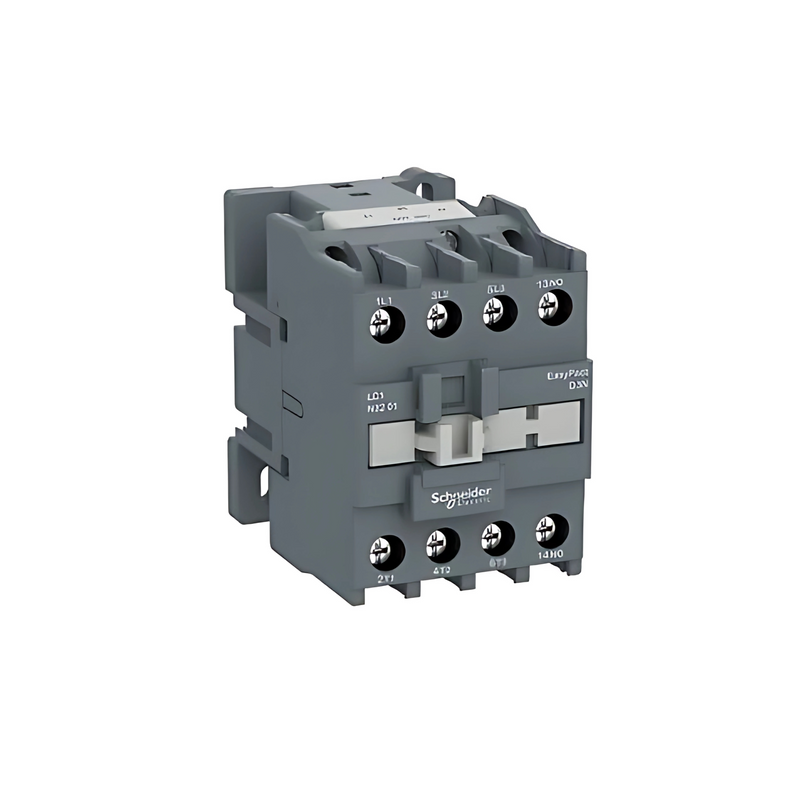

What is a Dryer AC Contactor?

A contactor is an electromechanical switching device used for joining or interrupting electrical circuits. The Dryer AC Contactor specifically manages the high current required by large drying machines. It consists of a coil, a set of contacts, and an enclosure.

When electricity flows through the internal coil, it creates a magnetic field. This field pulls the contacts together, allowing the main power to flow to the dryer’s heater or blower. When the control signal stops, a spring pushes the contacts apart to break the circuit. This design allows a small digital thermostat to control a massive amount of electricity safely. It is the heart of the power distribution system in any DTF oven or industrial textile dryer.

The Role of the Contactor in Heating Systems

Industrial dryers rely on powerful heating elements to cure inks and dry fabrics. These elements draw a significant amount of amperage that would melt a standard relay. The Dryer AC Contactor is built with large, high-conductivity contact points to manage this heat.

The contactor ensures that the heating elements turn on and off precisely as needed. This prevents the dryer from overheating and protects the materials being processed. By cycling the power accurately, the contactor helps maintain a consistent internal temperature. Consistent heat is vital for achieving a perfect cure on DTF films or garments. A high-quality contactor ensures that your production quality remains stable throughout the day.

Protecting Motors and Blower Units

In addition to heating, dryers use powerful motors to circulate hot air. The Dryer AC Contactor provides the necessary "inrush" current protection for these motors. When a motor starts, it briefly pulls much more power than it does while running.

A contactor is specifically designed to handle this initial surge without welding its contacts together. This durability protects the motor from "single-phasing" or receiving inconsistent voltage. If a contactor fails, the motor might hum or burn out, leading to expensive repairs. Using a dedicated AC contactor ensures that your ventilation system starts smoothly every time. This constant airflow is essential for exhausting moisture and fumes from the drying chamber.

Safety Features and Arc Suppression

Switching high-voltage electricity creates a small electrical arc every time the contacts open or close. Over time, these arcs can pit the metal surfaces and cause the switch to fail. The Dryer AC Contactor is equipped with arc chutes and specialized materials to extinguish these sparks quickly.

The housing is made from non-conductive, flame-retardant polymers for maximum safety. This prevents electrical shorts and protects the rest of the control panel from fire hazards. Modern contactors also feature "auxiliary contacts" that can signal the printer's CPU if the device has failed. This integrated safety approach is why contactors are preferred over simple relays in high-power applications. It provides multiple layers of protection for both the operator and the facility.

Durability for High-Cycle Environments

Industrial production often requires dryers to run for several shifts per day. This means the Dryer AC Contactor must engage and disengage hundreds of times an hour. Standard electrical components would wear out in weeks under such a heavy workload.

Professional contactors are rated for millions of mechanical cycles. They use silver-alloy contact tips that resist oxidation and wear. This long-term durability reduces the need for frequent maintenance and prevents unexpected downtime. When you invest in a high-grade contactor, you are ensuring the reliability of your entire production line. It is a small component that prevents very large and expensive delays.

Troubleshooting Common Contactor Issues

How do you know if your Dryer AC Contactor is failing? One common sign is a loud "chattering" or humming noise coming from the electrical panel. This often indicates a weak coil or dirty contact points that cannot stay closed.

Another sign is when the dryer heater stays on even after the thermostat reaches the target temperature. This happens when the contacts "weld" shut due to excessive sparking or age. If you notice burnt smells or visible soot on the contactor housing, it must be replaced immediately. Regularly inspecting the contactor for signs of heat discoloration can prevent a total system failure. Keeping the electrical cabinet clean and cool will also extend the life of this part significantly.

Choosing the Right Contactor for Your Dryer

Not all contactors are interchangeable. You must match the Dryer AC Contactor to the specific voltage and amperage of your machine. Most industrial dryers use either 220V or 380V power supplies.

The "Pole" count is also important; most dryers require a 3-pole or 4-pole contactor to manage multi-phase power. Check the "Full Load Amps" (FLA) rating on your dryer's data plate before ordering a replacement. It is always safer to choose a contactor with a slightly higher amp rating than your machine requires. This provides a safety margin and ensures the component won't overheat during long production runs. Always consult with a qualified electrician when selecting or installing high-voltage parts.

Installation and Wiring Best Practices

Replacing a Dryer AC Contactor requires careful attention to detail. Always disconnect the main power supply before opening the electrical cabinet. Use high-quality, heat-resistant wire for all connections to the contactor terminals.

Ensure that the terminal screws are tightened to the manufacturer's specified torque. Loose connections create resistance, which leads to heat and eventual failure. Label each wire clearly to ensure they are reconnected to the correct poles. A clean, organized wiring job makes future troubleshooting much easier. Once installed, perform a test cycle to ensure the contactor engages firmly and without excessive noise.

The Importance of a Climate-Controlled Panel

The lifespan of a Dryer AC Contactor is affected by its environment. Excessive heat inside the electrical cabinet can weaken the internal springs and coil. If your dryer operates in a hot warehouse, ensure the control panel has adequate ventilation or cooling fans.

Dust is another enemy of electrical contacts. If grit enters the contactor housing, it can prevent a clean connection and cause arcing. Using a sealed enclosure with proper air filtration keeps the Dryer AC Contactor clean and functional. This small step in facility management can double the life of your electrical components. It ensures that your drying system remains a reliable part of your business for years to come.

Conclusion: The Foundation of Reliable Drying

A Dryer AC Contactor is much more than a simple switch. It is a precision-engineered safety device that manages the massive energy required for industrial curing. By choosing high-quality contactors, you protect your motors, your heaters, and your employees.

Its ability to handle high cycles and surges makes it the perfect choice for busy DTF and textile shops. Understand your machine's electrical requirements and perform regular inspections of your power components. A well-maintained contactor ensures that your dryer stays hot and your production stays on schedule. Invest in quality electrical hardware to build a foundation for long-term business success.
