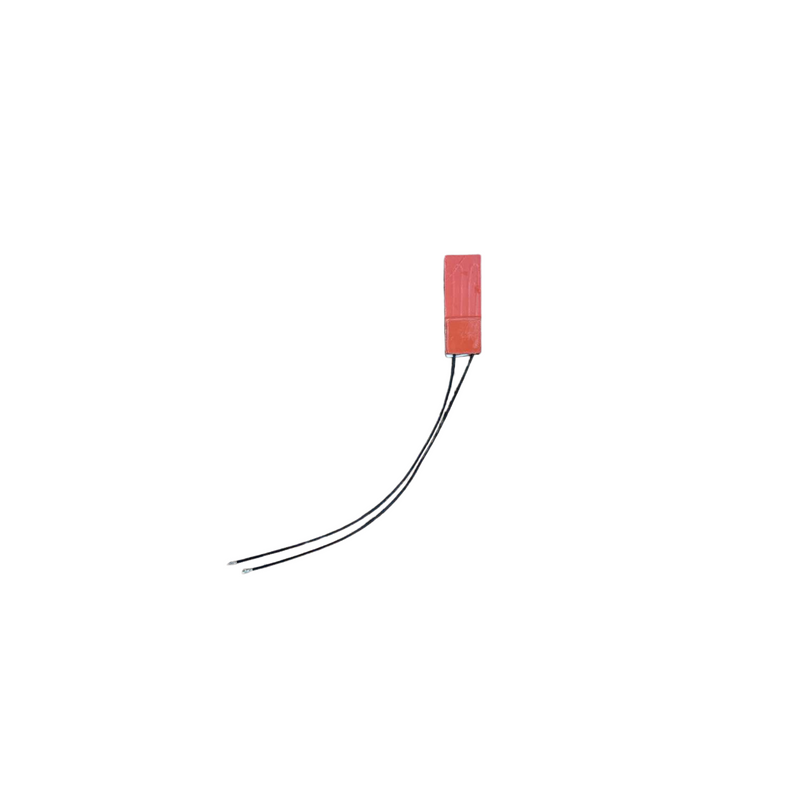

Precision Monitoring with the UV LED Cooling Tank Digital Thermostat Sensor Wire

Thermal management is the most critical factor in the lifespan of a UV LED curing system. These high-powered lights generate significant heat that must be dissipated through a liquid cooling tank. The UV LED Cooling Tank Digital Thermostat Sensor Wire is the vital link in this safety chain. It provides real-time temperature data to the printer's control system. This ensures that the cooling fluid remains within its optimal operating range. Without accurate sensing, the UV lamps could overheat and suffer permanent damage. This guide explores the technical role and importance of this specialized sensor wire in digital printing environments.

The Role of Temperature Sensing in UV Systems

UV LED lamps are preferred for their efficiency and instant drying capabilities. However, they are highly sensitive to thermal fluctuations. If the internal temperature rises too high, the light intensity drops and the diode lifespan decreases. The UV LED Cooling Tank Digital Thermostat Sensor Wire acts as the primary monitor for the cooling medium.

This sensor is typically a high-accuracy thermistor or thermocouple. It sits directly inside the cooling tank or within the flow line. It converts thermal energy into an electrical signal that the digital thermostat can read. This constant feedback loop allows the system to adjust fan speeds or trigger alarms. It is the first line of defense against hardware failure in professional UV printers.

Precision Engineering for Accurate Readings

In a high-speed production environment, a delay of a few degrees can be costly. The UV LED Cooling Tank Digital Thermostat Sensor Wire is engineered for rapid thermal response. The sensor tip is usually encased in a stainless steel or copper housing. These metals offer excellent thermal conductivity and resist corrosion from the cooling fluid.

The wire itself is shielded to prevent electrical interference from the printer’s motors and power supplies. High-resolution digital thermostats require a clean signal to provide an accurate readout. If the sensor wire is damaged or unshielded, it may report "false" temperatures. This could lead to unnecessary shutdowns or, worse, a failure to detect a real overheating event. Quality wiring ensures that your data is always reliable and precise.

Ensuring Compatibility with Digital Thermostats

Not all sensors are compatible with every digital control unit. Most UV LED cooling systems use a 10K or 50K NTC thermistor. The UV LED Cooling Tank Digital Thermostat Sensor Wire must match the resistance curve of the controller. When purchasing a replacement, you must verify the connector type and the resistance value.

Standard connectors make installation a simple "plug-and-play" process. However, some industrial printers use specialized aviation-style plugs for a more secure connection. Using the correct sensor wire ensures that the temperature displayed on your screen is 100% accurate. This calibration is essential for maintaining the chemical balance of the UV inks and the health of the LED diodes.

Durability in Liquid Environments

Cooling tanks use a mixture of water and specialized additives to prevent algae and corrosion. The UV LED Cooling Tank Digital Thermostat Sensor Wire must be completely waterproof and chemical resistant. The insulation is typically made from high-grade PVC or Teflon.

These materials prevent the cooling fluid from seeping into the wire and causing a short circuit. A shorted sensor will usually display an "Error" or a maximum temperature reading, causing the printer to stop. By using a sensor wire designed for immersion, you ensure long-term stability in your cooling loop. This durability is what allows professional printers to run 24/7 without thermal issues.

Protecting the Expensive UV LED Module

A replacement UV LED lamp module can cost thousands of dollars. In comparison, the UV LED Cooling Tank Digital Thermostat Sensor Wire is a very affordable component. It is a small investment that protects a massive asset. If the cooling pump fails, the temperature in the tank will rise rapidly.

The sensor wire detects this rise and sends a signal to the digital thermostat. The thermostat then triggers a "hard stop" to the UV lamps. This prevents the delicate diodes from burning out due to heat soak. Every professional operator should consider the sensor wire as a vital insurance policy for their hardware. It is the component that makes unattended printing safe and reliable.

Installation and Placement for Best Results

The location of the UV LED Cooling Tank Digital Thermostat Sensor Wire is critical for accuracy. It should be placed in the "return" line where the heated fluid enters the tank. This gives the most accurate reading of the heat being pulled away from the UV lamps.

Ensure that the wire is secured and not touching any vibrating parts or sharp edges. Constant vibration can cause the insulation to wear down over time. Use cable ties to organize the sensor wire away from high-voltage power lines. This reduces the risk of electromagnetic interference (EMI) affecting the temperature readout. A clean installation leads to a more stable and predictable cooling system.

Troubleshooting Sensor Faults

If your printer displays an "Overheat" error but the tank feels cool, the sensor wire may be at fault. Common issues include a broken internal wire or a loose connection at the terminal. You can test the UV LED Cooling Tank Digital Thermostat Sensor Wire using a basic multimeter.

Measure the resistance at room temperature and compare it to the manufacturer’s chart. If the resistance is "infinite," the wire is broken. If it is "zero," there is a short circuit. Replacing a faulty sensor wire is much cheaper than calling out a service technician. Keeping a spare wire in your toolkit is a smart move for any busy print shop. It ensures you can get back to work in minutes rather than days.

Impact on Print Quality and Curing

Consistent temperature leads to consistent UV output. If the cooling system fluctuates, the intensity of the UV light may change slightly. This can lead to uneven curing of the ink on the substrate. The helps maintain a steady state.

When the temperature is stable, the ink cures perfectly every time. This is especially important for high-speed printing on non-porous materials like plastic or glass. Accurate thermal monitoring ensures that the ink adheres correctly and reaches its full hardness. This reliability is what allows you to deliver high-quality products to your customers consistently.

Maintenance and Cleaning Tips

Over time, mineral deposits or "scale" can build up on the sensor tip. This layer of buildup acts as an insulator and slows down the sensor's reaction time. During your monthly maintenance, you should inspect the UV LED Cooling Tank Digital Thermostat Sensor Wire.

Gently clean the sensor tip with a soft cloth and a mild descaling solution if necessary. Ensure the electrical connections are tight and free of any oxidation. A clean sensor is a fast sensor, and speed is vital when detecting a sudden heat spike. These simple steps will extend the life of your cooling system and your UV lamps.

Conclusion: The Essential Thermal Sentinel

The is a small but mighty part of your digital printer. It provides the data needed to keep your most expensive components safe and cool. Its accuracy, durability, and reliability are the foundation of a professional UV curing setup.

By understanding how this sensor works, you can better protect your equipment and improve your print quality. Don't wait for a thermal error to check your cooling system. Prioritize high-quality sensor wiring and regular maintenance for a smooth, profitable production line. A well-monitored printer is a long-lasting and successful business tool.
