Limit Switch For Head Carriage and Ink Stack

Limit Switch
Precision Meets Protection

The Limit Switch is a small but powerful component that plays a big role in protecting your printer’s printhead and mechanical systems. Designed for use in DTF, DTG, and other inkjet-based printers, this sensor provides accurate position detection to prevent carriage overshooting, ink stack misalignment, and printhead damage.

Whether you're a professional print shop owner or a DIY printer builder, this slot sensor is essential for maintaining smooth mechanical operation and extending the lifespan of your equipment.

What is a Slot Type Limit Switch?

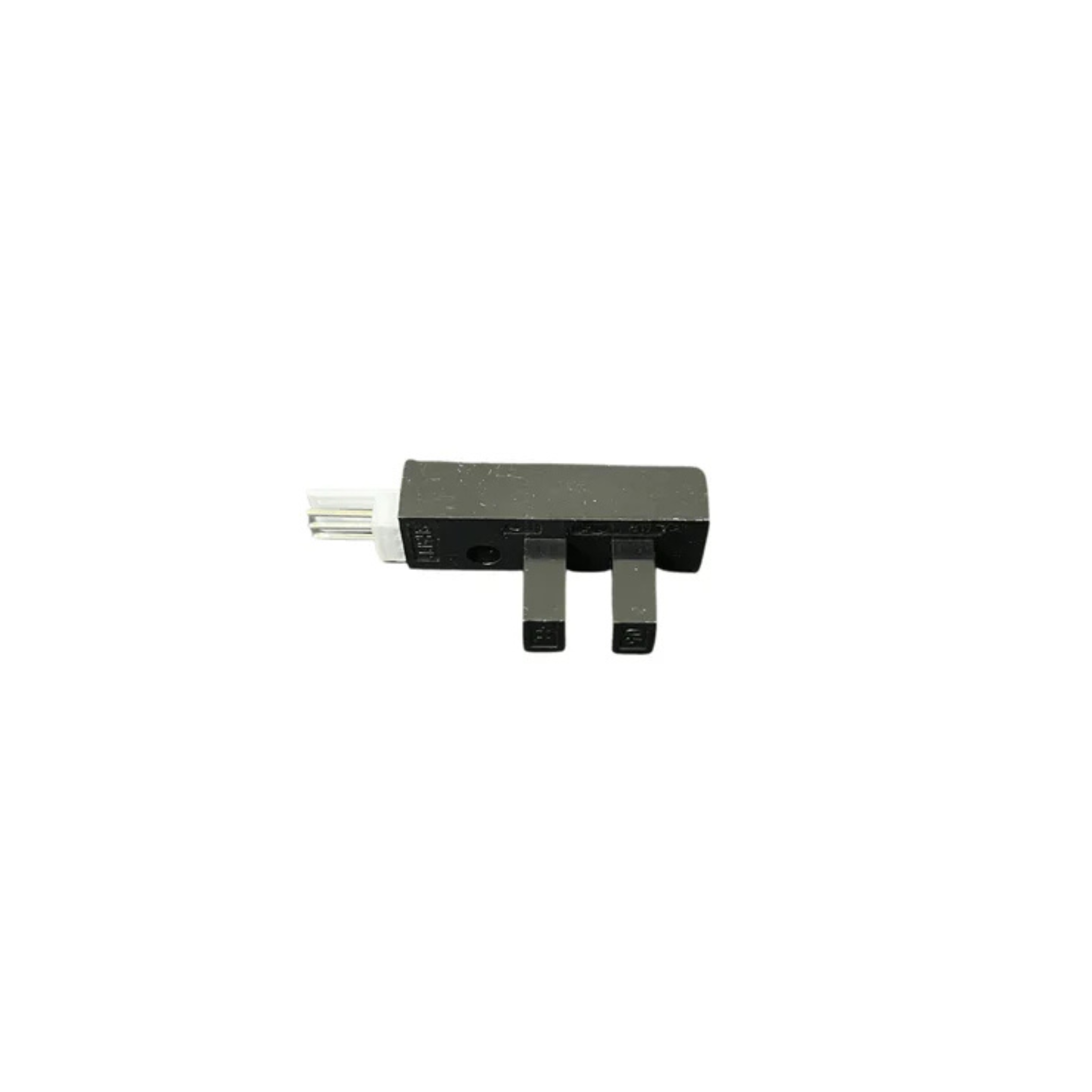

A limit switch is a non-contact sensor that detects the presence or movement of an object passing through its detection slot. In printers, it’s commonly installed at critical movement points such as:

• The printhead carriage return zone

• The ink pump or capping station

• Paper feed or loading positions

It acts as a safeguard by sending a signal to the printer's logic board when the printhead or ink assembly reaches its designated position. If a problem is detected, the system stops motion to avoid damage.

For a general overview of limit switches in electronics, visit:
👉 Wikipedia – Limit Switch

Check Out Our Other Products

Limit Switch Key Features

• High-Precision Detection: Accurately senses head carriage and ink stack positions.
• Compact Design: Fits in tight printer assemblies without interfering with movement.
• Quick Response Time: Stops motion instantly upon detection, minimizing risk of mechanical failure.
• Durable Construction: Built with heat-resistant materials for long-lasting performance.
• Universal Compatibility: Works with most Epson-based and open-source DTF/DTG printer systems.
• Easy Installation: Plug-and-play setup using standard signal and power wiring.

Benefits and Use Cases

The Limit Switch serves both functional and protective roles within your printing system. It ensures that all moving components return to their home position safely and stop at exactly the right place.

Protects Against:

• Printhead crashes into side panels or the ink capping station

• Ink overflow due to improper stacking detection

• Carriage belt damage caused by runaway motion

 Ideal for:

• DTF & DTG printers using Epson-based printheads

• UV printers with automated ink stacking systems

• Custom-built or modified printers

• Users upgrading from mechanical microswitches to optical detection

 Installation & Compatibility

This limit switch is designed for easy installation, even for users with limited technical experience. The standard 3-pin connector fits most printer mainboards. Simply mount the switch at the detection point, plug it in, and calibrate using your printer’s firmware or configuration tool.

Most commonly compatible with:

• Epson L1800, XP-600, I3200, and DX5-based printers

• Open-source printer control boards like Smoothieware, Duet, or RepRap

• DTF ink stack systems with capping/pump modules

What Customers Are Saying

⭐⭐⭐⭐⭐
"This switch saved my printhead more than once. Super reliable and quick to respond."
— Jason P., Print Farm Manager

⭐⭐⭐⭐⭐
"Easy to install, works right out of the box. Perfect for my converted L1800."
— Sophie L., DIY Printer Builder

⭐⭐⭐⭐⭐
"A must-have for any serious printer setup. I wouldn’t run my machine without it."
— David M., UV DTF Specialist
