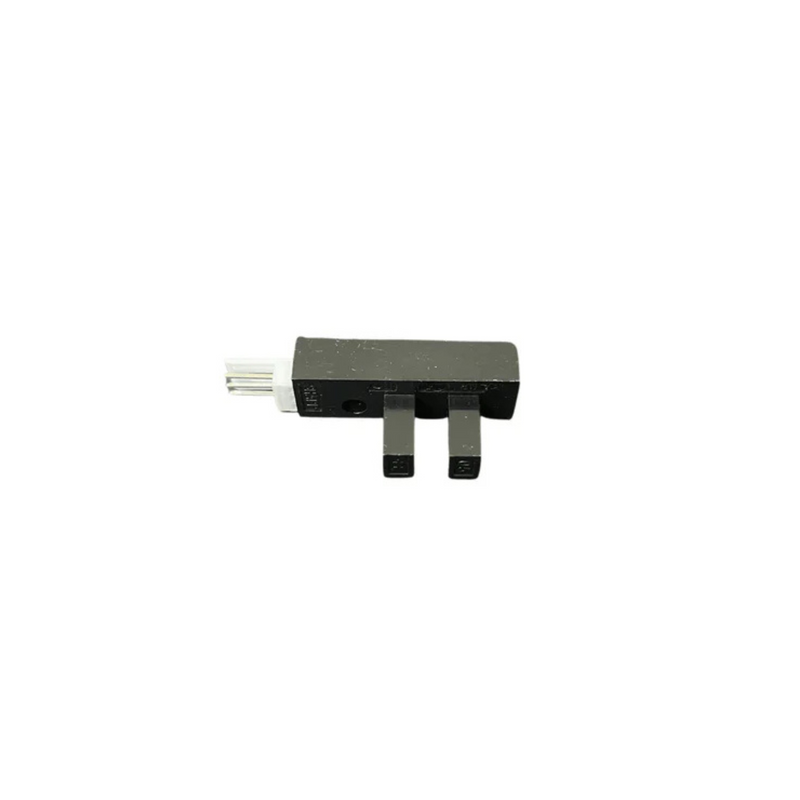

Limit Switch For Head Carriage and Ink Stack
In Stock
The Critical Function of the Limit Switch in Digital Printing
The Limit Switch For Head Carriage and Ink Stack is a small but mighty safety component. It serves as the physical "stop" sign for the moving parts of your printer. This sensor tells the printer’s computer exactly where the mechanical limits are located. It prevents the printhead carriage from crashing into the frame or the ink stack. Without a functioning limit switch, the machine would lose its sense of physical boundaries. This would lead to severe hardware damage and costly repairs.
How the Limit Switch Protects the Head Carriage
The printhead carriage moves at high speeds during the printing process. The Limit Switch is positioned at the end of the rail to define the home position. When the carriage touches the switch, it sends an electrical signal to the mainboard. This signal tells the motor to stop moving in that direction. This precise detection is what allows the printer to perform accurate "homing" every time you turn it on. It ensures that the carriage always knows its starting point for every design.
The Role in Ink Stack Alignment
The ink stack, also known as the capping station, must align perfectly with the printhead. The Limit Switch controls the vertical or horizontal movement of the capping assembly. It ensures that the ink stack rises to the exact height needed to create an airtight seal. If the switch fails, the ink stack might not rise high enough, leaving the nozzles exposed. Conversely, it could rise too high and apply excessive pressure to the delicate printhead. A calibrated switch maintains the perfect balance for capping and cleaning.
Signs of a Faulty or Dirty Limit Switch
Mechanical failures in the Limit Switch often present as "Fatal Errors" on the printer’s display. You might hear a grinding noise as the carriage tries to move past its physical limits. Sometimes, the printer may fail to initialize or "home" correctly upon startup. In many cases, the switch isn't broken but is simply covered in dust or ink mist. Because these sensors are located near the printing area, they are prone to contamination from Supplies like adhesive powder.
Maintenance Tips for Optical and Mechanical Switches
There are two main types of switches: mechanical (lever) and optical (infrared). Mechanical switches should be checked for "stickiness" caused by dried ink. Optical switches feature a small "U" shaped sensor that can be blocked by dust. Cleaning these sensors with a gentle puff of compressed air is usually sufficient. Avoid using liquid cleaners directly on the sensor, as this can cause an electrical short. Keeping these switches clean is the easiest way to prevent "Carriage Slam" errors.
Replacing a Broken Limit Switch
If a Switch is physically damaged or has a dead internal spring, it must be replaced. These parts are usually connected by a simple 2-pin or 3-pin wire harness. Installation is straightforward and does not require advanced technical skills. Ensure that the new switch is mounted in the exact same position as the old one. Even a one-millimeter difference can affect the alignment of the printhead over the ink stack. Proper positioning is key to maintaining the vacuum seal during cleaning cycles.
Preventing Mechanical Wear and Tear
High-volume production environments put a lot of stress on the Switch For Head Carriage and Ink Stack. Each time the printer cleans itself or finishes a job, the switch is activated. Over thousands of cycles, the internal metal contacts can wear down. Periodically inspecting the mounting screws is a good habit. Vibration from the printer can sometimes loosen the switch, leading to intermittent "sensor not found" errors. A tight, secure switch leads to a more reliable production day.
The Connection Between Sensors and Software
The printer’s firmware relies entirely on the data provided by the Limit Switch. When the switch is triggered, the software executes specific commands, such as "Stop Motor" or "Start Capping." If the sensor sends a "false positive" signal, the printer will stop mid-job. This often happens if a piece of debris or a loose wire triggers the switch. Ensuring that the path to the limit switch is clear of obstructions is vital for uninterrupted printing.
Why Quality Parts Matter for Longevity
Not all switches are created equal. Industrial-grade limit switches are designed for millions of activations. They feature gold-plated or silver-plated contacts to prevent oxidation. At DTF Print Depot, we recommend using high-quality replacements to ensure the safety of your expensive printhead. A cheap switch might save a few dollars now, but a failure could result in a ruined Epson I3200 head. Always prioritize reliability when it comes to the safety sensors of your machine.
Universal Compatibility and Retrofitting
Many DTF and UV-LED printers use standardized limit switch designs. This makes it easy to find compatible parts for different brands. Whether you are using a 60cm wide printer or a small A3 desktop conversion, the logic remains the same. The Switch is the unsung hero of the hardware world. It works silently in the background to keep your carriage on track and your ink stack aligned. It is a small investment that provides massive protection for your entire system.
Conclusion: Small Sensor, Big Protection
The Switch For Head Carriage and Ink Stack is the ultimate safeguard for your printer. It defines the physical workspace and protects the most sensitive components from collision damage. By keeping these sensors clean and replacing them when they show signs of wear, you ensure a long life for your machine. Consistent maintenance of these small parts leads to consistent, high-quality output for your business.
