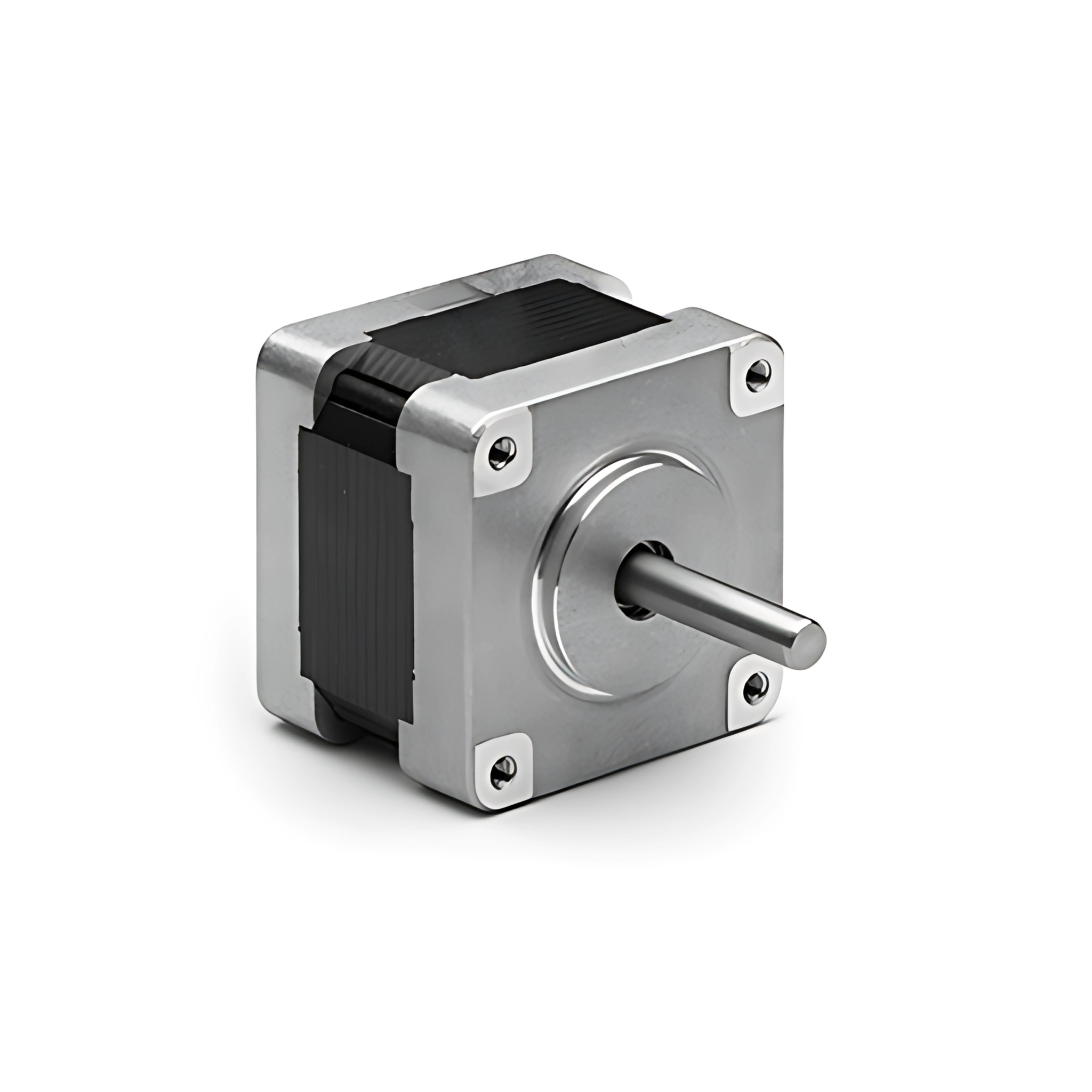

The Heart of Precision: A Complete Guide to Stepper Motors in 2026

In the modern industrial landscape, precision is the currency of success. Whether you are running a high-speed DTF printing farm or a specialized CNC workshop, the Stepper Motor is the silent engine driving your accuracy. Unlike standard DC motors that spin continuously, a Stepper Motor moves in discrete, measurable increments. This "step-by-step" movement allows for incredible control over position, speed, and torque. In 2026, understanding the mechanics of these motors is essential for any technical professional.

Maintaining a consistent production schedule in 2026 requires more than just high-quality film; it demands a robust inventory of reliable hardware components. From precision sensors to essential mechanical upgrades, having the right backup components on hand prevents costly downtime and ensures your "Ready-to-Press" workflow remains uninterrupted. Explore our complete collection of Parts & Accessories to find everything you need to keep your industrial printing setup running at peak performance.

How a Stepper Motor Works: The Science of Steps

The fundamental magic of a Stepper Motor lies in its internal structure. It consists of a rotating permanent magnet (the rotor) surrounded by multiple electromagnets (the stator). When these electromagnets are energized in a specific sequence, the rotor "steps" to align with the magnetic field.

Key Technical Characteristics:

• Open-Loop Control: They can move to a specific position without needing expensive feedback sensors.

• Holding Torque: They can hold a position firmly even when the motor is not rotating.

• High Repeatability: They return to the exact same spot every time, crucial for multi-pass printing.

• Variable Speed: They can transition from a slow crawl to high-speed movement smoothly.

The Role of Stepper Motors in DTF Printing

In the world of Direct-to-Film (DTF) printing, the Stepper Motor manages the most critical task: film advancement. If the film moves even 0.1mm too far or too short, you will see "banding" lines in your print. A high-quality motor ensures the PET film moves perfectly in sync with the printhead’s passes.

Critical Components in the Printing Chain:

1. Stepper Motor Belt S2M420-10: This belt translates the motor's rotation into linear motion for the film or the carriage.

2. Motor Drivers: These electronic modules "tell" the motor exactly how many steps to take.

3. Pulley Systems: These adjust the torque and speed ratio for different film weights.

Different Types of Stepper Motors

Not all Stepper Motors are built for the same job. Choosing the right type depends on your torque and resolution requirements.

• Bipolar Stepper Motors: These offer higher torque for their size and are the standard in modern 3D printers and DTF machines.

• Unipolar Stepper Motors: Easier to drive electronically but generally offer less torque.

• Hybrid Stepper Motors: These combine the best of both worlds, offering high resolution and high torque for industrial-grade performance.

Maintaining Your Stepper Motor for 24/7 Production

If you are running a "Passive Income" transfer business, your motors are working around the clock. Over time, heat and dust can degrade performance.

Maintenance Best Practices:

• Heat Management: Use a UV LED Cooling Tank Digital Thermostat to monitor ambient temperatures; excessive heat can demagnetize the rotor.

• Belt Tension: Regularly check the Stepper Motor Belt S2M420-10 for signs of wear or slack.

• Lubrication: Keep the motor's lead screws clean and lightly lubricated to reduce friction.

• Electrical Check: Ensure your Switched IEC Socket provides a stable ground to prevent electrical noise from causing "skipped steps."

Troubleshooting Common Stepper Motor Issues

Even the best hardware can run into trouble. Identifying the symptoms early can save your printheads and your margins.

Common Issues and Solutions:

• Skipped Steps: Usually caused by a loose belt or an overloaded motor. Tighten the S2M420-10 belt or reduce the print speed.

• Overheating: This happens if the current (Amperage) sent by the driver is too high. Adjust the driver settings.

• Grinding Noises: This often indicates a mechanical obstruction or a failing bearing within the motor housing.

• Vibrations: Excessive vibration can be solved by adding "dampers" to the motor mounts.

The Importance of Proper Grounding

Static Electricity is a major enemy of electronic motors. As the film moves over the rollers, it generates static that can interfere with the motor's pulse signals. This is why a properly grounded Switched IEC Socket with EMI Filter is vital. It drains away interference, ensuring the Stepper Motor only hears the commands from the motherboard, not the noise from the static.

Future Trends: Stepper Motors in 2026

As we move further into 2026, we are seeing "Closed-Loop Stepper Motors" becoming the new standard. These motors have a built-in encoder that confirms if the step was actually taken. If a step is missed due to an obstruction, the motor corrects itself instantly. This technology is revolutionizing the DTF Transfers Ready-to-Press market by virtually eliminating mechanical printing errors.

Choosing the Right Motor for Your Setup

When upgrading your equipment, look at the NEMA rating (which dictates the physical size) and the Step Angle. Most industrial printers use a 1.8-degree step angle, which provides 200 steps per full revolution. For ultra-fine detail, "Microstepping" drivers can break these 200 steps into thousands of tiny movements, providing a "smooth-as-silk" finish to your graphics.

Conclusion: The Foundation of Reliable Printing

The Step Motor is far more than a simple rotating component. It is the bridge between digital code and physical reality. By maintaining your motors, checking your belts, and ensuring a clean electrical environment, you guarantee the longevity of your printing business. In the competitive world of 2026, precision isn't just a luxury—it's a requirement.
