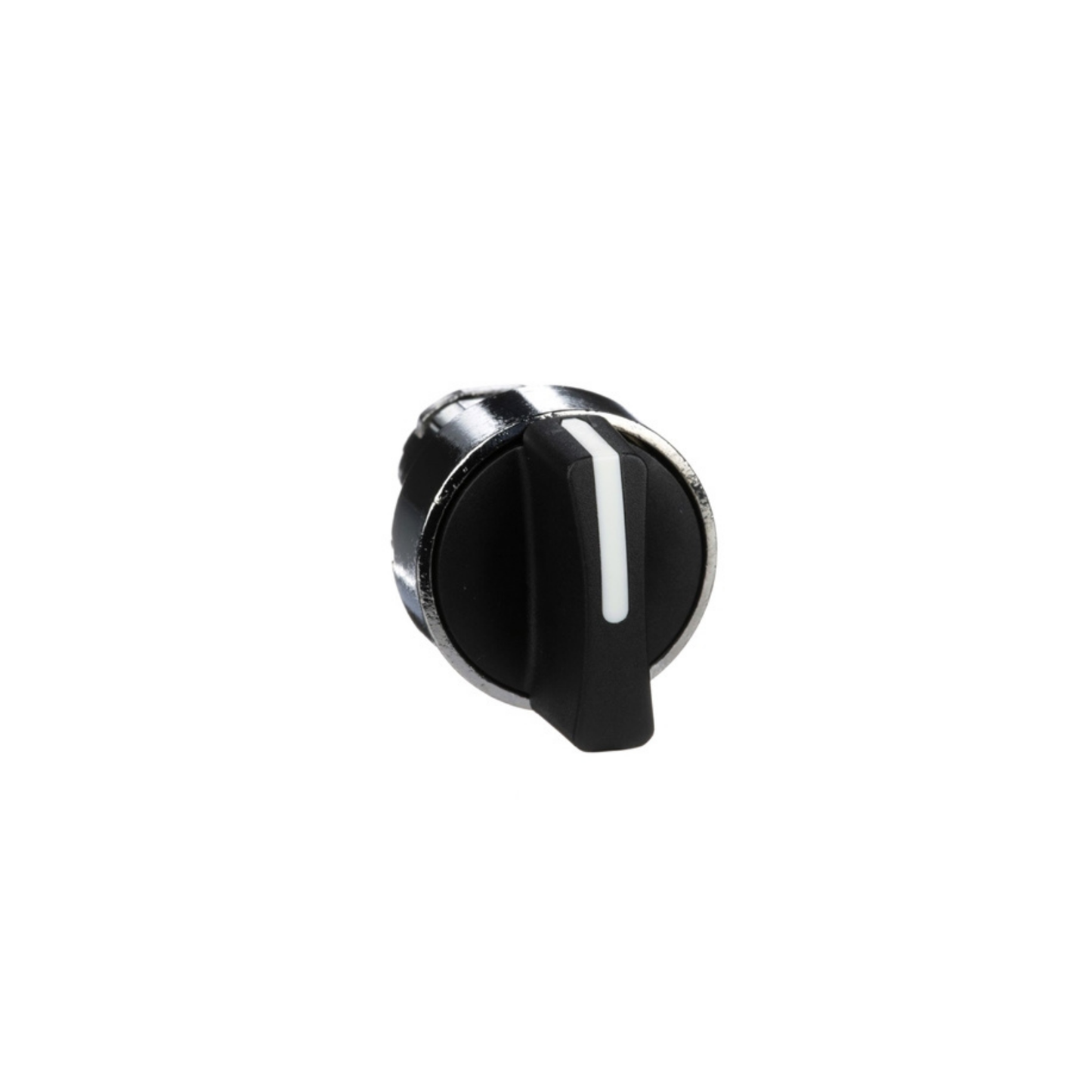

Selector Switch
Sold Out
The Essential Function of the Printer Selector Switch
The Selector Switch is a critical control component in modern industrial printing machinery. It allows the operator to manually toggle between different operational modes or power states. Unlike a simple on/off button, this switch often features multiple positions for complex tasks. It acts as the physical interface for making logic-based choices within the machine's electrical system. High-quality switches ensure that these transitions are smooth and free of electrical interference.
Types of Selector Switches in Printing
In the world of DTF and UV printing, these switches come in various configurations. The most common is the two-position or three-position rotary Selector Switch. Some models are used to switch between manual and automatic cleaning cycles. Others might control the direction of a vacuum bed or the speed of a conveyor system. Choosing the right type for your specific hardware is vital for maintaining accurate control over your production line.
Precision Engineering and Tactile Feedback
A professional Selector Switch is built to withstand the rigors of a high-volume print shop. The internal contacts are usually made from high-conductivity materials like silver or copper. These materials ensure that the electrical signal is transmitted without loss or heat buildup. The switch also provides clear tactile feedback when turned. This "click" tells the operator that the machine has successfully engaged the new setting, preventing halfway connections.
Safety and Mode Isolation
Safety is a primary reason for using a dedicated Selector Switch instead of software controls. It provides a physical "lockout" that prevents the machine from entering a dangerous mode accidentally. For example, a switch can isolate the UV lamps while the operator is performing printhead maintenance. This mechanical isolation protects both the user and the sensitive Supplies inside the printer. It is a fundamental layer of protection in any industrial environment.
Identifying a Faulty Selector Switch
Like all mechanical parts, a Selector Switch can wear out over time due to constant use. You might notice that the machine fails to change modes when the switch is turned. Sometimes, the switch may feel loose or fail to "lock" into a specific position. If you have to wiggle the switch to get a response, the internal contacts are likely oxidized. Replacing a failing switch early prevents intermittent errors that can ruin expensive UV DTF Transfers.
Installation: Wiring and Compatibility
Replacing a Selector Switch requires attention to the wiring diagram of your specific printer. Most switches use standardized terminal blocks or spade connectors for easy installation. It is important to match the voltage and amperage rating of the original part. Using a switch with an insufficient rating can lead to overheating and potential fire hazards. Always ensure the mounting diameter matches the existing hole in your printer’s control panel for a secure fit.
Protecting Your Control Panel from Debris
Print shops can be dusty environments, especially when working with DTF adhesive powders. Fine dust can enter the housing of the Selector Switch and interfere with the internal springs. Some high-end switches come with protective rubber gaskets or "O-rings" to seal out contaminants. If your switch is exposed, regular cleaning with dry compressed air is a good maintenance habit. Keeping the control interface clean ensures that the mechanical parts move freely without sticking.
The Role in UV-LED System Control
In UV printing systems, the Switch often manages the curing lamp intensity. It may allow the user to choose between low, medium, and high power levels for different materials. This manual control is essential when switching from heat-sensitive plastics to durable metals. Having a dedicated physical switch for this task allows for rapid adjustments during a live print job. It gives the operator total control over how the ink cures on the substrate.
Durability in Industrial Environments
Industrial-grade switches are tested for thousands of rotations to ensure long-term reliability. They are manufactured from flame-retardant plastics and heavy-duty metals. This durability is what separates professional hardware from consumer-grade alternatives. Investing in a high-quality Switch means fewer repairs and less downtime for your business. It is a small component that plays a massive role in the overall uptime of your production facility.
Troubleshooting Logical Errors
If your printer is behaving erratically, the Switch is a good place to start your investigation. Use a multimeter to check for continuity in each position of the switch. If the resistance is high or inconsistent, the switch is defective and needs replacement. Many "logic errors" reported by the printer's software are actually caused by a mechanical failure in the selector. Troubleshooting the hardware first can save you from unnecessary and expensive software repairs.
Conclusion: Reliable Control for Better Output
The Switch is the command center for your printer's various functions. It provides the tactile and mechanical reliability needed for complex industrial tasks. By choosing high-quality switches and performing regular maintenance, you ensure your machine stays responsive. A well-functioning control system leads to a smoother workflow and a more professional printing experience. Control your production with confidence by using the best components available.
