The Eyes of Automation: The Essential Role of the Photoelectric Switch

In the industrial landscape of 2026, the demand for speed and precision in printing has reached an all-time high. To maintain a competitive edge in the "Ready-to-Press" market, machines must think and react faster than ever. The Photoelectric Switch is the specialized sensor that makes this possible. Acting as the "digital eyes" of your equipment, this component ensures that every movement is synchronized. From film feeding to safety stops, it is the invisible guardian of your production line.

What is a Photoelectric Switch?

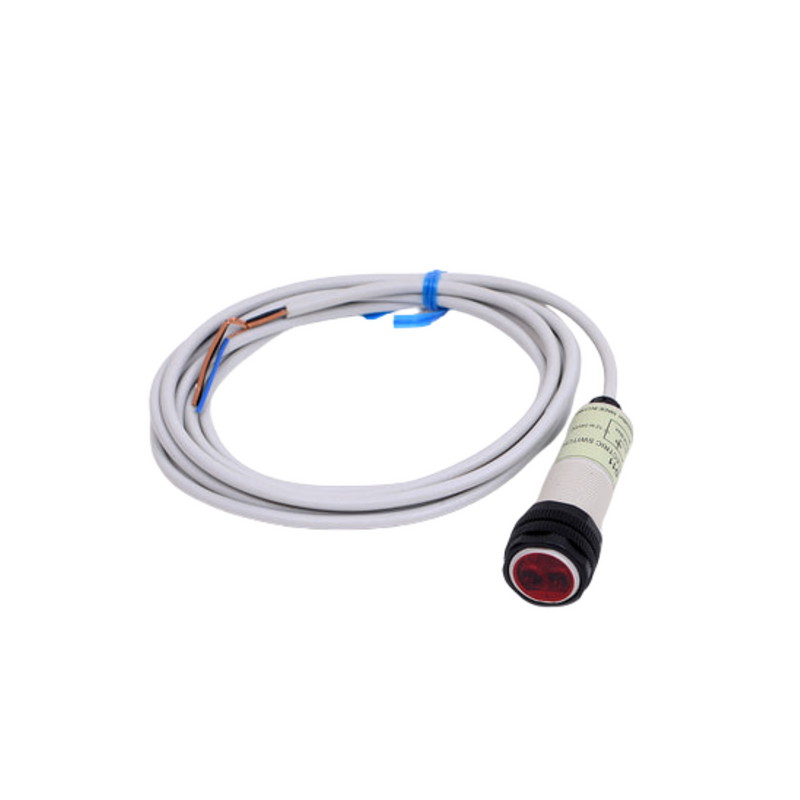

A Photoelectric Switch is a sensor that uses a beam of light to detect the presence or absence of an object. Unlike mechanical switches that require physical contact, these sensors work at a distance. They convert light energy into an electrical signal, which is then sent to the printer’s controller. This contactless operation makes them ideal for delicate materials like PET film, which can be easily scratched or distorted.

Key Technical Components:

• Light Emitter: Usually an LED that sends out an infrared or visible light beam.

• Receiver: A photodiode or phototransistor that "sees" the incoming light.

• Signal Converter: Translates the light intensity into an ON/OFF electrical signal.

• Sensitivity Dial: Allows the operator to fine-tune the sensor for different material densities.

Why It is Vital for DTF and Industrial Printing

In a high-speed printing environment, the margin for error is measured in millimeters. The Photoelectric Switch manages the critical transition points in the workflow. If a film roll runs out or a carriage goes off-course, the sensor reacts in milliseconds to prevent a disaster.

The Benefits of Optical Sensing:

1. Zero-Contact Detection: Prevents damage to the "wet" side of a print.

2. High-Speed Response: Can trigger a stop faster than any human operator.

3. Versatility: Works with a wide range of materials, including opaque, translucent, and matte films.

4. Hardware Safety: Protects the Printhead by detecting obstacles before a collision occurs.

The Three Main Types of Photoelectric Switches

Depending on your machinery's design, different sensing methods are used. In 2026, most industrial printers utilize one of the following three technologies:

• Through-Beam Sensors: The emitter and receiver are in separate housings. They face each other, and the object is detected when it "breaks" the beam. These are the most accurate for long distances.

• Retro-Reflective Sensors: The emitter and receiver are in one unit. A separate reflector plate is placed on the opposite side. This is a great space-saving solution.

• Diffuse-Reflective Sensors: These detect the light bouncing directly off the object. The E18-D30NA is a prime example of this technology, often used to monitor film loops.

Managing the "U-Loop" in Film Feeding

One of the most common uses for a Photoelectric Switch is managing the film tension. Between the roll feeder and the printer, the film hangs in a "U-shape."

The Process:

• As the printer consumes film, the loop rises.

• The Photoelectric Switch detects that the light beam is no longer blocked.

• It signals the Stepper Motor on the feeder to release more film.

• Once the loop drops and blocks the beam again, the feeder stops.

• This ensures the printer never has to "tug" on a heavy roll, preventing banding and stretching.

Troubleshooting: Common Challenges in 2026

Even the most advanced sensors face challenges in a busy shop environment. Because these switches rely on optics, they must be kept in peak condition to avoid false triggers.

Common Issues to Watch For:

• Ink Mist Interference: Airborne ink can settle on the lens, causing the sensor to think an object is always there.

• Static Electricity: High static from PET film can attract dust to the sensor. Use a Round Magnetic Ring to shield nearby cables from electromagnetic noise.

• Ambient Light Pollution: Bright shop lights can sometimes "drown out" the sensor's infrared beam.

• Vibration Shift: If the sensor's mounting bracket is loose, it may lose alignment with its target or reflector.

Maintenance Checklist for Maximum Uptime

To ensure your production of DTF Transfers Ready-to-Press never stops, include the following steps in your weekly maintenance:

• Lens Cleaning: Use a soft, dry cloth or an air duster to keep the optical path clear.

• Sensitivity Calibration: When switching film brands, always test if the sensor still triggers reliably.

• Cable Inspection: Ensure the sensor’s wiring isn't pinched or strained by moving parts.

• Power Verification: Check the Switched IEC Socket and mainboard connections to ensure the sensor is receiving stable voltage.

Integrating Sensors with Safety Systems

In 2026, safety and productivity go hand-in-hand. The Photoelectric Switch is often the first line of defense in a printer's anti-collision system. By detecting a "buckled" film or a misplaced tool on the print bed, the sensor can trigger an emergency stop. This prevents the carriage from striking the object, saving you from a multi-thousand-dollar printhead replacement.

Conclusion: Small Part, Massive Intelligence

The Photoelectric Switch is the unsung hero of the modern print shop. It provides the real-time data needed to keep your hardware safe and your workflow smooth. By investing in high-quality sensors and keeping them well-maintained, you ensure that your business remains a leader in the 2026 industrial market.
