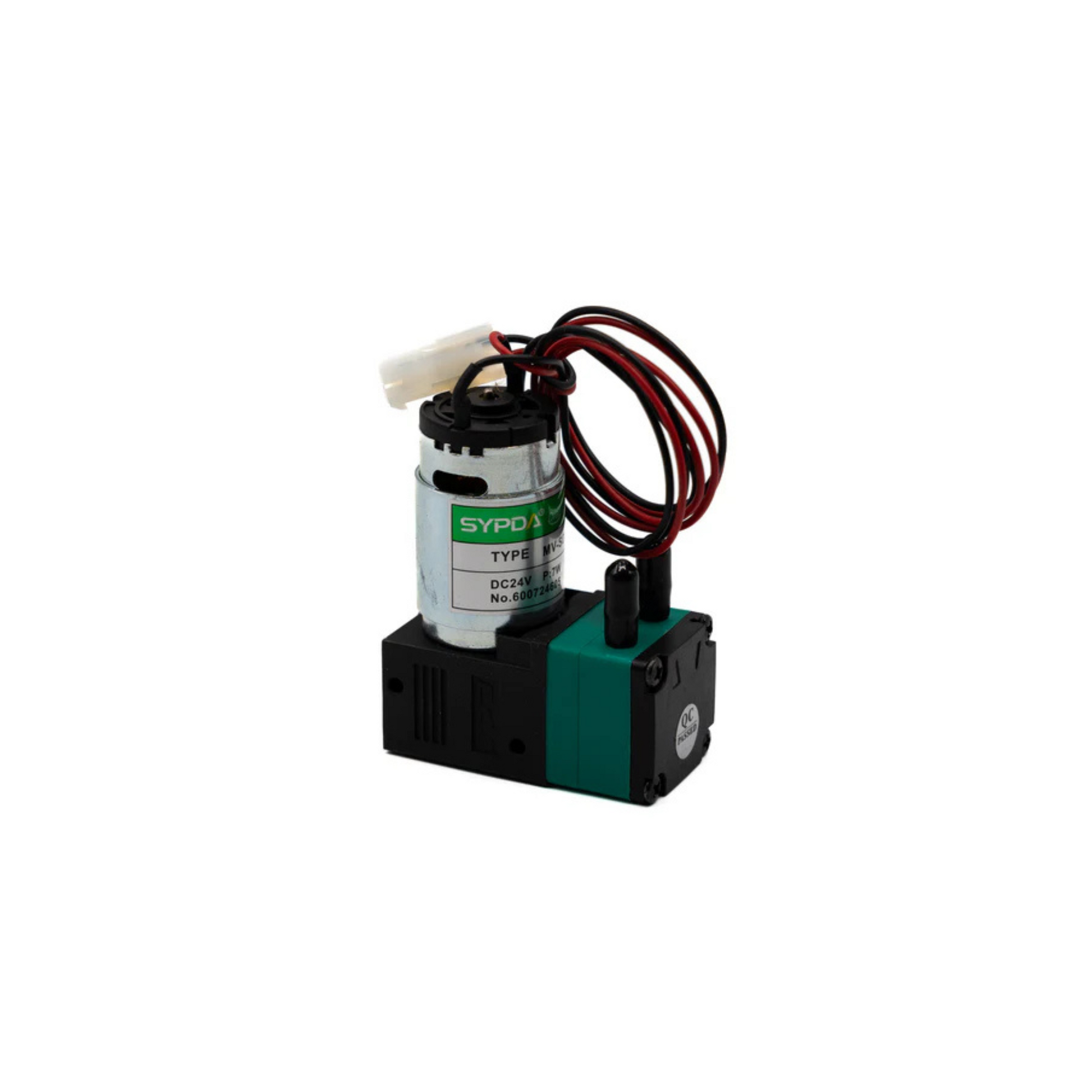

Ink Suction Pump

The Heart of Digital Printing: Ink Suction Pump

Consistency and quality are the two most important factors in digital printing. The Ink Suction Pump is the most critical component that ensures this continuity. This small but powerful part protects the health of the printhead. It ensures that the ink moves correctly through the system. It plays a vital role especially in DTF, UV, and eco-solvent printers. In this guide, we will examine how a suction pump works and why it requires regular maintenance.

What is an Ink Suction Pump and How Does It Work?

The Ink Suction Pump is a mechanism connected to the printer's cleaning unit (capping station). Its main task is to pull ink from the nozzles in the printhead. This process usually happens through a peristaltic movement. Rollers inside the pump compress the flexible tube to create a vacuum.

This vacuum removes air bubbles inside the head. It also cleans ink residues that are about to dry. When the pump fails, the printhead begins to clog. This leads to poor print quality and expensive head replacements. The Ink Suction Pump acts like a vacuum cleaner that keeps the system clean.

Cleaning Cycles Protecting the Printhead

Digital printers perform a cleaning cycle at every startup and at specific intervals. The Ink Suction Pump sits at the center of these cycles. The pump creates a seal by pressing against the gasket in the capping unit. Then, it sends the ink to the waste tank with a strong suction.

This process ensures that the nozzles always stay wet. If the pump cannot pull with enough strength, ink accumulates on the head. Accumulated ink dries when it comes into contact with air. Dried ink damages the nozzle plate. A high-quality suction pump completely eliminates these risks. It directly extends the life of your machine.

Critical Importance in DTF and UV Printing

DTF (Direct to Film) and UV printing technologies use highly pigmented inks. White ink, in particular, contains heavy titanium dioxide. This substance is very prone to settling and clogging. Therefore, the Ink Suction Pump is under extra load in these machines.

White ink has a higher viscosity. The pump must be durable enough to pull this density. A weak pump cannot discharge the white ink from the system. This causes the white channels to clog completely. For DTF users, pump performance determines the daily production capacity. Strong suction means vibrant colors and uninterrupted white layers.

What Are the Signs of Pump Failure?

There are ways to understand if there is a problem with your machine. If the nozzle tests still come out empty after a cleaning cycle, the pump is suspicious. If no ink comes from the waste ink tube, vacuum is not forming.

Abnormal noises from the pump are also a sign. Cracking of the tube inside or wear of the rollers causes these sounds. When the Ink Suction Pump does not work properly, ink overflow is seen in the capping unit. You must act fast when you notice these signs. Continuing to print with a faulty pump can burn the printhead. Early intervention saves you from big expenses.

Chemical Resistance and Material Quality

Printing inks and cleaning solutions are aggressive chemicals. Standard plastics deform quickly when they touch these substances. For this reason, special materials are used in the production of the Ink Suction Pump.

The pump tube is usually made of corrosion-resistant silicone or special rubber. The body part is produced from hard plastics resistant to solvents. A high-quality pump does not lose its flexibility even if it contacts chemicals. A tube that loses its flexibility loses its vacuum power. This causes the system to work inefficiently. Paying attention to material quality when choosing a part is critical.

Maintenance Tips for Efficient Vacuum

It is possible to extend the life of the Ink Suction Pump with simple but effective steps. Check the waste tubes once a week. If sediment has accumulated in the tube, wash it with cleaning solution.

Keep the moving parts inside the pump free from dust. Make sure the gasket in the capping station is clean. A leaking gasket prevents the pump from creating a vacuum. Performing a head cleaning at the end of the daily shift keeps the pump fresh. These small routines keep the pump performance at its peak. A well-maintained pump means a trouble-free production line.

Installation and Replacement Process

Replacing your old pump with a new one requires some technical skill. First, cut the power to the machine. Then, carefully disconnect the inlet and outlet tubes. When mounting the new unit, make sure the tubes are not bent.

Bent tubes prevent flow and put a load on the pump. Always perform a manual cleaning cycle after installation. Observe if ink goes to the waste tank. If the flow is normal, the process is successful. Correct installation ensures the pump works at full capacity. Do not forget to check if there is any leakage.

Energy Efficiency and Quiet Operation

New generation Ink Suction Pump models work more quietly. The high noise from old pumps disturbs the working environment. Thanks to advanced motor technology, these pumps consume less energy.

Low energy consumption reduces operating costs in the long run. Also, motors that heat up less allow for longer working times. Quiet operation increases the comfort of the operator. In industrial machines, this comfort is reflected in production quality. A modern pump investment provides advantages in every aspect. Technological updates are the key to efficiency.

Why Choose Original and Compatible Parts?

There are many cheap pump options on the market. However, cutting costs in choosing an is a big risk. Non-original parts usually create a weak vacuum.

This weakness leads to the printhead not being fully cleaned. As a result, you might lose a printhead worth thousands of dollars while trying to save a few. Compatible and high-quality parts work in sync with your machine's software. Correct voltage and current values protect the life of the motor. A pump purchased from a reliable supplier guarantees the continuity of your business. Quality is the foundation of professionalism.

Conclusion: The Right Choice for Smooth Printing

The is the silent hero of your digital printing machine. It manages the ink flow and protects the printhead. A correctly working pump means vibrant colors and sharp details.

Do not neglect the maintenance of your machine and check your pump regularly. Do not ignore the signs of failure. Secure your production line with a high-quality spare part. Always choose the best equipment for professional printing results. Remember, with a good pump, your machine always works like the first day.
