Hydraulic Check Valve

Ensuring System Integrity with the High-Performance Hydraulic Check Valve

In any complex fluid power system, controlling the direction of flow is a fundamental requirement. A Hydraulic Check Valve is a critical safety and functional component designed to allow fluid to flow in one direction while preventing backflow. Often referred to as a "non-return valve," it acts as a mechanical gatekeeper within the circuit. This prevents the loss of pressure and protects sensitive components like pumps and motors from reverse surges. Whether in industrial manufacturing or mobile construction equipment, these valves ensure that energy is directed exactly where it is needed. This guide explains the technical importance and operational benefits of integrating high-quality check valves into your hydraulic systems.

The Fundamental Principle of One-Way Flow

The primary function of a Hydraulic Check Valve is to provide a reliable seal against reverse flow. It operates based on a pressure differential between the inlet and the outlet of the valve.

When the pressure at the inlet exceeds the "cracking pressure," the internal mechanism opens. This allows the hydraulic oil to pass through to the rest of the system. However, as soon as the pressure on the outlet side becomes higher, the valve closes instantly. This "automatic" operation does not require external handles or electrical signals. It is a purely mechanical solution that provides fail-safe protection for the entire hydraulic circuit.

Protecting the Hydraulic Pump from Pressure Surges

The pump is the heart of any hydraulic system and is often the most expensive component to replace. A Hydraulic Check Valve is frequently installed directly at the pump's outlet to shield it from back-pressure.

If a heavy load is suddenly stopped, the resulting pressure spike can travel backward toward the pump. Without a check valve, this energy can cause the pump to spin in reverse or suffer internal mechanical failure. By installing a one-way valve, you ensure that the pump only experiences the pressure it is designed to generate. This simple addition significantly extends the lifespan of your hydraulic power unit. It is an essential layer of defense for high-value industrial machinery.

Maintaining System Pressure and Load Holding

In many applications, such as hydraulic lifts or stabilizers, maintaining a position is vital. A Hydraulic Check Valve ensures that fluid remains trapped in a specific part of the circuit even when the pump is turned off.

This "load-holding" capability prevents cylinders from drifting or dropping unexpectedly under the weight of a load. In these scenarios, a specialized version called a "pilot-operated check valve" is often used. This allows the valve to stay closed until a specific pilot signal is received to release the fluid. This ensures that the machinery stays locked in place, providing safety for both operators and equipment. Reliability in pressure maintenance is the hallmark of a well-engineered hydraulic system.

Understanding Cracking Pressure and Flow Capacity

When selecting a Hydraulic Check Valve, "cracking pressure" is the most important technical specification. This is the minimum amount of pressure required to overcome the internal spring and open the valve.

Check valves are available with various cracking pressures, ranging from 1 bar to over 5 bars. Choosing the correct rating ensures that the valve does not cause unnecessary energy loss during normal operation. Additionally, the valve must be sized to handle the maximum flow rate (GPM or LPM) of the system. If the valve is too small, it will create a "bottleneck," leading to excessive heat and reduced efficiency. Matching the valve to your system's flow dynamics is key to optimal performance.

Durable Construction for High-Pressure Environments

Hydraulic systems often operate at thousands of pounds per square inch (PSI). A Hydraulic Check Valve must be constructed from high-strength materials like carbon steel, stainless steel, or brass.

The internal components, such as the poppet or ball, are precision-ground to ensure a leak-proof seal. Hardened steel seats are used to prevent wear from the constant opening and closing cycles. High-quality O-rings and seals are also integrated to prevent external leaks at the connection points. These robust materials allow the valve to survive in harsh environments, including those with extreme temperatures and vibrations. A durable valve reduces the frequency of maintenance and the risk of sudden system failure.

Inline vs. Manifold-Mount Configurations

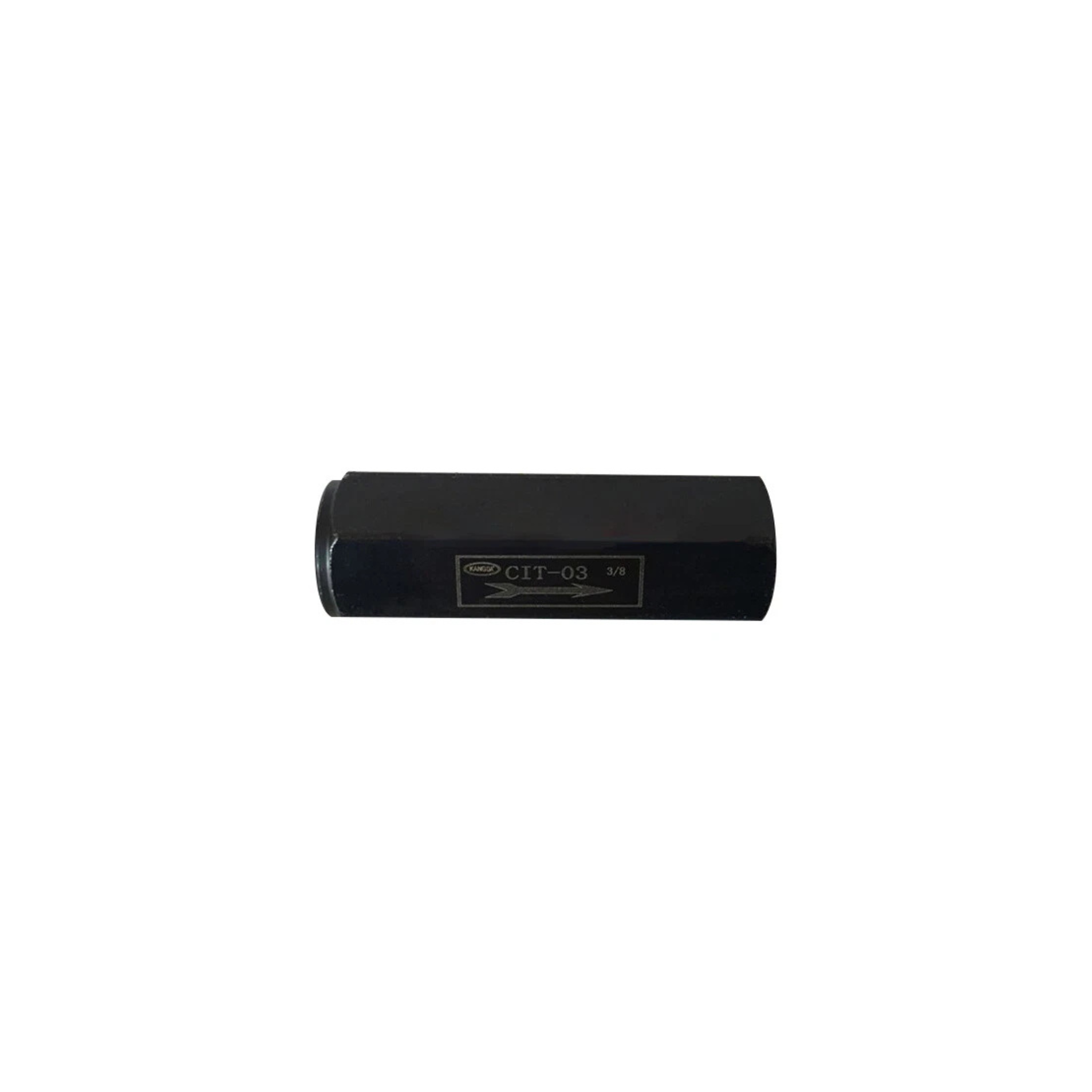

Check valves come in various physical designs to suit different installation needs. The Hydraulic Check Valve can be found in "inline" configurations, which are threaded directly into the hydraulic hoses.

Alternatively, manifold-mount or "cartridge" style valves are used in more compact, integrated systems. Inline valves are ideal for retrofitting existing machinery or making quick repairs in the field. Cartridge valves are preferred for modern, high-density hydraulic manifolds where space is limited. Both styles offer the same reliable one-way flow control but cater to different engineering requirements. Having both options allows for greater flexibility in system design and troubleshooting.

Reducing Noise and Vibration in the Circuit

Unexpected fluid reversals can cause a phenomenon known as "hydraulic shock" or "water hammer." This creates loud knocking noises and damaging vibrations throughout the metal pipes.

A Hydraulic Check Valve helps to dampen these surges by preventing the fluid from oscillating back and forth. By keeping the flow unidirectional, the valve contributes to a much smoother and quieter operation. This is particularly important in precision machinery where vibration can affect the accuracy of the work. Reducing mechanical stress also prevents the loosening of fittings and the premature wear of seals. A quiet hydraulic system is often a sign of a healthy, well-protected circuit.

Versatility Across Industrial Applications

The use of a Hydraulic Check Valve extends across almost every industry that utilizes fluid power. In agriculture, they are used to hold the position of heavy tractor implements.

In manufacturing, they protect the hydraulic presses used for stamping and molding metal parts. They are also vital in the aerospace and automotive sectors for braking and steering systems. Any circuit that requires the separation of two different pressure zones will utilize at least one check valve. Their simplicity and reliability make them one of the most versatile components in fluid mechanics. No matter the scale of the project, these valves are the unsung heroes of directional control.

Installation and Maintenance Best Practices

Correct installation is the key to the success of a Hydraulic Check Valve. The valve body is always marked with an arrow indicating the permitted direction of flow.

Installing the valve backward will completely block the circuit and can lead to immediate pump damage. During routine maintenance, it is important to inspect the valve for internal debris or "sludging." If a piece of metal or dirt gets caught in the seat, the valve will "leak" in the reverse direction. Regularly flushing the hydraulic oil and replacing filters helps keep these valves functioning perfectly. A clean system ensures that the check valve can provide a 100% airtight seal when closed.

Conclusion: A Small Component with Critical Responsibility

The is a fundamental building block of safe and efficient fluid power systems. It provides the essential one-way logic that protects pumps, maintains loads, and prevents damaging pressure surges.

By choosing high-quality, properly rated valves, you are investing in the long-term reliability of your machinery. These valves offer a fail-safe mechanical solution that operates without the need for complex electronics. Whether you are building a new hydraulic unit or repairing an old one, never underestimate the importance of the check valve. Protect your investment and ensure operational safety by using the right directional control for your system.
