Stepper Motor Driver

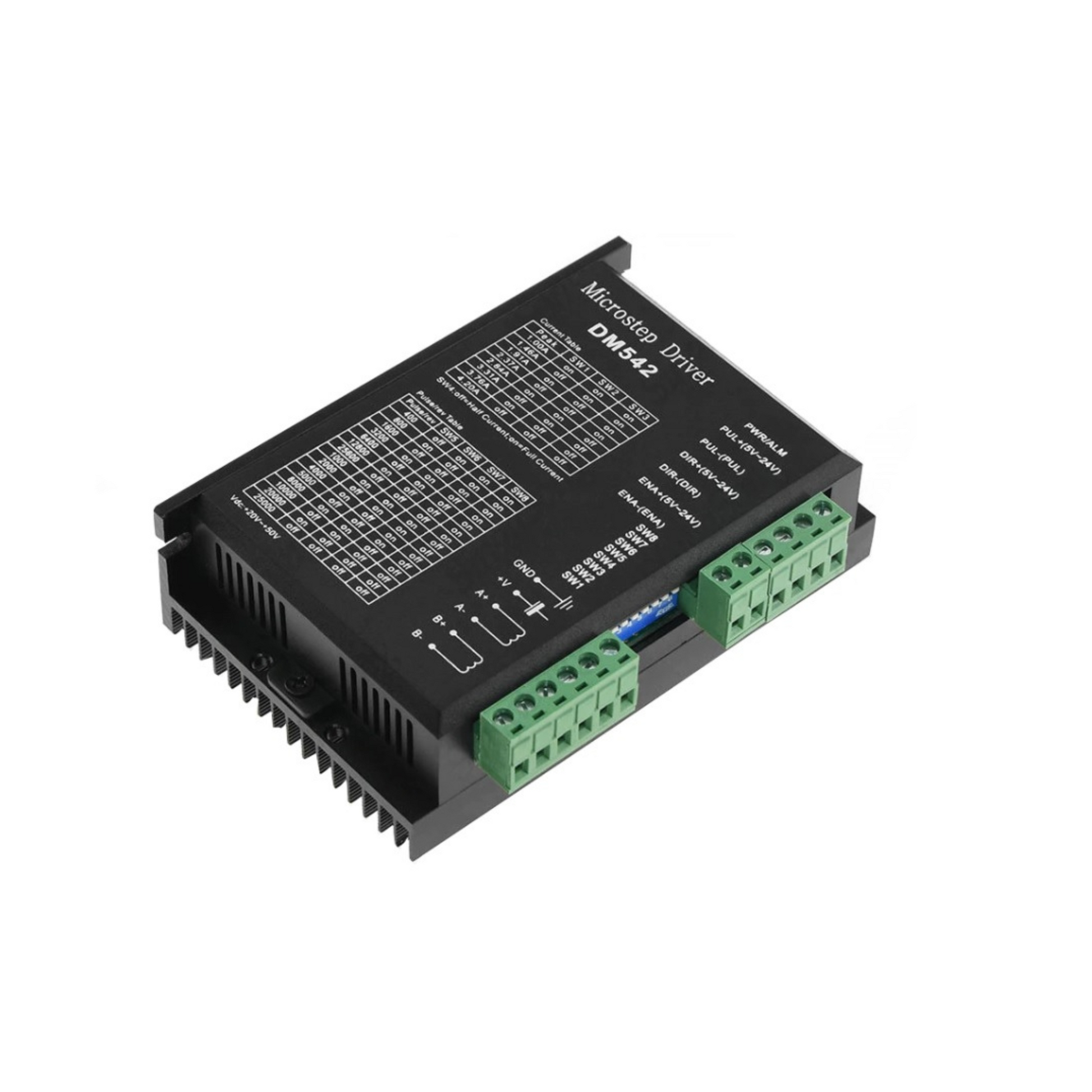

Stepper Motor Driver - DM542V2.0: High-Performance Solution for Precise Control

A stepper motor driver is a crucial component for controlling stepper motors across various applications like robotics, 3D printing, CNC machines, and automation systems. It enables precise motor movement and accurate positioning, making it ideal for systems requiring fine control.

What is a Stepper Motor Driver?

A stepper motor driver is an electronic device that regulates the rotation of a stepper motor by providing the necessary current to its coils. The driver converts digital pulses into movement, making it suitable for applications where precise control of position and speed is needed.

How Does a Work?

The receives input from a microcontroller, sending pulses to the motor to rotate in fixed increments. The driver controls the current to the motor’s coils, enabling precise movement. Common control methods include:

• Full-Step Mode: One pulse equals one full step.

• Half-Step Mode: Combines full and intermediate steps for better precision.

• Microstepping Mode: Divides full steps into smaller increments for ultra-smooth motion.

Key Benefits of Using

• Precise Control: Ensures accurate motor positioning in both angular and linear motion, ideal for applications like robotics and CNC machines.

• High Torque at Low Speeds: Provides strong torque even at low speeds, making it suitable for low-speed applications like automated machinery.

• Enhanced Positioning Accuracy: Stepper motors allow for precise movements, making them essential for industries that require high accuracy.

• Cost-Effective Solution: Offers excellent performance without the high costs of servo motors, making it affordable for various applications.

• Reliability and Durability: Stepper motors and drivers offer long-lasting performance, minimizing downtime and repair costs.

Types of

• Unipolar Stepper Motor Drivers: Suitable for unipolar motors, offering simplified wiring at the cost of some performance.

• Bipolar Stepper Motor Drivers: Used with bipolar motors for higher torque and efficiency, ideal for advanced applications.

• Microstepping Drivers: Provide finer control by subdividing steps, offering smoother motion for high-precision tasks like 3D printing.

Common Applications of

• 3D Printing: Controls the movement of the print bed and head for precise prints.

• CNC Machines: Ensures accurate cuts, milling, and engraving in CNC applications.

• Robotics: Vital for precise movements in robotic arms and automated systems.

• Automated Equipment: Used in assembly, testing, and packaging processes to ensure reliability.

Choosing the Right

When selecting a stepper motor driver, consider the motor’s voltage and current needs, the application’s precision requirements, and whether microstepping is necessary for smoother motion. Ensure compatibility with your controller and check for features like thermal protection and adjustable current limits.

Conclusion

In any application that requires accurate motor movement, having the right motor control is crucial. From complex robotic systems to 3D printing, CNC machining, and automation processes, a high-quality motor controller ensures your system functions smoothly and efficiently. The right controller provides the ability to make precise adjustments, ensuring that every movement is calculated with great accuracy. This control plays a key role in reducing errors, enhancing product quality, and optimizing overall system performance.

When working with tasks that require fine-tuned movement, it's essential to focus on the quality of the motor control system. The right controller can significantly impact the accuracy and reliability of your projects. This is especially true for tasks that demand high precision, where even a small deviation in movement can cause substantial issues. The combination of power, control, and flexibility provided by modern motor controllers can ensure that your machinery operates at peak efficiency.

Moreover, these controllers are designed with durability and long-term performance in mind. This means fewer breakdowns, reduced maintenance costs, and increased system uptime. Investing in a reliable control system is, therefore, not just about immediate results, but also about sustaining consistent quality over time.
